Idling speed calibration
(If needed)
NOTE! When calibrating idling speed the Full Throttle
Forwards position on the lever corresponds to maxi-
mum idling speed.
NOTE! D4 and D6 engines only:
Idling speed adjusting can only be done when the
engine temperature is more than 40°C (104°F). When
temperature is below 40°C (104°F) only Warming Up
mode is activated.
1. Activate helm station by pushing the ACTIVE
STATION BUTTON on the EVC panel.
2. Enter calibration mode.
3. Start the engine.

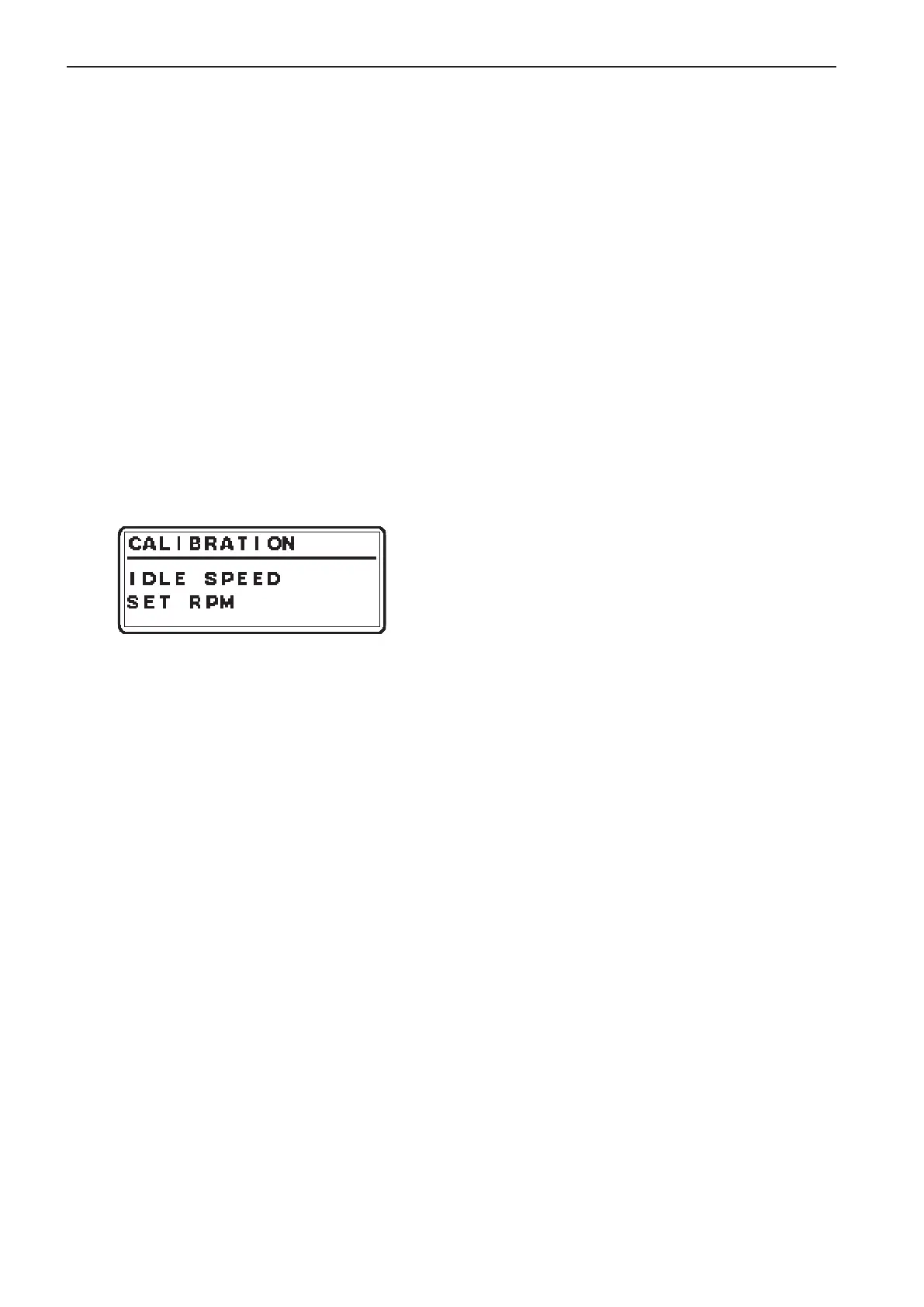

Pop-up in display indicates:
IDLE SPEED SET RPM
4. Adjust the idling speed with the control lever.
Idling speed can be adjusted to a value between:
D4 engines 700–750 rpm
D6 engines 600–650 rpm
D9 engines 500–750 rpm
D12 engines 500–700 rpm (MP),
500–800 rpm (MH)
D16 engines 550–600 rpm
Confirm rpm by pushing the NEUTRAL BUT-
TON.
5. Move lever to neutral position and stop the en-
gine.
Settings, general
NOTE! For all setting procedures:
Activate helm station by pushing the ACTIVE STA-
TION BUTTON on the EVC panel.
