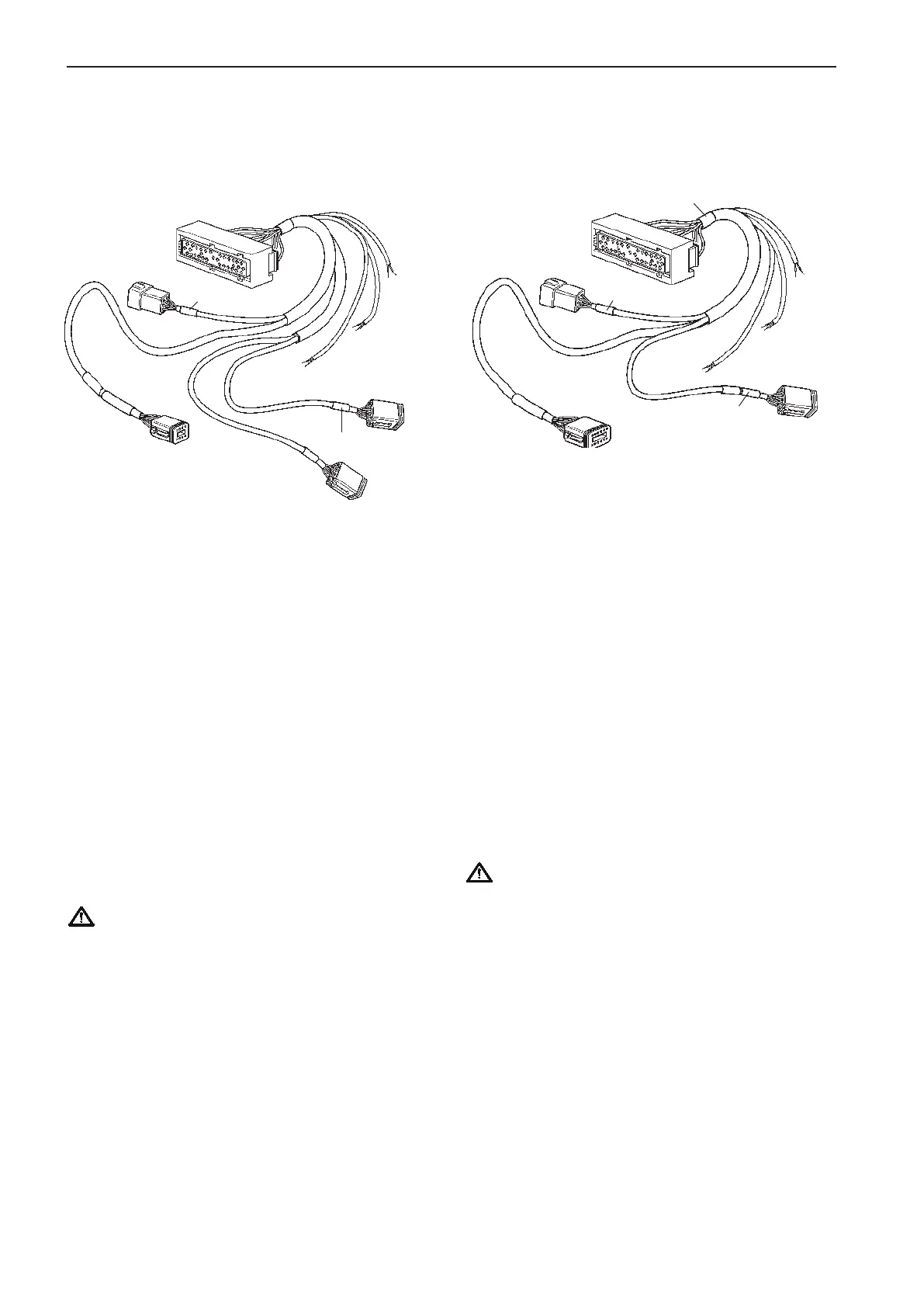

Engine–PCU cable
D4/D6/D9/D12/D16
Inboard engines
This cable harness has connectors to:
- PCU
- engine monitoring system (ENGINE CONN.)
- gear shift solenoids on the reverse gear,
on D9 engines also trolling/slipping valve
(GEARBOX CONN.)
- diagnosis system (DIAGNOSE CONN.)
- fuel level sender (FUEL LEVEL SENDER)
- fresh water level sender (WATER LEVEL
SENDER)
- rudder indicator (RUDDER ANGLE SENDER)
The cable harness is connected to the PCU through
the 29-pin connector (CONN X3).
Connect the cable harness to engine connectors ac-
cording to markings.
Clamp the cable properly to the engine and to the
PCU.
IMPORTANT! Clamp and insulate cables that are
not in use.
GEARBOX
CONN.
ENGINE CONN.
DIAGNOSE CONN.
CONN X3
Pink
WATER
LEVEL
SENDER
(blue)
RUDDER
ANGLE
SENDER
(green)
FUEL LEVEL
SENDER (black)
Engine–PCU cable
D4/D6
Stern drive DPH/DPR
This cable harness has connectors to:
- PCU
- engine monitoring system (ENGINE CONN.)
- DPH/DPR actuator (GEARBOX CONN.)
- powertrim pump (POWERTRIM CONN.)
- diagnosis system (DIAGNOSE CONN.)
- fuel level sender (FUEL LEVEL SENDER)
- fresh water level sender (WATER LEVEL
SENDER)
- rudder indicator (RUDDER ANGLE SENDER)
The cable harness is connected to the PCU through
the 29-pin connector (CONN X3).
Connect the cable harness to engine connectors ac-
cording to markings.
Clamp the cable securely to the engine and to the
PCU.
IMPORTANT! Clamp and insulate cables that
are not in use.
POWERTRIM CONN.
GEARBOX CONN.
(actuator)
CONN X3
Pink
DIAGNOSE CONN.
ENGINE
CONN.
FUEL LEVEL
SENDER (black)
RUDDER
ANGLE
SENDER
(green)
WATER
LEVEL
SENDER
(blue)
36
Installation procedure, engine room EVC-C
