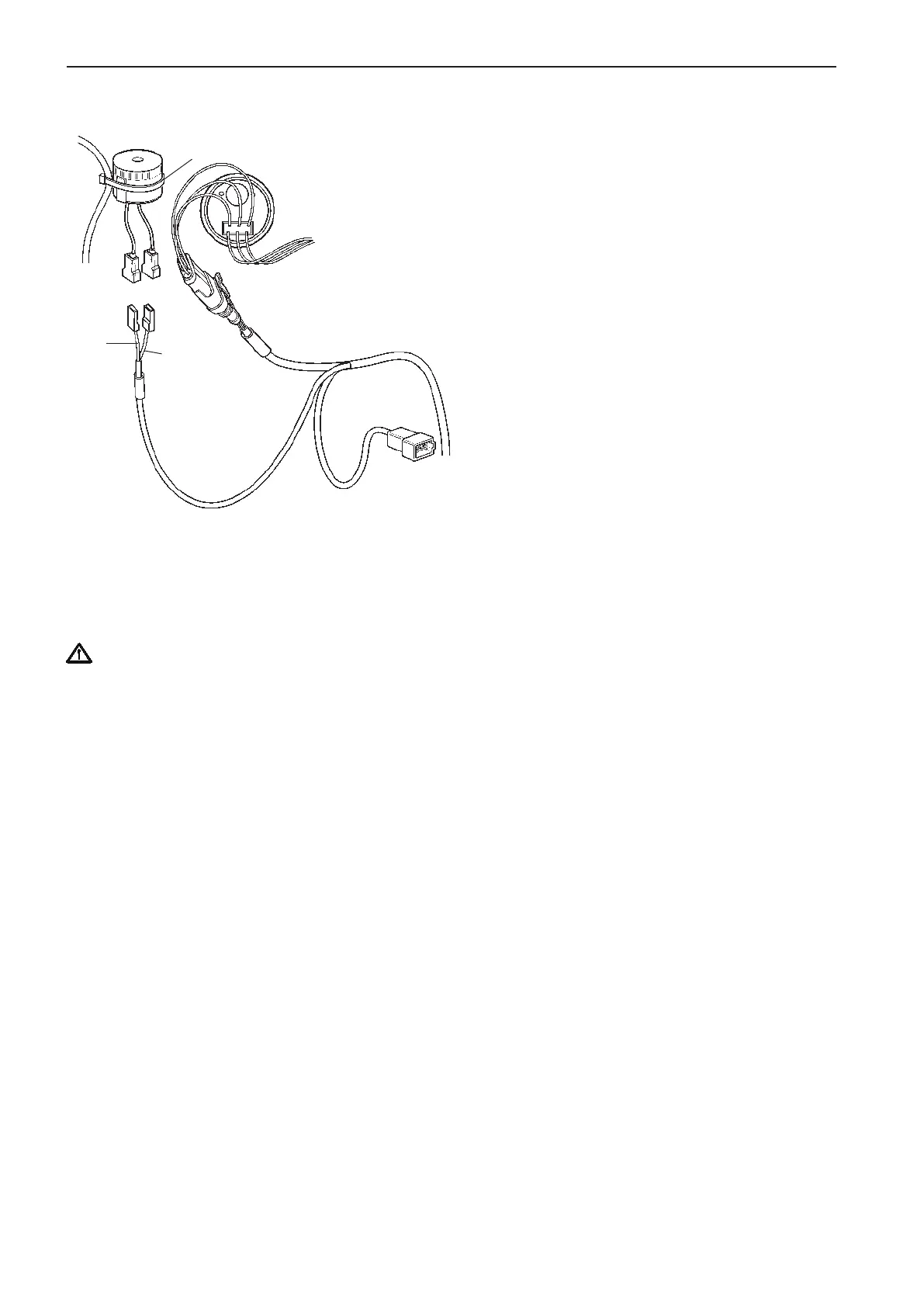

Buzzer (option)
Mount the buzzer under the dash board in an appro-
priate place by using one or two stripes.
Connect the buzzer cables to the connectors marked
BUZZER in the instrument cable harness.
IMPORTANT! Note the pinarity of the buzzer
and buzzer cable: Red/blue to red cable, positive
(+) and black to black cable, negative (–).
BUZZER
Red/blue
(+)
Black
(–)
Stripe
Red
(+)
Black
(–)
GAUGES
60
Installation procedure, helm EVC-C
