Important!
The following special warning symbols are found in
this manual and on the engine.
WARNING! Possible danger of personal injury,
damage to property or mechanical malfunction if
the instructions are not followed.
IMPORTANT! Used to draw your attention to
something that can cause damage to or malfunc-
tion of a product or damage to property.
NOTE! Used to draw your attention to important in-
formation that will facilitate the work or operation in
progress.
A summary is given below of the risks and safety pre-
cautions you must observe or carry out when install-
ing and calibrating the EVC system.
Before carrying out electric arc welding, remove:
- connector from the engine control unit
- 8-pin connector from the PCU.
Safety precautions
Introduction
This Installation Manual contains the information you
will need to install and test the Electronic Vessel Con-
trol (EVC) system.
Read this Installation Manual carefully before instal-
lation. Incorrect installation may result in personal
injury or damage to property or the engine itself.
If you do not understand or are uncertain about any
operation or information in this Installation Manual,
please contact the Volvo Penta organization.
Installation
This Installation Manual is intended for professional
use only.
The Manual must be used in conjunction with the rel-
evant Engine Operator’s Manual.
Volvo Penta will not assume any liability for damage
to materials or personal injury, which may result if the
installation instructions are not followed or if the work
is carried out by non-professional personnel.
The installer is responsible for ensuring that the
system operates in accordance with this Installation
Manual.
Work procedures
These instructions are for use by suitably qualified
personnel, referred to as the installer in these instruc-
tions.
Refer to the specific Engine Operator’s manual for
relevant information where necessary, especially re-
garding safety and engine operation.
The work must be done at Volvo Penta’s service
workshops, boat builders or other authorised and
suitably equipped workshops with personnel who
have the appropriate qualifications and experience.
D4 and D6 engines

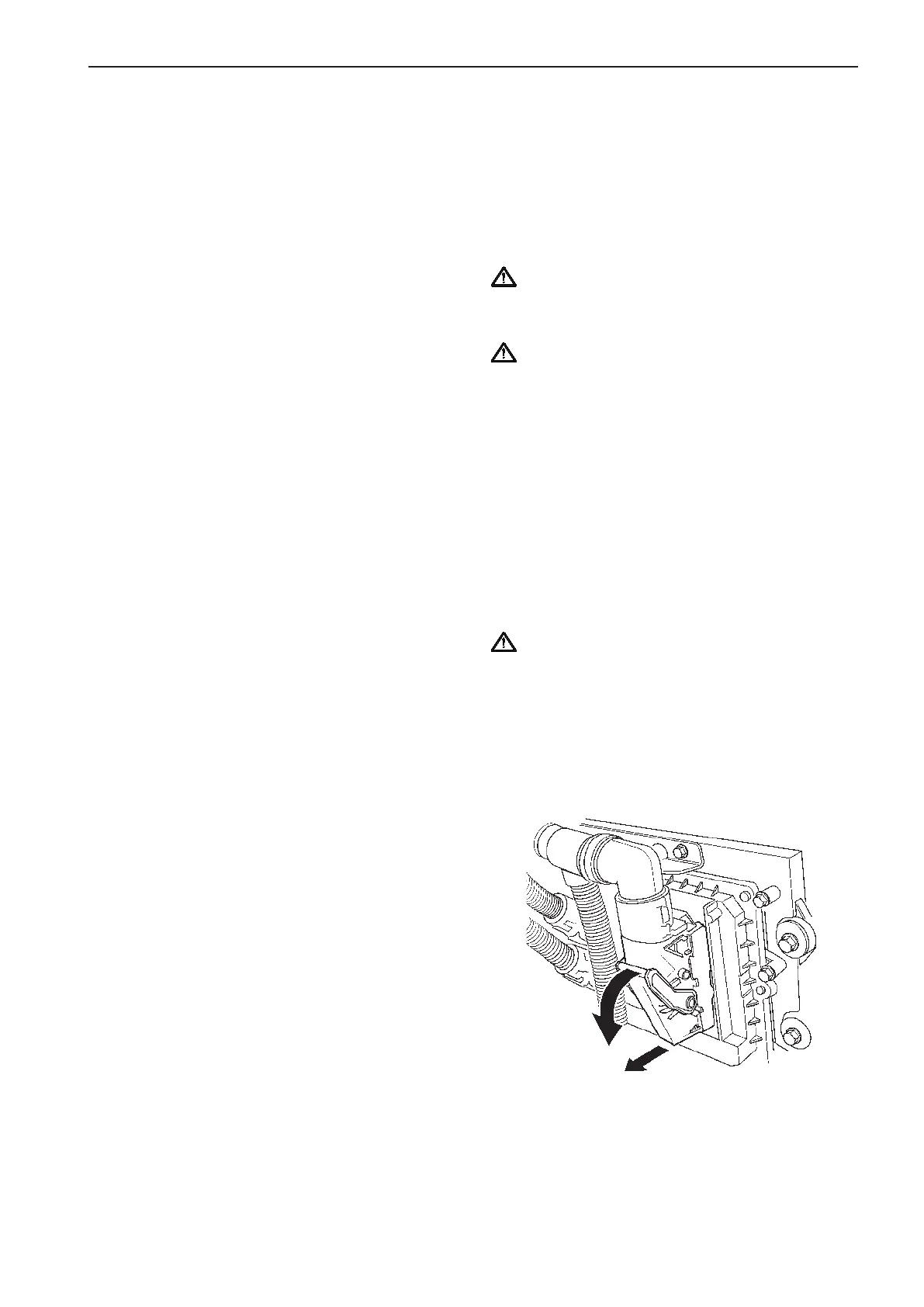

Press the lock tab down and pull the connector out.
Refit the connector to the engine control unit after
disconnecting the welding equipment.
