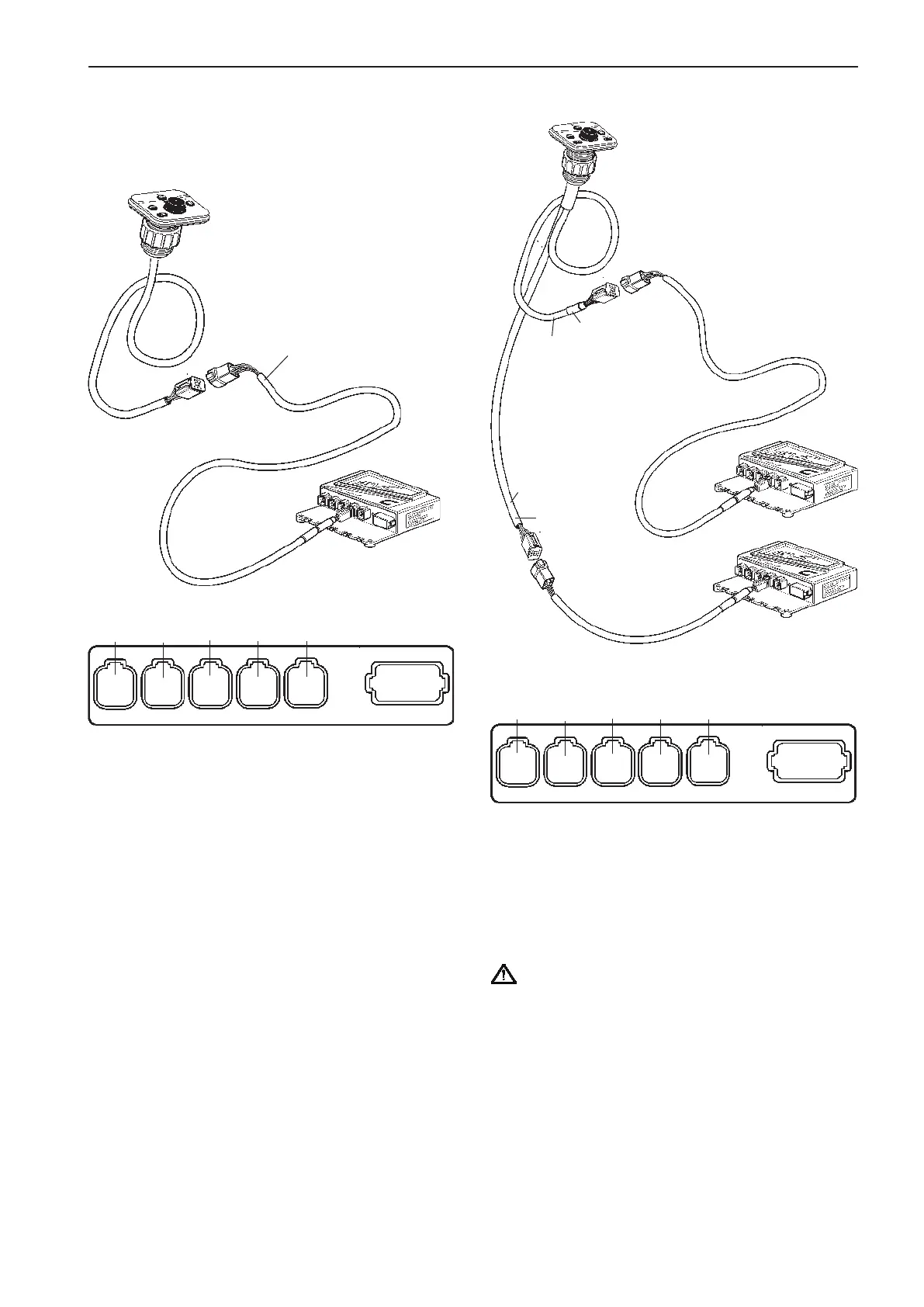

Connection of the
EVC control panel
Single engine panel
Connect the EVC control panel cable to the connec-
tor marked AUXILIARY BUS on the instrument cable
harness. The instrument cable harness in turn, is
connected to X3:AUX (pink) in the HCU.
Connect the EVC control panel cable to the connec-
tor marked AUXILIARY BUS on the instrument cable
harnesses on the HCUs, red colored cable to port
and green colored cable to starboard engines.
The instrument cable harnesses in turn, are connec-
ted to X3:AUX (pink) in the HCUs.
IMPORTANT! Green cable to starboard HCU
and red cable to port HCU.
CONN X3
Pink
AUXILIARY
BUS
AUX. BUS
Twin engine panel
Port
engine
Starboard
engine
CONN X3
Pink
CONN X3
Pink
Green
marking
strip
Red
marking
strip
AUX.
BUS
AUX.
BUS
Extension
cable
Extension
cable
X5:MULTILINKX2:DATALINK X3:AUX
X4:KEY
Green Yellow
Pink
Gray Blue
X7:CONTROLS
X8:NOT USED
X5:MULTILINKX2:DATALINK X3:AUX
X4:KEY
Green Yellow
Pink
Gray Blue
X7:CONTROLS
X8:NOT USED
53
EVC-C Installation procedure, helm
