Volvo Penta EVC EC -C - Page 77

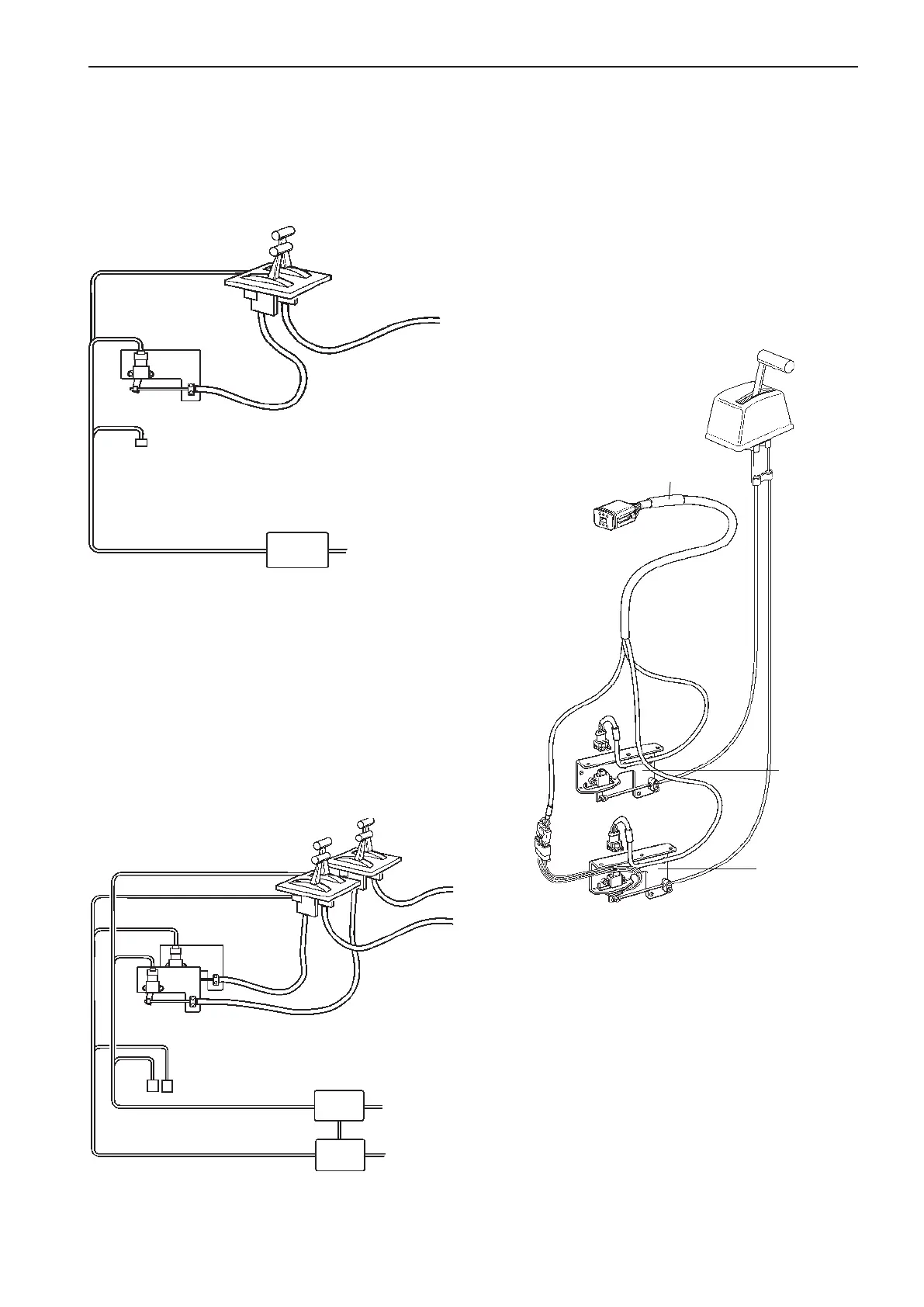

Twin engine installation
Mechanical controls
and mechanical gearshift
NOTE! Neutral position switch must always be used
on main and alternative control stations.
Single installation
Mechanical controls
and mechanical gearshift.
NOTE! Neutral switches must always be used on
main and alternative control stations.
HCU
GEAR POT
not used
THROTTLE POT
One-handle or
two-handle control
NEUTRAL
SWITCH
Reverse
gear
Reverse
gear
Engine 1
Engine 2
THROTTLE POT
NEUTRAL
SWITCHES
One-handle or
two-handle controls
GEAR POT
not used
HCU
HCU
Reverse
gear
Electrically shifted
transmission
In an installation with electrically operated reverse
gear or drive, two adapters per engine are needed on
each control station, one for speed (throttle) and one
for shifting.
Connect the cable marked THROTTLE POT to the
engine speed adapter and the the connector marked
GEAR POT to the gear shifting adapter .
NOTE! The neutral switch connector is connected to
the GEAR POT adapter.
THROTTLE
POT
CONN X7
GEAR POT
NEUTRAL
SWITCH
NOTE! No extensions are allowed to the control lever
cable.
77
EVC-C Installation procedure, helm
