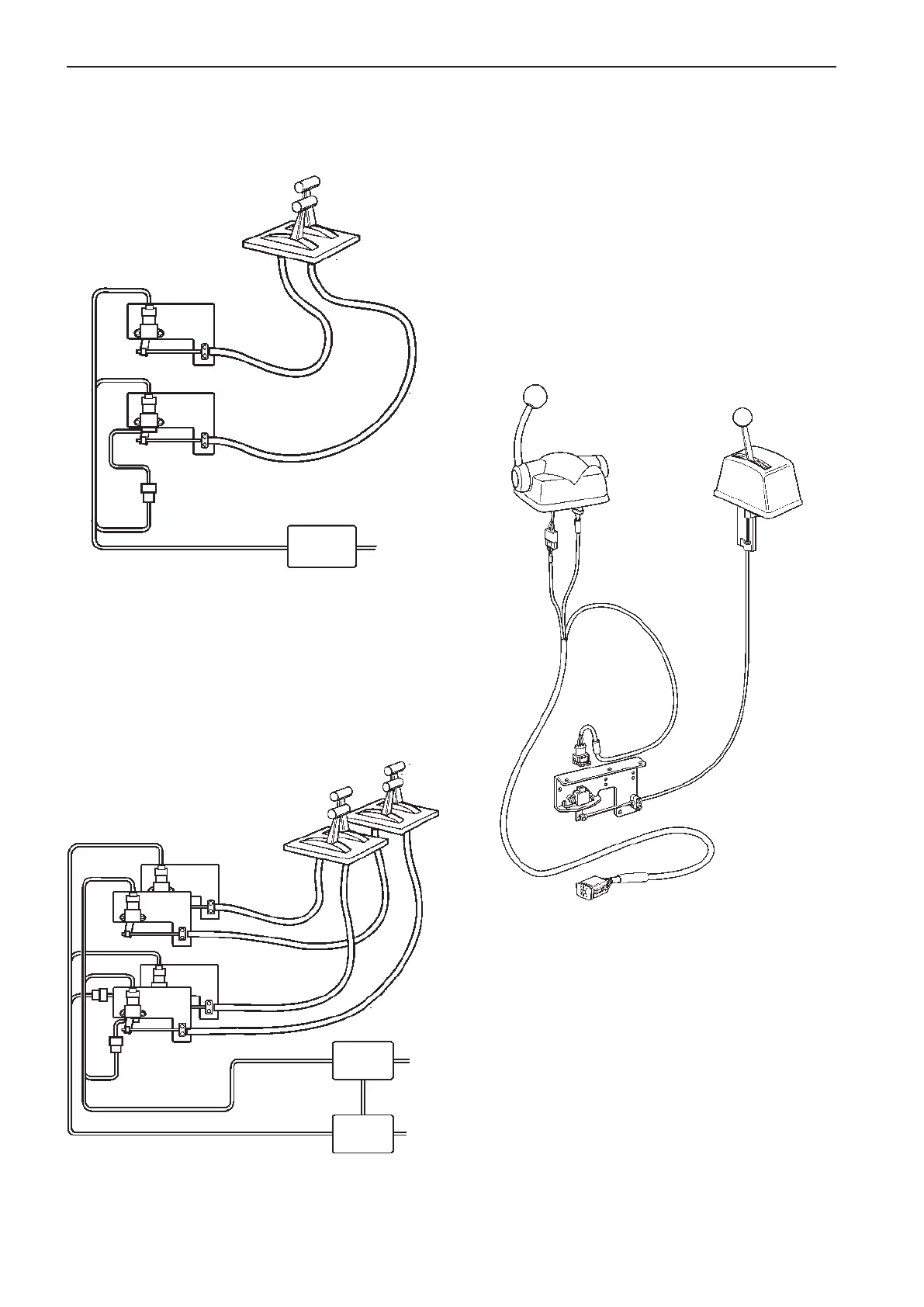

Twin engine installation
Mechanical controls
and electrical gearshift
Single installation
Mechanical controls
and electrical gearshift
THROTTLE POT
NEUTRAL
SWITCHES
One-handle or
two-handle controls
HCU
HCU
Engine 2
Engine 1
GEAR POT
THROTTLE POT
NEUTRAL
SWITCH
GEAR POT
One-handle or
two-handle control
HCU
Mechanical lever for
electrically controlled trolling.
Electrical throttle and gearshift
This installation has a mechanical trolling lever con-
nected to an adapter. The GEAR POT. connector is
connected to the adapter potentiometer.
The THROTTLE POT connector is connected to an
electronic control lever for thottle control and gear
shifting.
The neutral switch is connected to the lever for throt-
tle and gear.
The cable harness is connected to X7 on the HCU.
NOTE! No extensions are allowed to the control lever
cable.
NEUTRAL
SWITCH
CONN X7
THROTTLE
POT
GEAR POT
Trolling lever
78
Installation procedure, helm EVC-C
