Connection of EVC System
Tachometer and other instruments

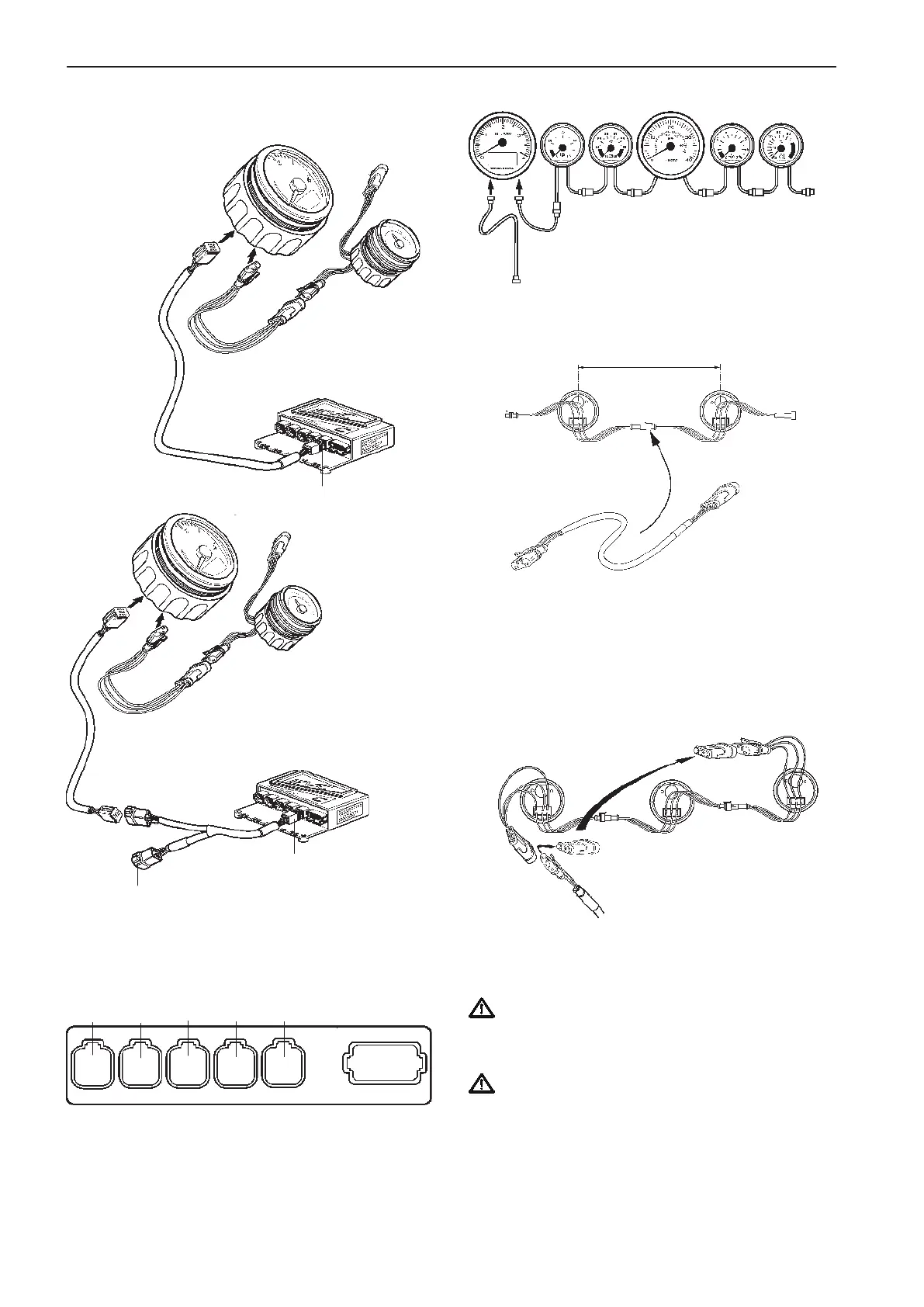

Connect the EVC System Tachometer to the HCU
connection X5 (yellow). Connect directly to X5 using
a multilink/synchronization cable.
Allternatively use a Y-split multilink cable and the
MULTILINK BREAKOUT connection. See figure.
IMPORTANT! Always plug the open end of the
instrument cable to prevent corrosion. Use the
plug attached to the cable harness.
IMPORTANT! Do not install an Y-split cable
without having the MULTILINK BREAKOUT con-
nected.
Connection
tachometer
Protection
plug
Connect the other instruments to the 3-pin EasyLink
connector in the tachometer.
Extension cable, 3-pin
1.0 m (3 ft), 3.0 m (10 ft)
Max. 220 mm (8.6")
(all instruments)
X5 MULTILINK
Multilink/tachometer/
synchronization cable
EVC system tachometer
Protection
plug
Multilink/tachometer/
synchronization
cable, 6-pin
CONN X5
Yellow
3-pin instrument
cable (incl. in the
tachometer kit)
To other instruments
CONN X5
Yellow
MULTILINK
MULTILINK
BREAKOUT
Multilink/tachometer/
synchronization
cable, 6-pin
Connections to:
- Multilink accessories
- Sync. cable (twin installation)
X5:MULTILINKX2:DATALINK X3:AUX
X4:KEY
Green
Yellow
Pink
Gray Blue
X7:CONTROLS
X8:NOT USED
58
Installation procedure, helm EVC-C
