Various installation examples:
- Single installation one display
- Twin installation two displays
- Twin installation one combined display
IMPORTANT! In a twin installation, when using
one combined EVC system display, the display
must be configured as a “TWIN” before auto con-
figuration is performed.
In a twin installation. when using two EVC sys-
tem displays, the displays must be configured as
“PORT” resp. “STARBOARD” before auto con-
figuration is performed.

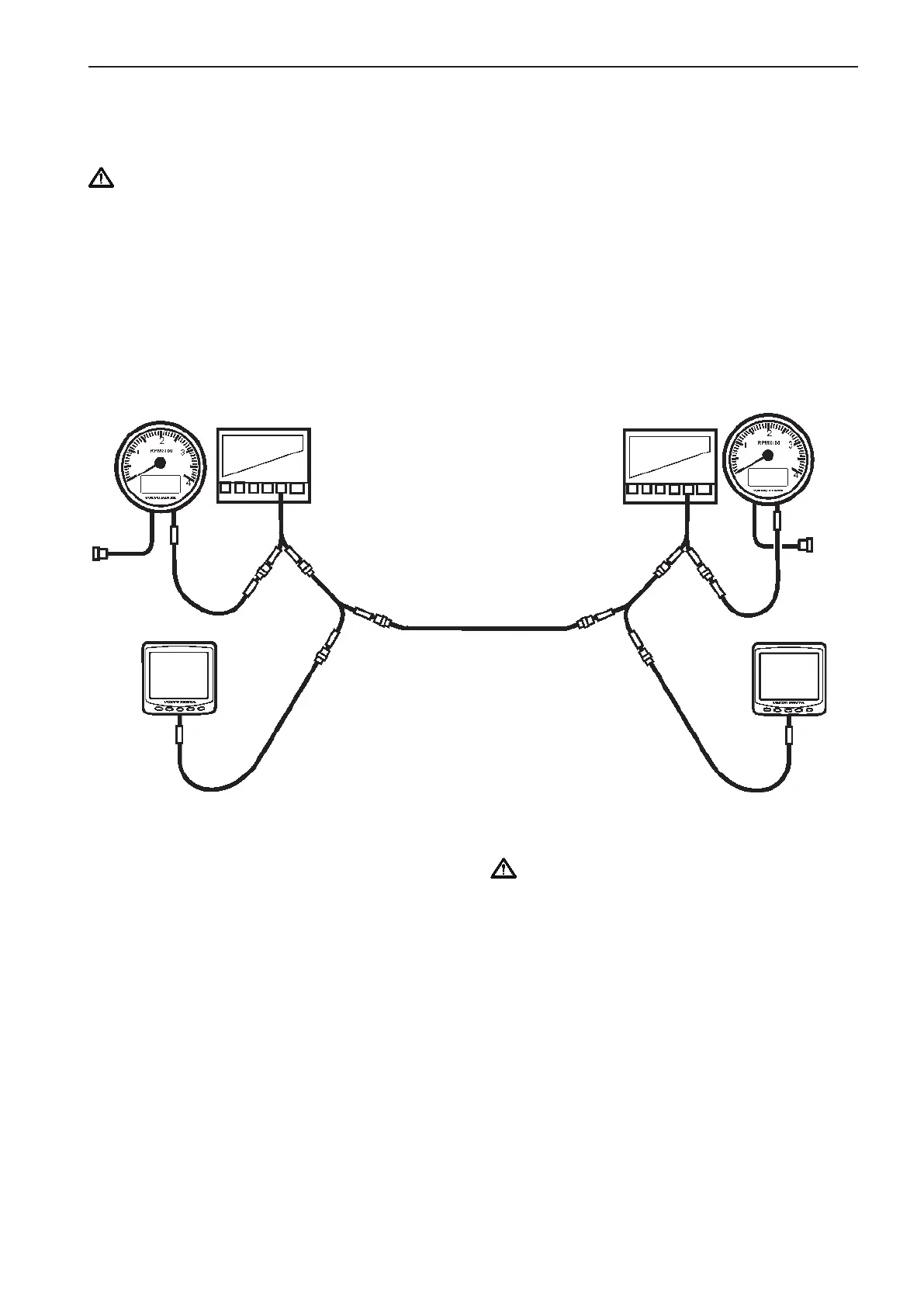

The figure shows a twin installation with two displays,
one for each engine. Note that one display can also
be used for two engines.
IMPORTANT! A MULTILINK BREAKOUT con-
nection should never be left open (not connect-
ed). In such a case, disconnect the Y-split cable.
Starboard
display
To
instru-
ments
To
instru-
ments
Display cable
1.5 m (5 ft)
Display cable
1.5 m (5 ft)
Sync.cable
1.5 m (5 ft)
MULTILINK
BREAKOUT
MULTILINK
BREAKOUT
MULTILINK
BREAKOUT
Port
display
MULTILINK
MULTILINK
MULTILINK
MULTILINK
DISPLAY
CONN.
DISPLAY
CONN.
Y-split
Y-split
Y-split
Y-split
MULTILINK
BREAKOUT
EVC System
Tachometer
EVC System
Tachometer
HCU port
HCU stb.
67
EVC-C Installation procedure, helm
