Burner Setup—Oil E 3000
6.4 Replacing the Burner Nozzle
Requirements  Power supplies disconnected
 Machine cool

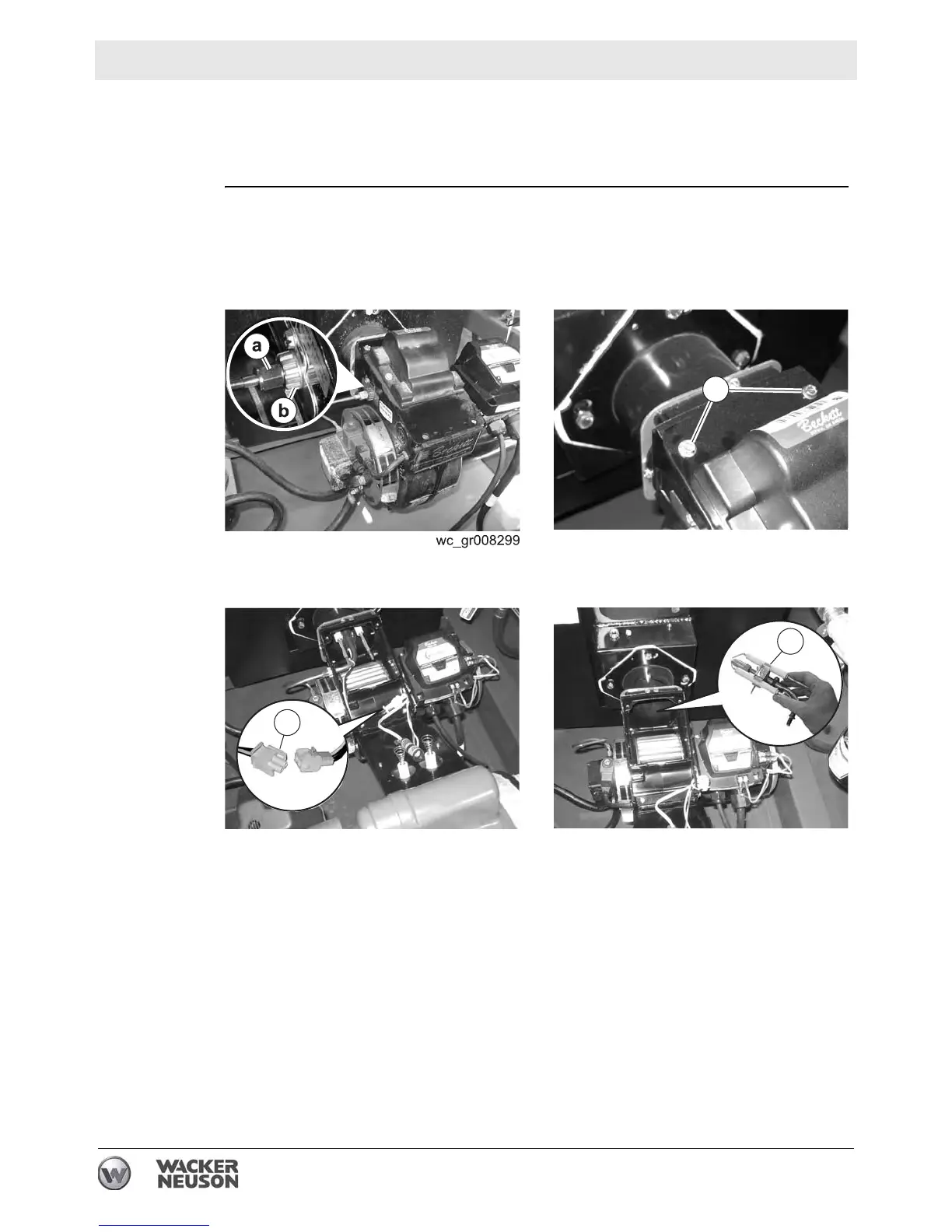

Procedure Follow the procedure below to replace the burner nozzle.
1. Disconnect the power supplies.
2. Remove the copper fuel line (a) between the fuel pump and the burner housing.
3. Remove the spline nut (b) that is seated against the escutcheon plate.
4. Remove screws (c) and open igniter cover.
5. Disconnect the wiring (e) to the nozzle/electrode assembly.
.
6. Maneuver the nozzle/electrode assembly (d) up and out of the burner.
This procedure continues on the next page.
wc_gr008581
c
wc_gr008596
e
wc_gr008597
d
