Burner Setup—Gas E 3000
7.10 Checking and Adjusting the Burner Gas Pressure
Requirements
Machine shut down
Adequate supply gas pressure
Manometer
Checking
pressure
Follow the procedure below to check and adjust the burner gas pressure.
1. Turn the control knob (a) to the “OFF” position.
2. Locate the pressure test port (c).
3. Insert a small screwdriver into the pressure test port and back off the needle
valve two revolutions.
4. Connect the hose of the manometer (d) to the pressure test port.
5. Turn the control knob to the “ON” position.
6. Start the machine.
7. With the burner firing, check the pressure reading on the manometer. See
section Technical Data for the correct pressure.
This procedure continues on the next page.

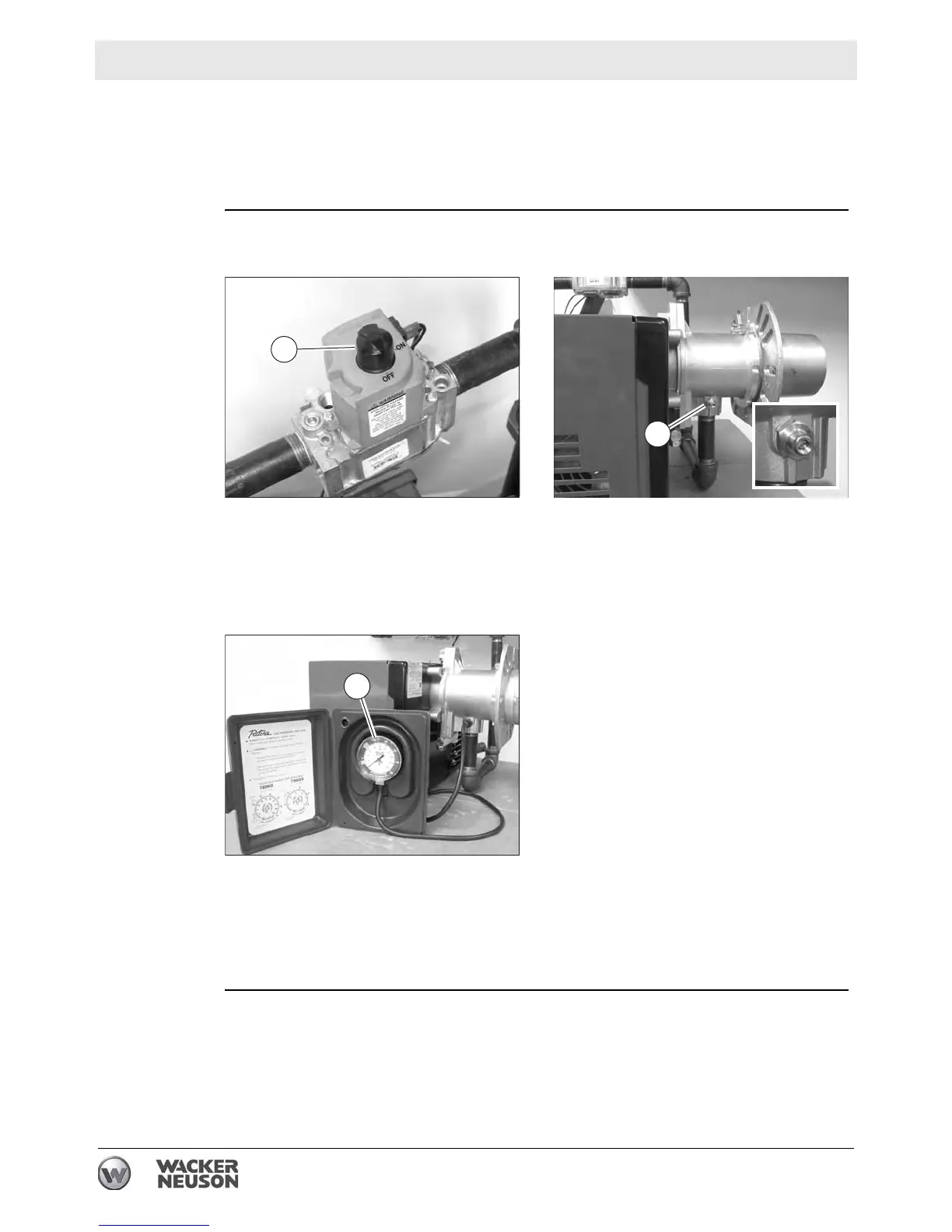

wc_gr009000
