Operation E 3000
4.25 Rewinding the Hoses
Requirements
All accessories off, if applicable
Machine turned on
Procedure
Perform the procedure below to rewind the hose.
Note: Turn the pump ON. Turning the pump on—to circulate warm HTF through
the hose—will aid in handling of the hose.

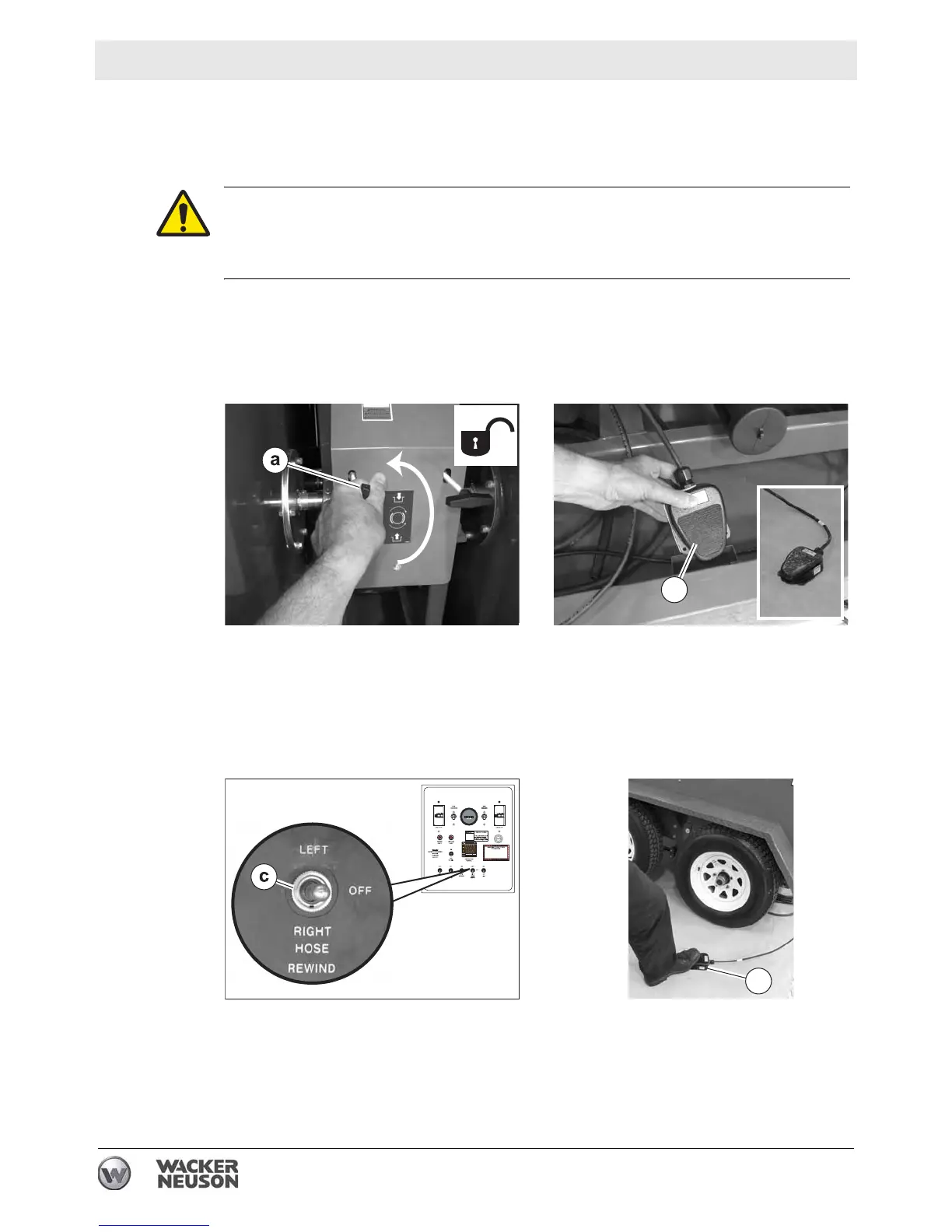

1. Turn the T-handle (a) counterclockwise to unlock the hose reel.
2. Remove the foot pedal (b) and place it on a firm, flat, and dry surface.
3. Move the hose rewind ON-OFF switch (c) to the RIGHT or LEFT position
depending which reel you are working with.
Note: The rewind motor will start but will not rotate the hose reel until the clutch is
engaged.
4. Press down on the foot pedal to engage the clutch. The hose reel will rotate.
5. Guide the hose evenly onto the hose reel as it rotates.
This procedure continues on the next page.
CAUTION
Burn hazard. The hoses and components of the plumbing system may be very hot.
Hot hoses and hot plumbing components may cause burns.
f Wear gloves when handling hot hoses and plumbing components.
