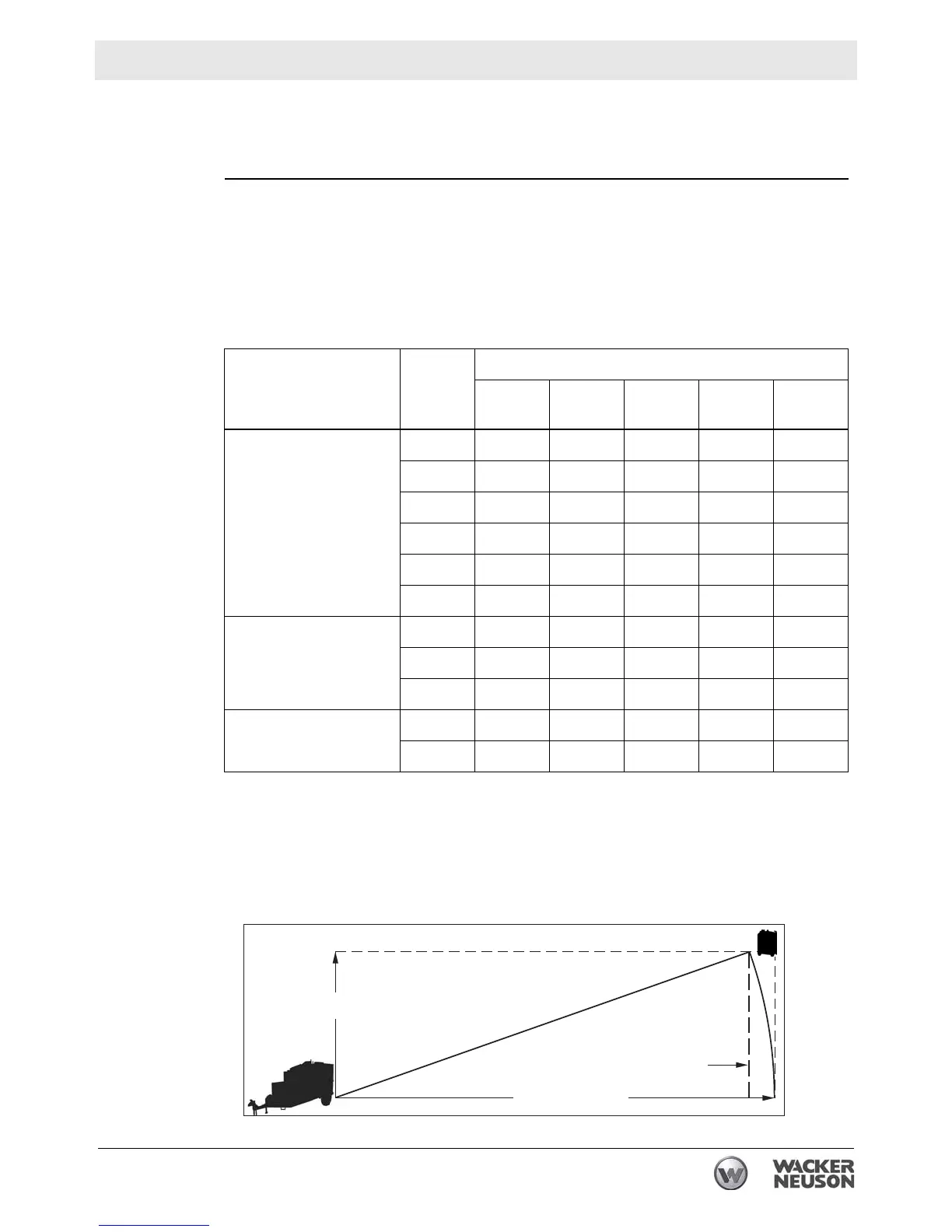

5.6 Using Heat Exchangers to Heat Air
Background
The E 3000 can be combined with Wacker Neuson HX 50, HX 100, or HX 200 Heat
Exchangers to convert the heating application from surface to air.
Configuration
requirements
In order to connect Heat Exchangers to the machine, additional accessories (Sin-
gle Pump Packs (SPP), Dual Pump Pack (DPP), or Auxiliary Pump Panel (APP)
may be required to support the additional load on the machine’s systems. Use the
chart below to determine what components may be required.
NOTICE: Use care when adding accessories; failure to adhere to these require-
ments may damage your machine.
Limitations
Maximum run (horizontal distance from HX to machine): 228 m (750 ft)
Maximum rise (vertical distance of HX above machine): 76 m (250 ft)
Maximum run at maximum rise: 215 m (707 ft)
Note: The farther the HX is positioned from the parent machine, the more heat will
be lost through the hose. This may affect HX performance.
Heat Exchanger
Model
Qty
Additional components required
SPP DPP
1-2
Adapter
2-1
Adapter
APP
HX 50
1—————
2—————
3—— 1 1—
4—— 1 2—
51—231
61—341
HX 100
1—————
2—————
31—1—1
HX 200
1—————
2— 1— 1 1
0 – 76 m (250 ft)
0 – 228 m (750 ft)
0 – 215 m (707 ft)
wc_gr008096
