Burner Setup—Gas E 3000
7.4 Removing and Installing the Combustion Head
Requirements
Machine shut down
Burner cool
Removal

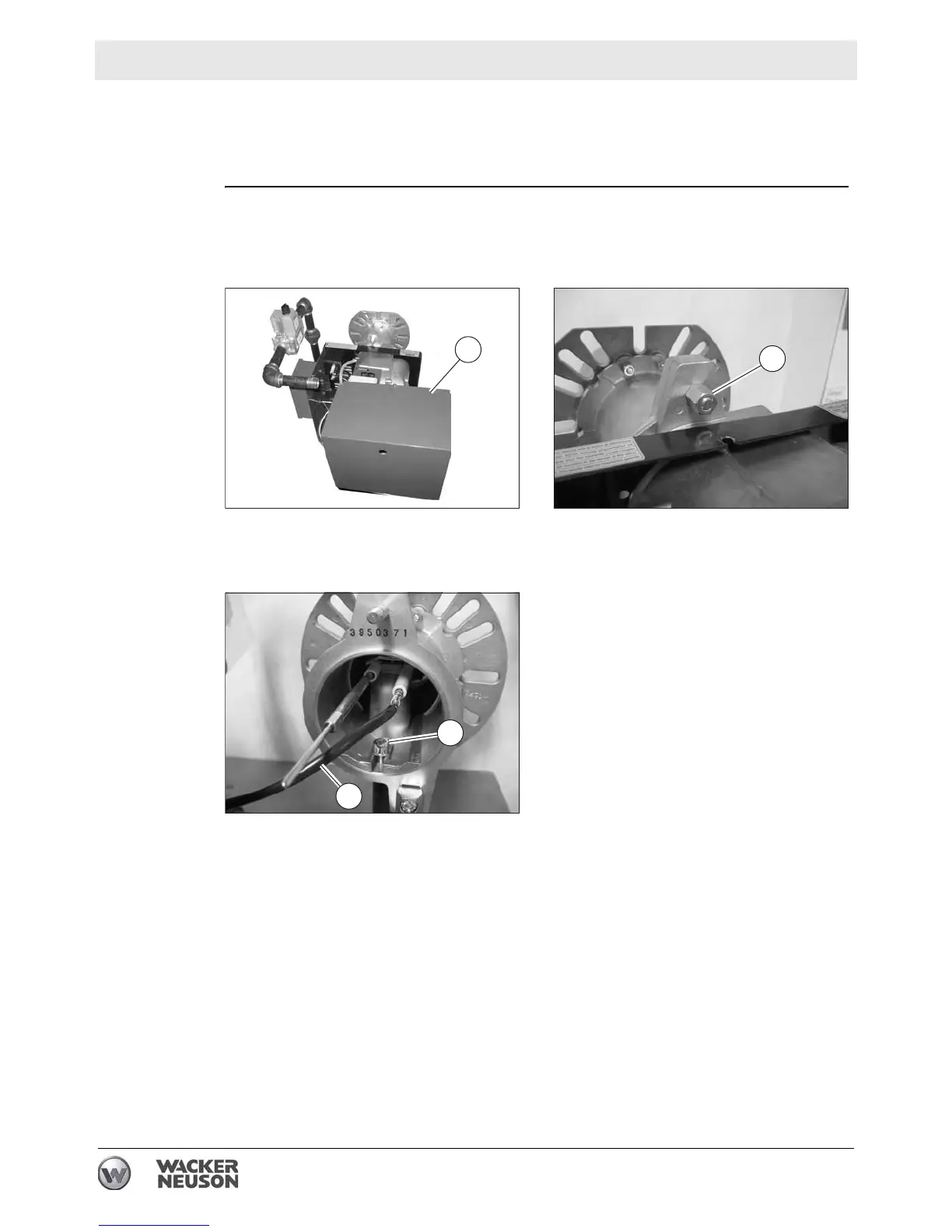

Perform the procedure below to remove the combustion head.
1. Open the access door and locate the burner.
2. Remove the burner assembly cover (a).
3. Remove nut (c) and open the burner.
4. Make note of the position of the combustion head, then remove screw (d).
5. Disconnect the wire (e).
This procedure continues on the next page.
wc_gr008960
c
wc_gr008977
a
wc_gr008961
e
d
To Next Page
