E 3000 Burner Setup—Gas
Continued from the previous page.
6. Remove the combustion head (f).
Installation

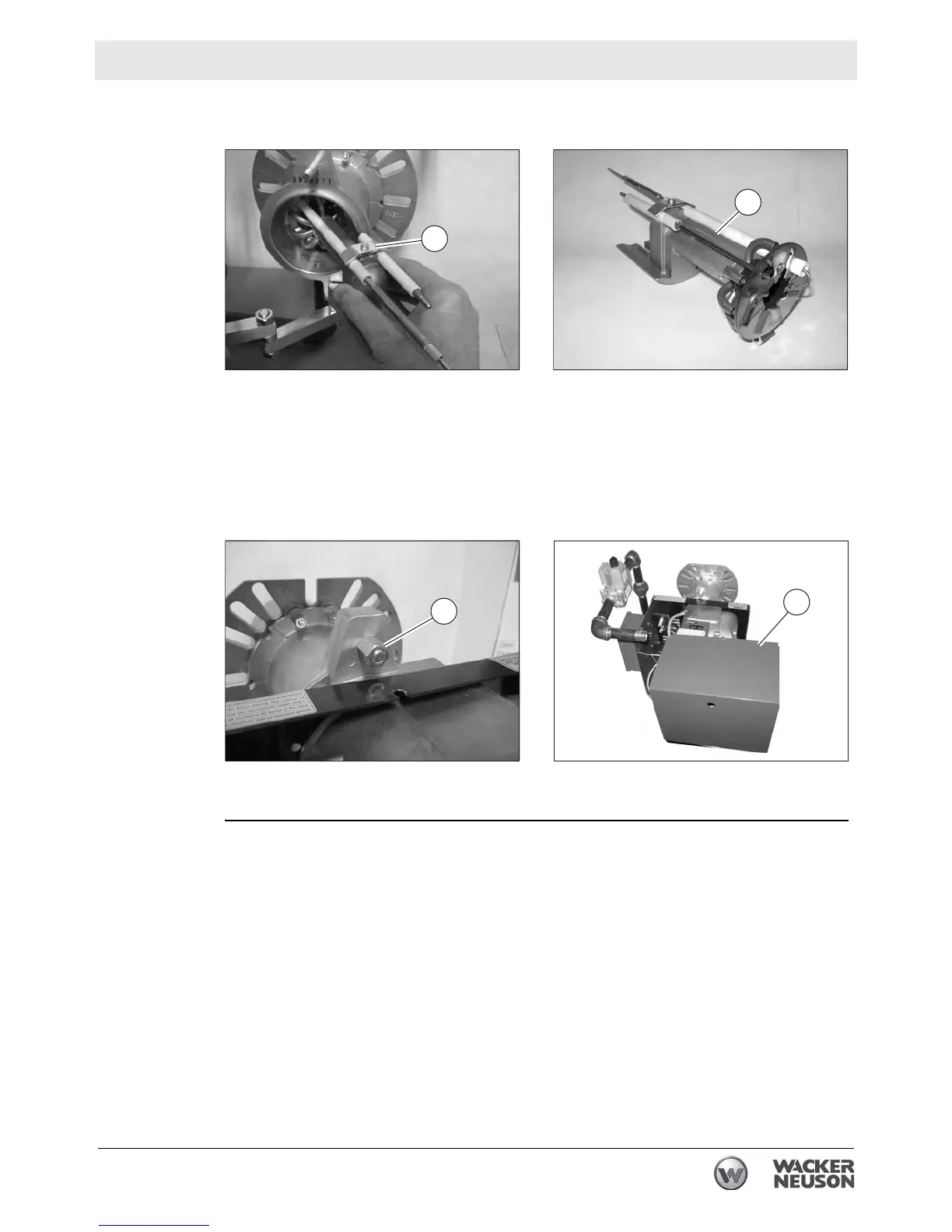

Perform the procedure below to install the combustion head.
1. Install the combustion head into the burner. Adjust the combustion per topic
Adjusting the Combustion Head.
2. Reconnect the wire to the ignition electrode.
3. Close the burner and install nut (c).
4. Install the burner assembly cover (a).
Result
The procedure to remove and install the combustion head is now complete.
wc_gr008962
f
wc_gr008963
f
wc_gr008960
c
wc_gr008977
a
