E 3000 Accessories
Continued from the previous page.

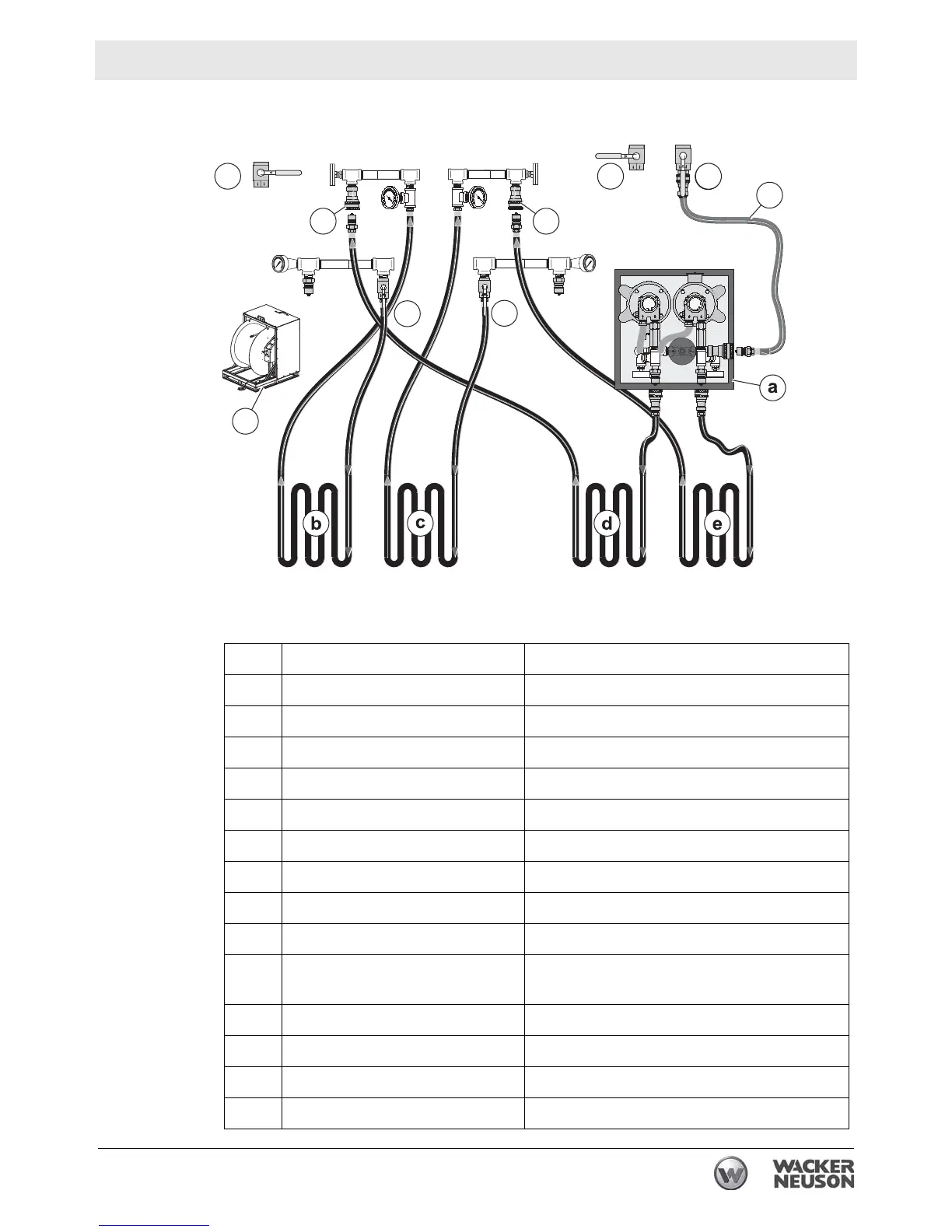

Ref Description Condition
#1 Pump pack supply valve 1 Open after connection
#4 Right HTF supply valve Open after connection
#5 Cross connect valve Closed
#6 Left HTF supply valve Open after connection
#7 Pump pack supply valve 2 Closed (no connections)
a DPP Connected to E 3000 and HHS 3002
b Hose loop from left reel Placed in application area
c Hose loop from right reel Placed in application area
d HHS 3002 hose loop 1 Placed in application area
e HHS 3002 hose loop 2 Disconnected from HHS 3002 hose loop 1
and placed in application area
f HHS 3002 frame Placed in safe location
g Return port Used for HSS 3002 loop 1
h Return port Used for HHS 3002 loop 2
x Leader hose Used to connect DPP to E 3000
wc_gr008541
f
#1#7#5
#6
#4
g
h
x
