Auxiliary equipment
HAMM line spreader
BA RD40_RD45 en 00
223
Bildnummer
1
3 2

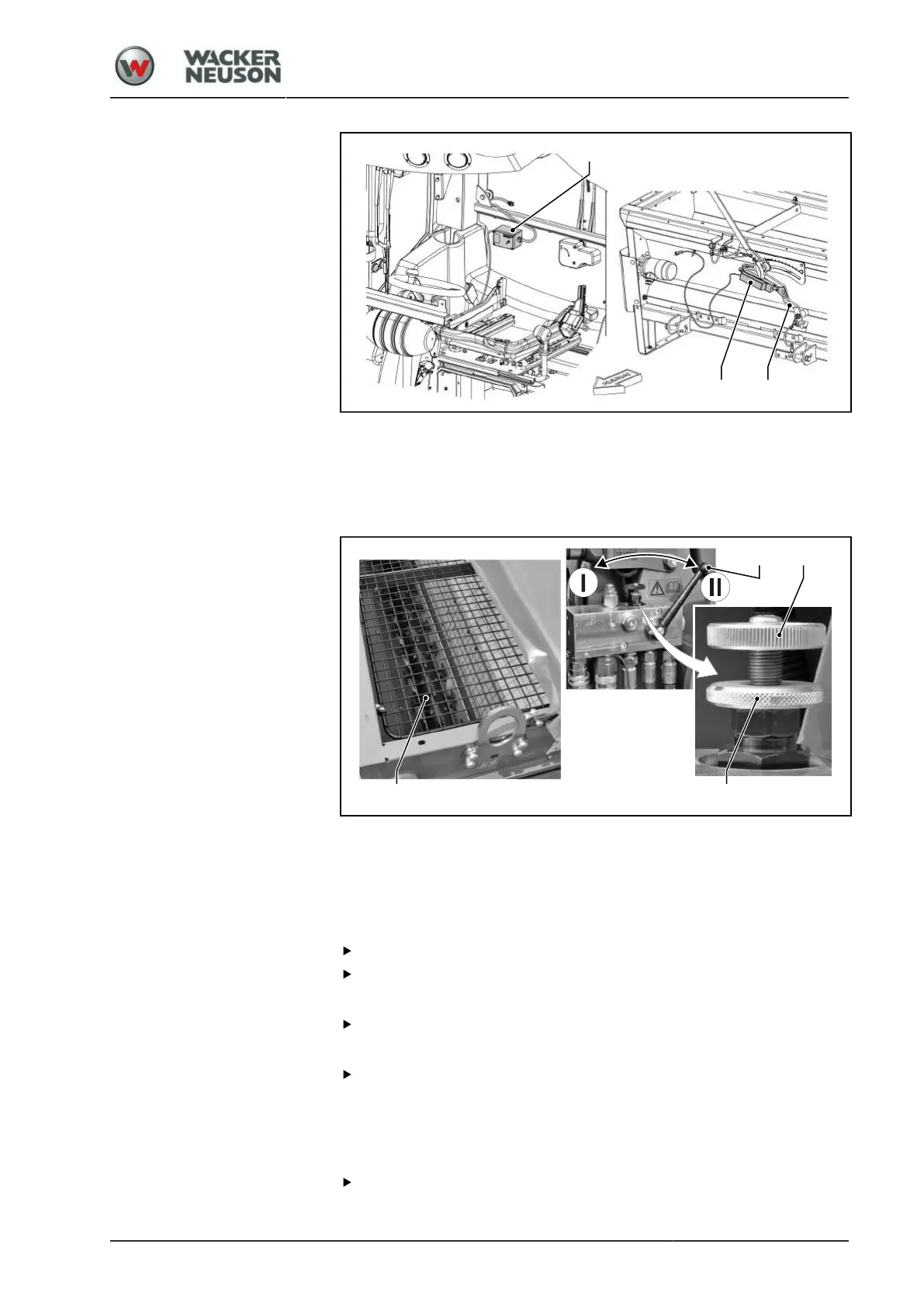

[1] Switch box (in the cab) [2] Stop valve (on the spreader)
[3] Electric positioning cylinder (on
the spreader)
Adjusting the spreader shaft speed
2
1
3
4
The spreader rotor [1] ensures that the chips are distributed equally to the
spreader apertures. According on the speed setting, more or less chips
are conveyed to the spreader apertures.
According on the speed setting, more or less chips are conveyed to the
spreader apertures.
Loosen counternut [3].
Screw in the adjusting screw [2] up to the stop.
a
The rotational speed of the spreader roller is set to the minimum.
Screw out the adjusting screw [2] to the stop.
a
The rotational speed of the spreader roller is set to the maximum.
Lock the adjusting screw [2] with a check nut [3].
Preselecting the chip spreader
With tandem rollers, you can use the lever [4] to preselect vibration/
oscillation or chip spreader for the rear drum.
Swivel lever [4] into position I.
