Replacing the ESI probe sample capillary 5-61

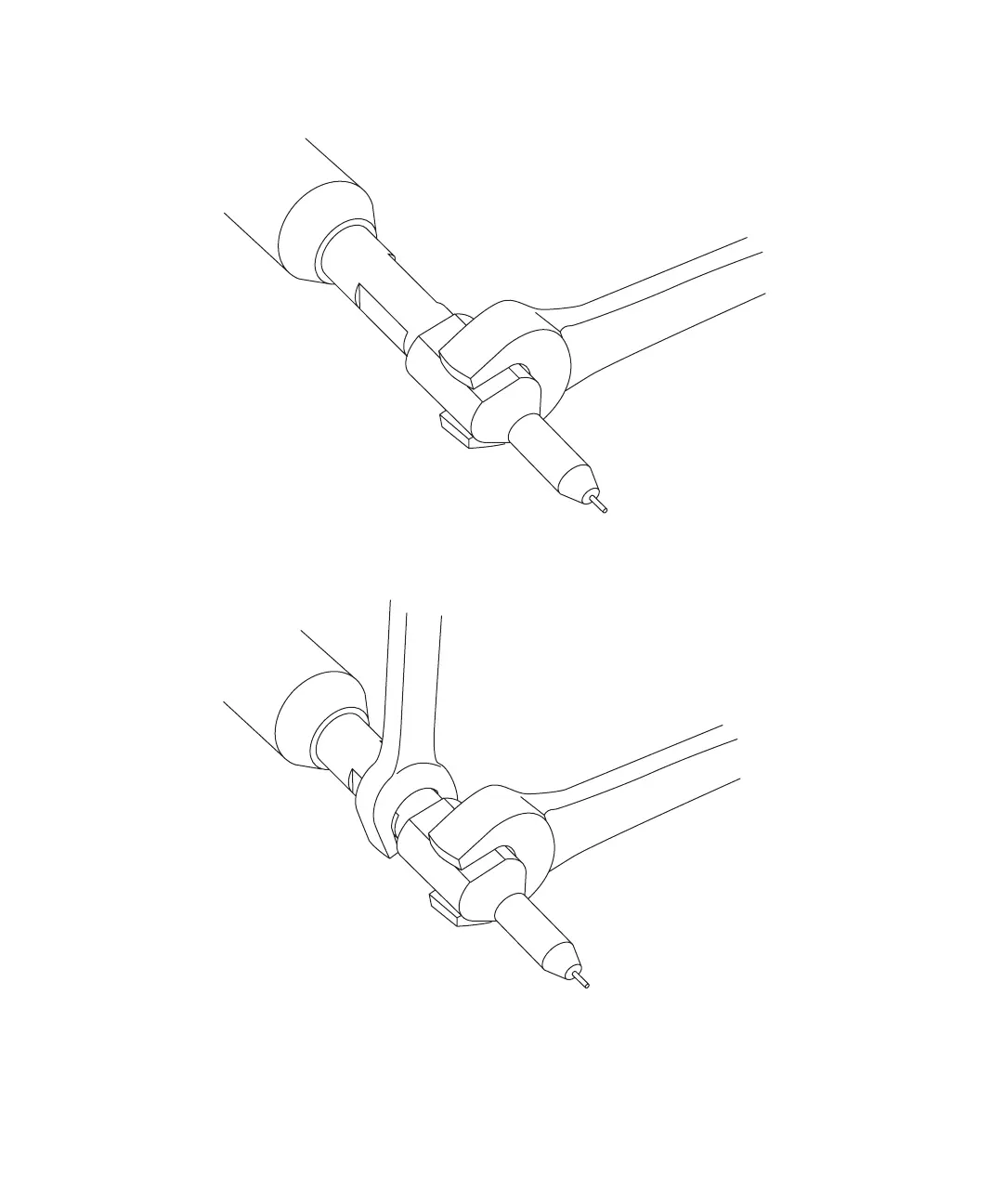

6. Using the 10-mm wrench, remove the probe tip.
Tip: If the probe tip is difficult to remove, use the 7-mm wrench in
conjunction with the 10-mm wrench.
Probe tip
10-mm wrench
Probe tip
7-mm wrench
10-mm wrench
