Operation 4–5

4.1.10.2 B2 VERSION (ISOLATED) PIN ASSIGNMENT:

Pin Description Pin Description

1 BIN 0 (active high) 14 -

2 BIN 1 (active high) 15 -

3 BIN 2 (active high) 16 -

4 BIN 3 (active high) 17 -

BDA

18 BIN 9 (active high)

6 - 19 -

7 - 20 -

8 Trigger input +ve 21 PASS/FAIL output (high = PASS)

9 Trigger input -ve 22 -

BUSY

23 -

11 - 24 -

12 - 25 Common +24V input

13 BIN 4 (active high)

4.2 The Front Panel

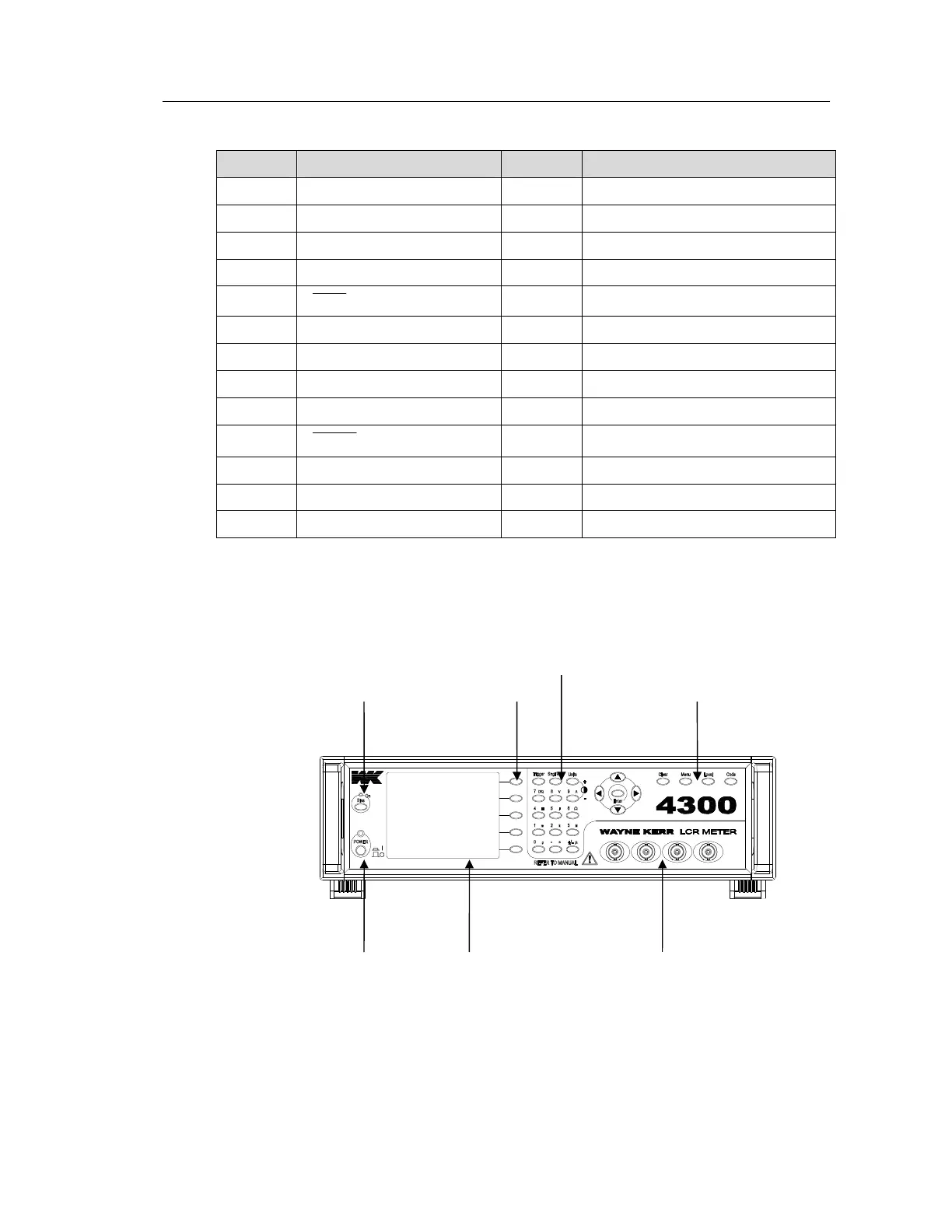

Figure 4-2 The 4300 Front Panel

Control Keys

DC Bias Switch

Power Switch BNC connectors LCD

Soft Keys

Data Entry Keypad

Main Page
