BINNING

6–8

B2 version (isolated):

Parameter Specification

Output On State current: Up to 10mA at +24V

Output Off State current: <0.5mA

Output On State voltage: Input voltage -1.5V at 10mA

Input High current >3mA

Input Low current <1.25mA

Input High Voltage: >15.4V

Input Low Voltage: <8.0V

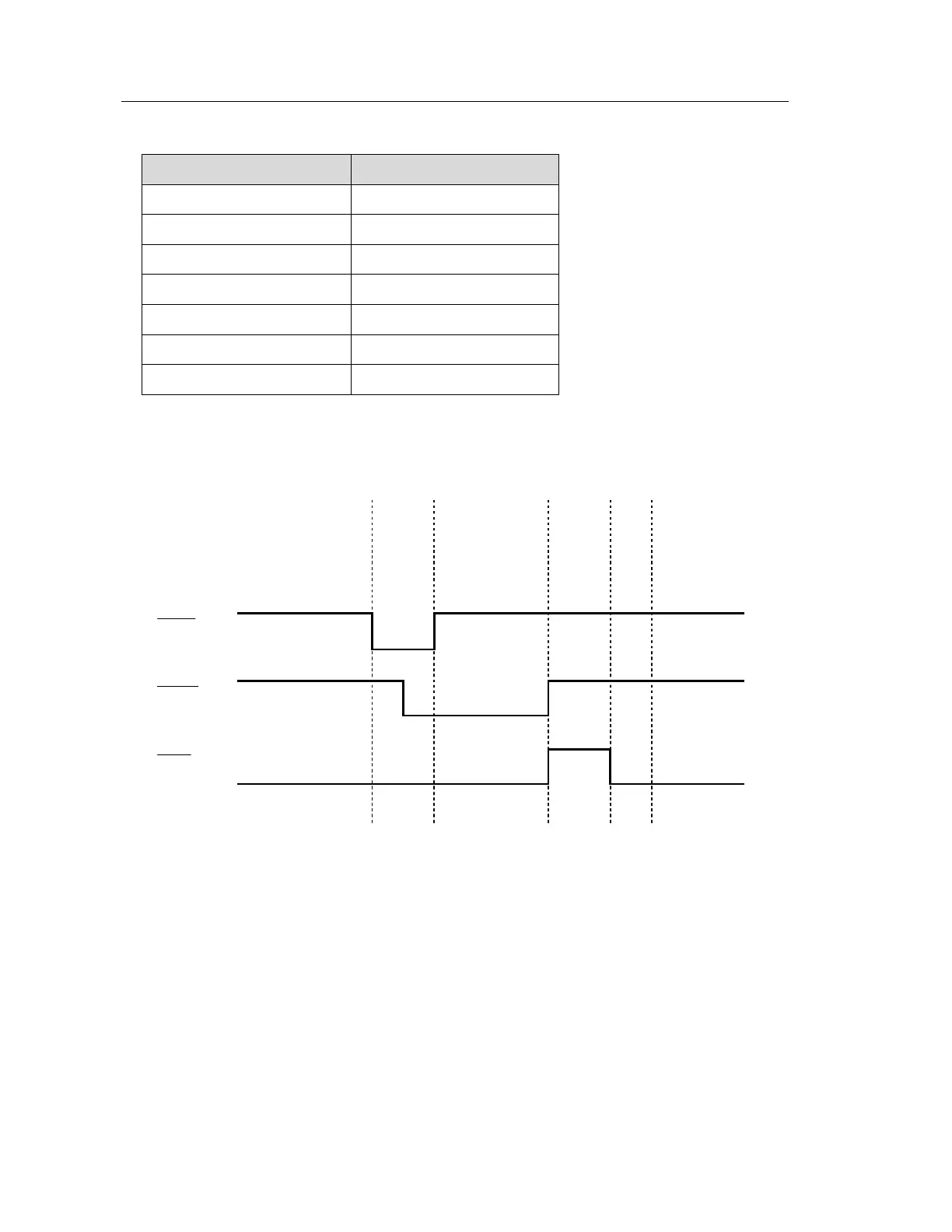

6.3.5 TIMING DIAGRAM:

Period:

Signal

Waiting for trigger Trigger

Measuring

Maths

Waiting for

trigger

TRIG

BUSY

BDA

Event 1 2 3 4 5 6

Time (Not to scale)

Figure 6-10 Binning Timing diagram
