Wayne 4310 - R; G; y; Z Accuracy Chart

4300 LCR Meter Specification 7–6

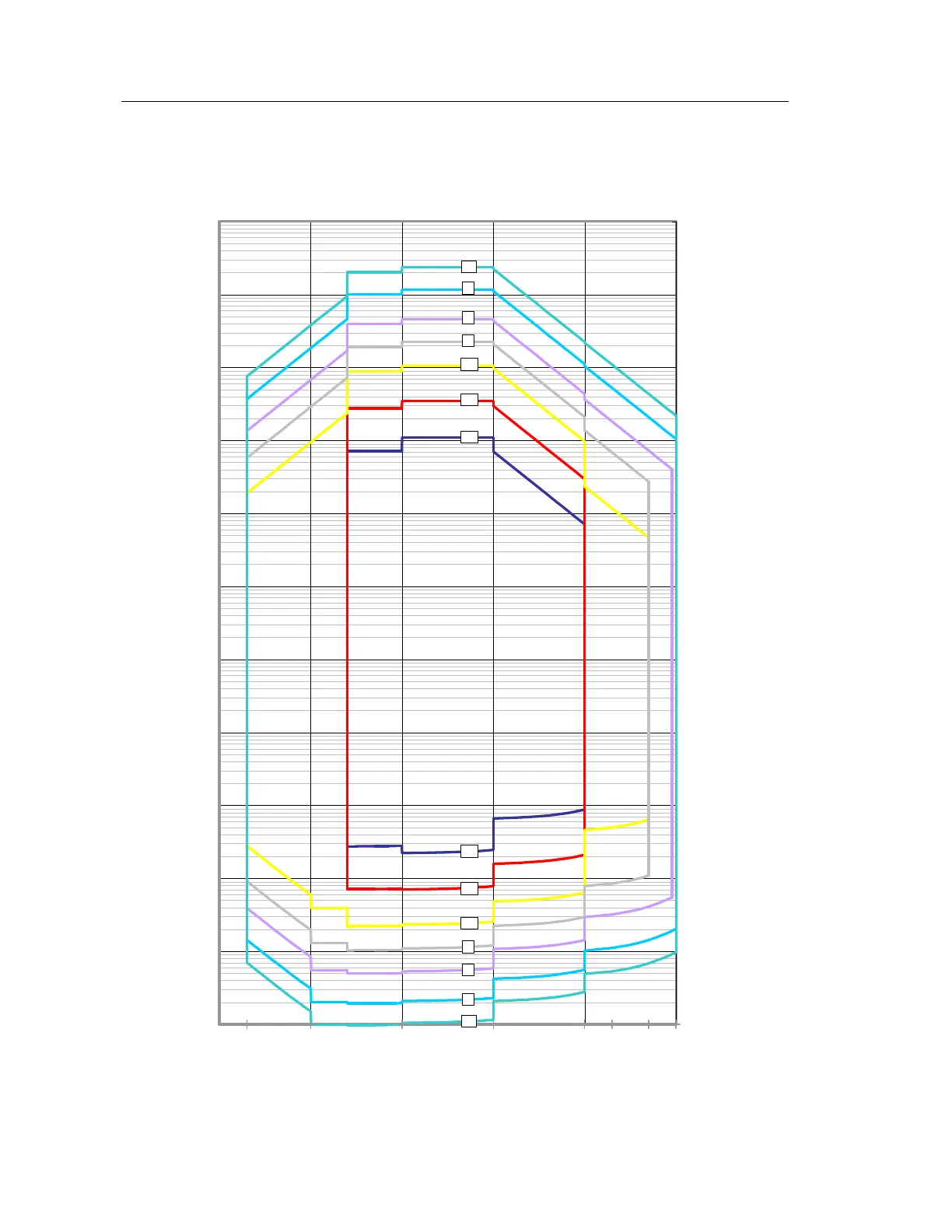

7.7.1 R/ G / Y / Z Accuracy Chart
4300 Impedance Measurement Accuracy
100M
10M
1M
100k
10k
1k
100
10
1
100m
10m
0.1%
0.1%
0.2%
0.2%
0.5%
0.5%
1%
1%
2%
2%
5%
5%
10%
10%
10K 500K100K1K100 1M200K20
Frequency (Hz)
Impedance Z (
Ω)
Ω) Ω)
Ω)
Conditions
AC Drive Level:
1V/10mA
Speed: Slow
Instrument trimmed at
measurement
frequency.
Q: ≤0.1
Fixture: 1EV1006
Temperature range:
25 +/-5ºC
Supply frequency
rejection may also
cause additional
unquantifiable errors
dependent on lead
layout, particularly at
frequencies below
600Hz and at lower AC
drive levels.
For impure
components, and for
measurements of the
highest and lowest
available ranges, full
accuracy expressions,
shown below, apply.
If 1 > Q > 0.1, multiply
R accuracy by (1+Q).
Conductance (G)
Find accuracy for
equivalent R value
from R = 1/G
Admittance (Y)
Find accuracy for
equivalent Z value from
Z = 1/Y.
