Installation and Initial Operation 40075165 Markoprint integra PP108
Page 40 of 104 GB
Placing the Print System
Look for good product guidance, so that the product can’t damage the print head.
The mounting position should be vibration-free, so that the print head can operate
safely. Otherwise use a separate stand.
The installation position has to provide sufficient access for user and service
technician.
Observe that all mounting parts are fixed sufficiently.
Consider all points of the "Intended Use" in the chapter safety regulations.
To achieve a clean, sharp print result the distance from the product to be printed to the
nozzle plate is important. The optimum distance is 0 to 3 mm between the nozzle plate
and the product. A greater distance will adversely affect the print result, particularly at
high conveyor belt speeds.
The higher the print speed the shorter must be the distance. At speeds of less than 20
m/min a distance higher than 3 mm between the nozzle plate and the product may still
be acceptable.

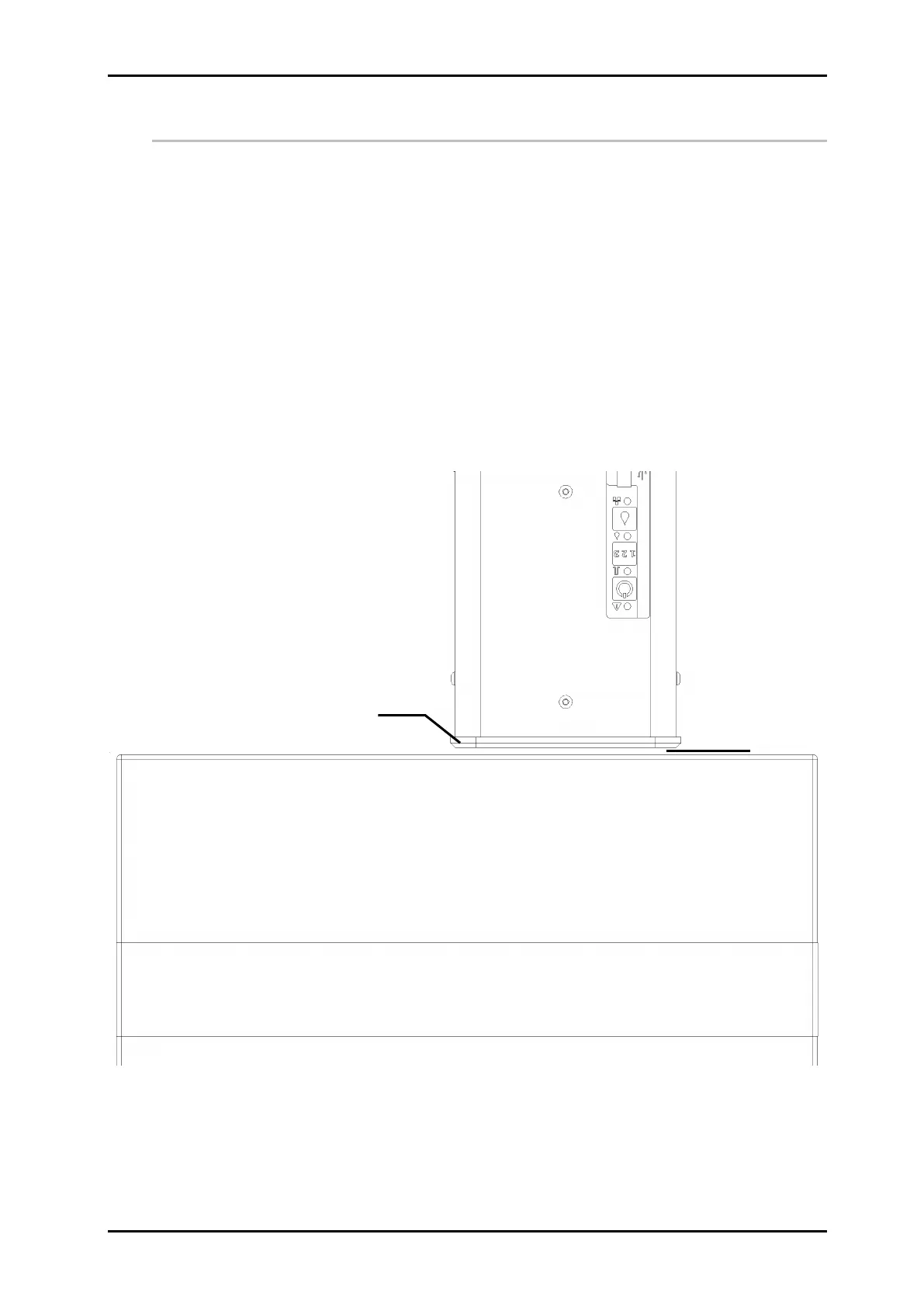

Fig. 5: Distance Print Head - Product
