Weber Markoprint integra PP108 - Seiko - Print Head Module RC1536 L

Construction and function 40075165 Markoprint integra PP108
Page 34 of 104 GB
Seiko – print head module RC1536L
Material damage
The print head can be damaged by incorrect
disassembly.
Therefore:
– Never remove the print head - this would invalidate
the warranty.
The print head Markoprint integra PP108 has 1536 individually controllable nozzles on
108mm in the nozzle plate.
The nozzle plate is fixedly connected to the print head module and can’t be
disassembled.
The print head can’t opened / disassembled.

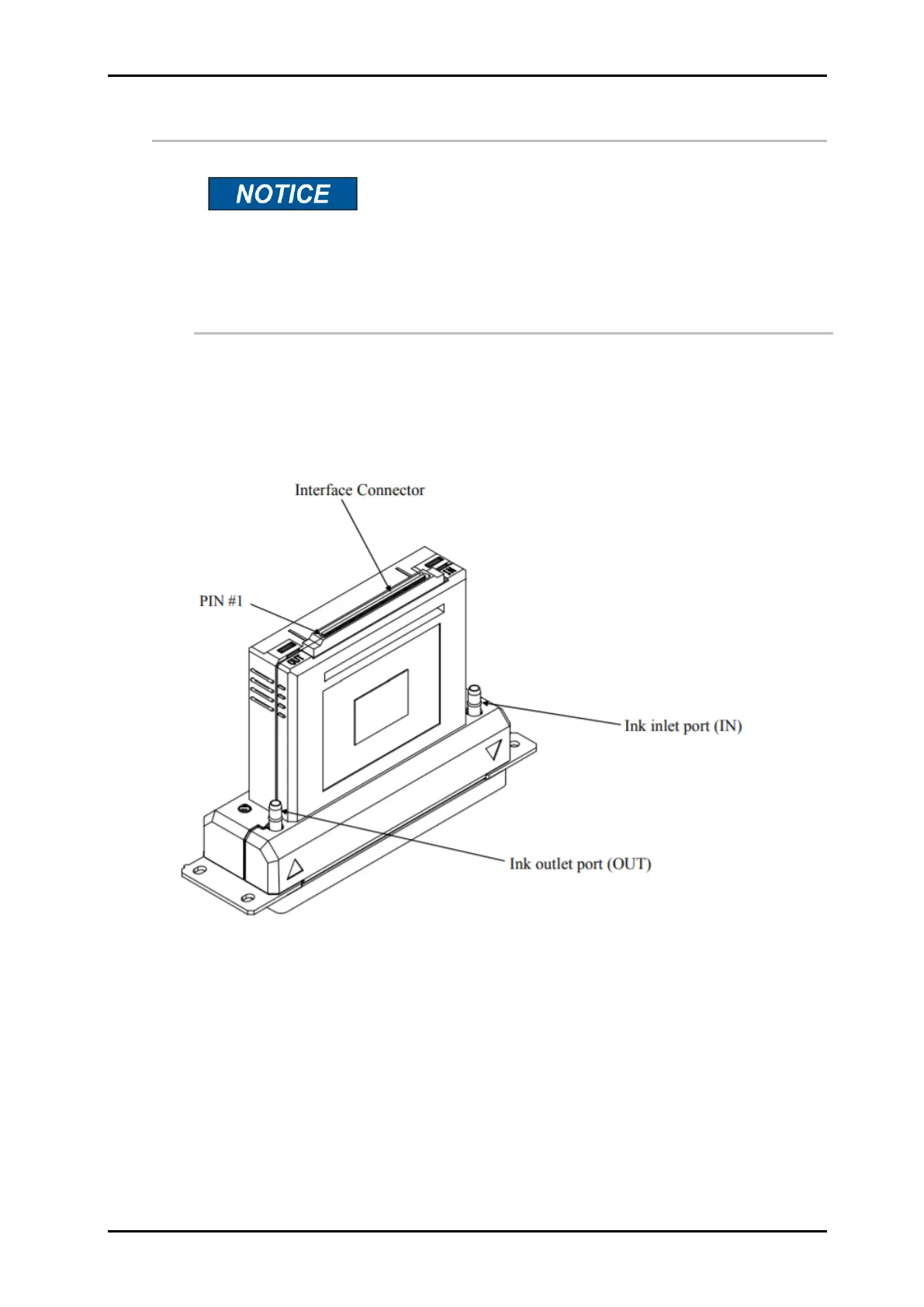

Fig. 2: Seiko – printhead module PP
The single print head has a maximum print height of 108mm.
