Operation 40075165 Markoprint integra PP108

Page 70 of 104 GB

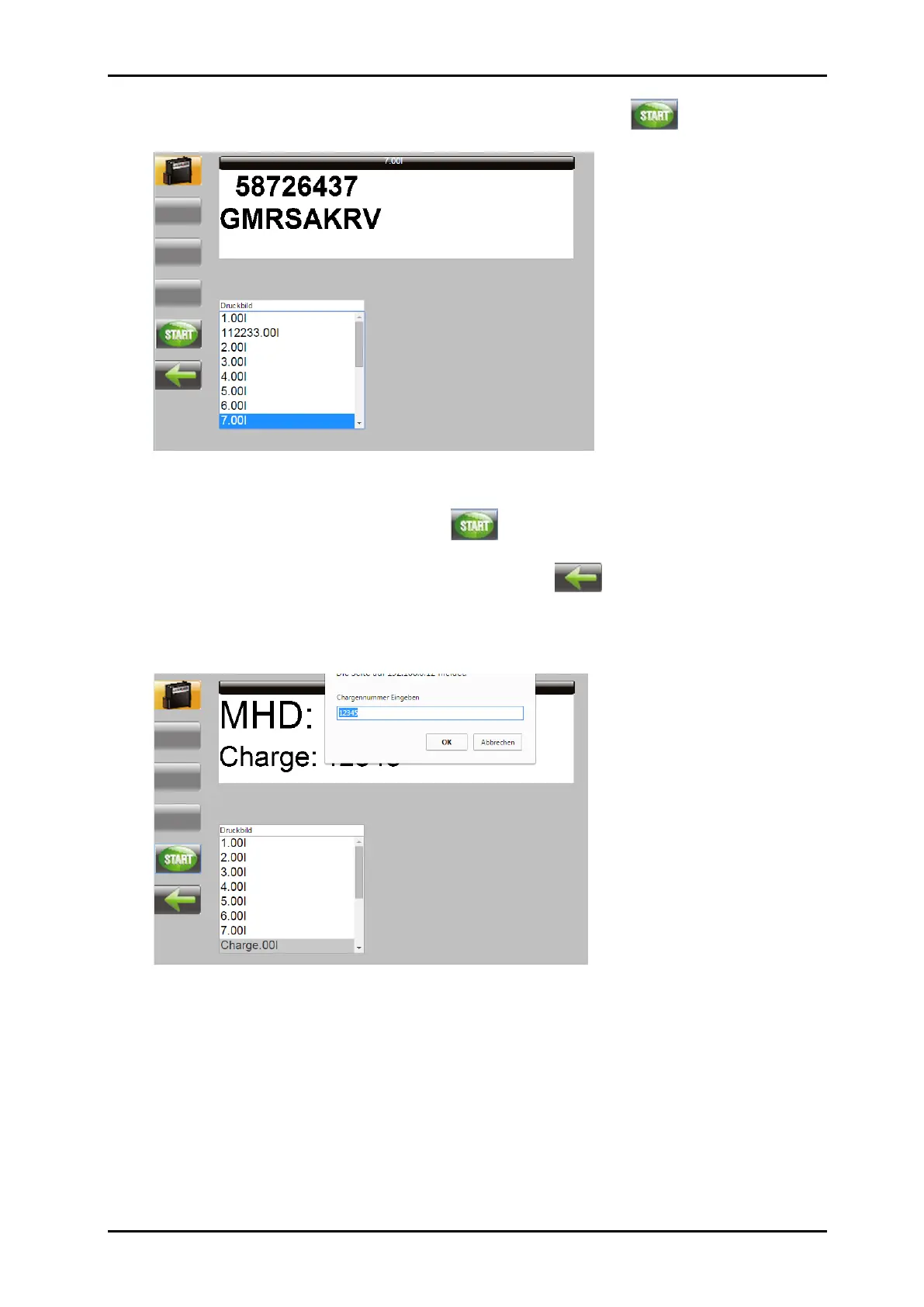

The print can start again or another print image can select with .

The selected print image can start with .

The last loaded and paused print image restarts with .

Variable fields are queried each time before a print image starts:
