Switching on the machine
• Main switch "on".
• Turn key-operated switch for "Open hood"
(optional) to "1", hood can only be opened after
approx. 180 seconds.
Setting-up in manual mode
• Open hood
• Set mode selector to "0", manual mode.
• Set selector "Release brakes" (optional) to "1".
Spindle brakes are released for basic setting and
tool change. Spindle motors cannot be switched
on.
Tools may only be changed and basic machine
settings effected in manual mode with spindle
brakes released and keys removed.

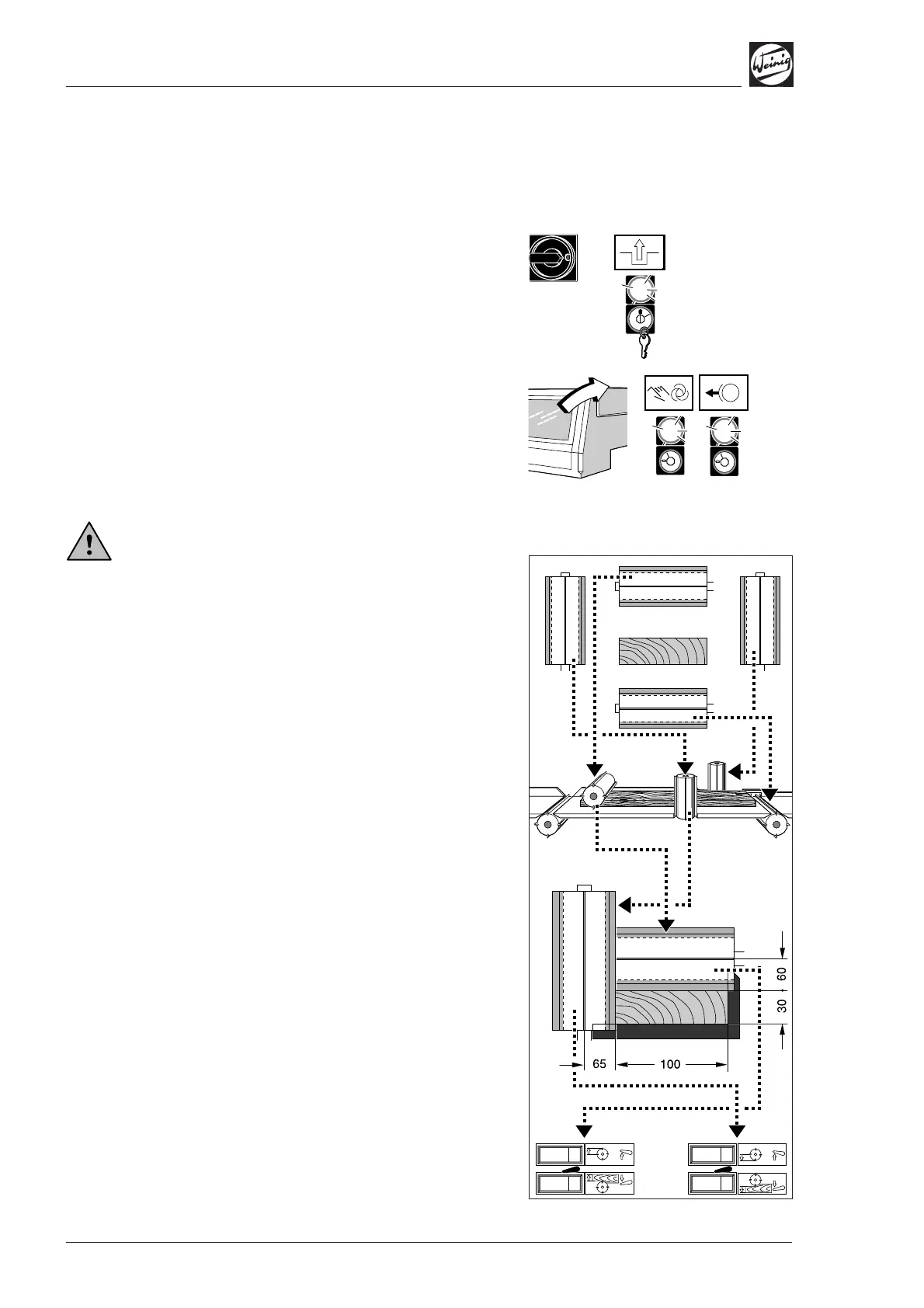

Example:
Planing a strip 100 mm (3.937") x 30 mm
(1.181") on four sides:
Tools and basic setting:
• Fit four straight cutterheads; note the chapter
"Tools"
• Effect basic settings; note chapter "Basic setting"
• Always keep the vertical spindles slightly below
the table and horizontal spindles behind the fence
in the axial direction so that the complete timber
is indeed machined.
Timber width:
• Release clamp for left-hand spindle.
• Option Digiset: Switch numerical indicator to
workpiece width and adjust spindle to a work-
piece width of 100 mm (3.937").
• Clamp spindle
Timber height:
• Release clamp for top spindle.
• Option Digiset: Switch numerical indicator to
workpiece height and adjust spindle to a work-
piece height of 30 mm (1.181").
• Clamp spindle
Further examples for setting-up profiles can be
found in the chapter entitled "Setting-up".
