Tech. Dok. / L23 880 02 / 01.00.02 © MICHAEL WEINIG AG
Basic setting
4-14 Profimat 23 E

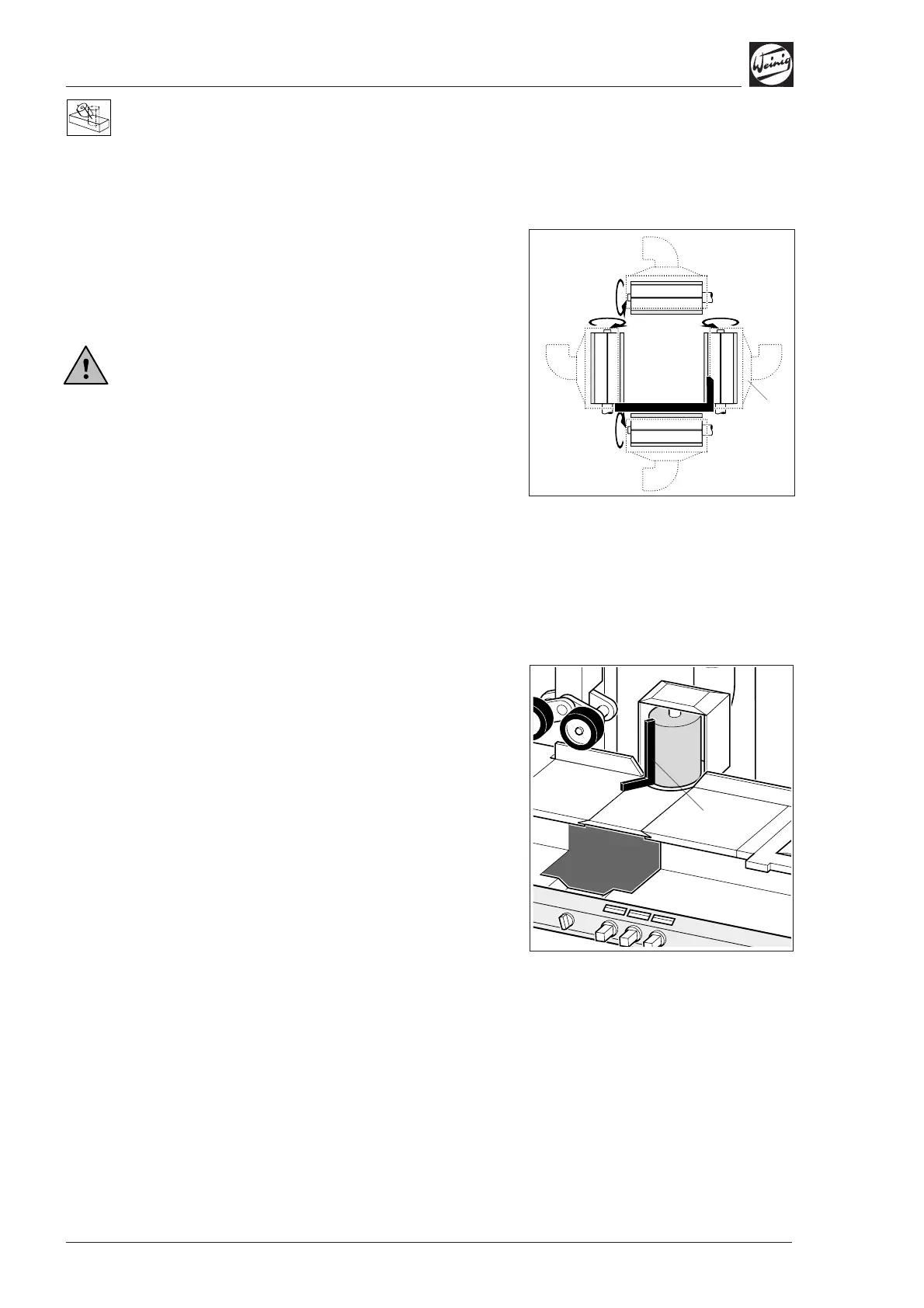

Universal spindle
Use
Used as top, bottom, left-hand, right-hand or tilt
spindle. Direction of spindle rotation can be
reversed on control panel for planing in opposite
direction. Ensure that it runs against the feed.
When cutting with the feed, impact plate and
barrier must be installed behind the machine
outfeed so that flying workpieces are reliably
stopped and no-one can enter the danger zone.
A corresponding sign must be affixed to the
machine.
Using a circular saw
A circular saw may be used in the same way as
the top or bottom spindle.
Refer to the technical data with regard to the
maximum saw diameter.
Basic setting of the angle indicator
• Set spindle upright and line it up on the
machine table with a 90° steel angle (2), using
the crank handle for swivelling the spindle.
• Set numerical indicator to 0 (see page 4-1).
Basic setting forward/backward,
up/down
• Adjust basic settings as for top, bottom, right-
hand or left-hand spindle, depending on how the
spindle is used.
(2)
(1)
