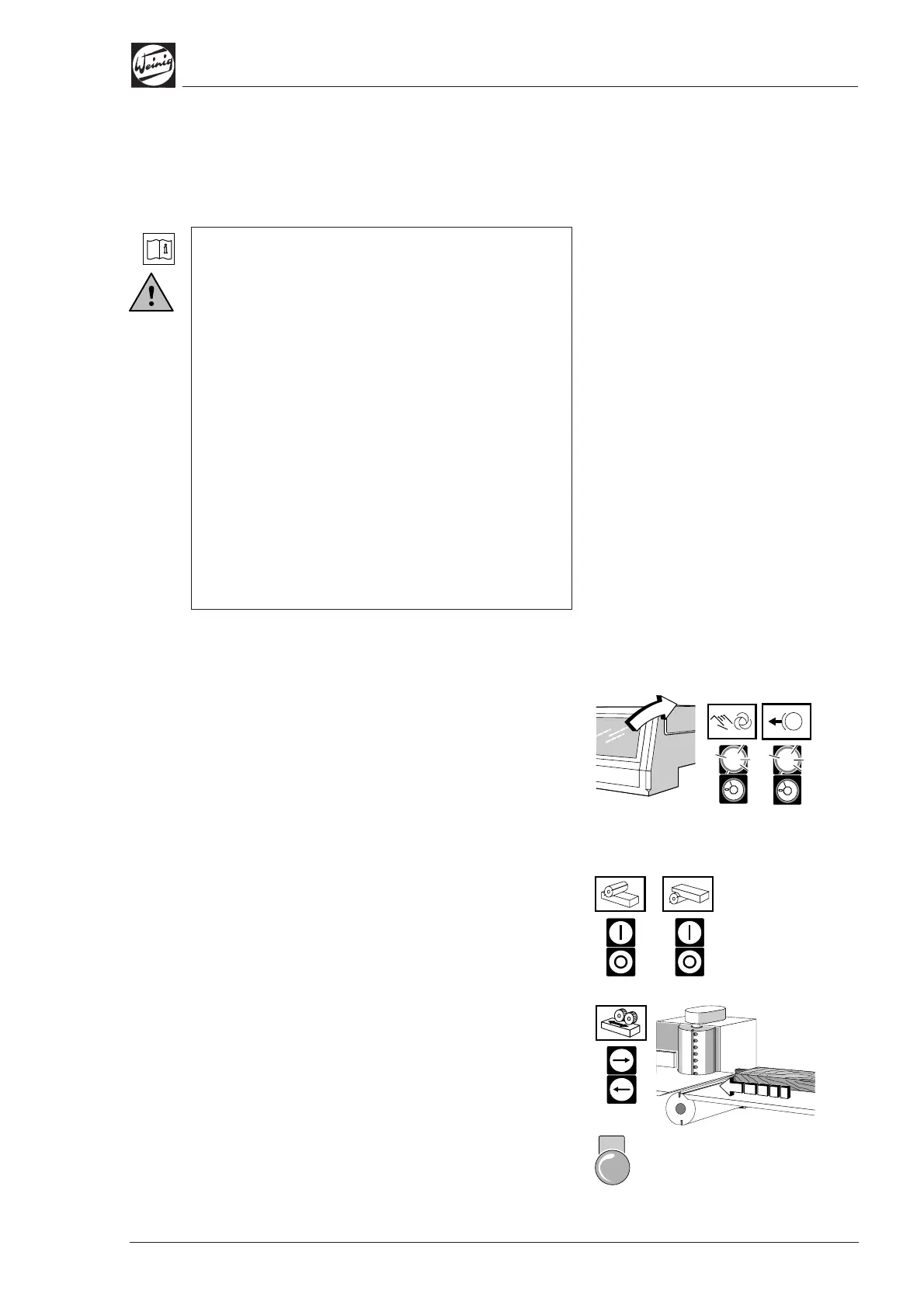

Operation
1-3Profimat 23 E
Production
Checklist
• The Manual "Safety Instructions" must be
read and observed, for it contains further,
detailed information on the moulder’s intended
use and its safe operation.
• Basic settings have been made.
• Tools have been fitted securely.
• Unobstructed movement of the spindles has
been checked.
• Safety mechanisms and dust extraction hoods
have been fitted.
• Unused spindles have been adjusted away from
the working area.
• There are no set-up tools or measuring
instruments in the machine.
• The working area is clear.
• Wear goggles and ear protection when setting
up profiles with the hood open.
Setting up profiles in manual mode
• Open hood
• Set mode selector to "0".
• Set selector "Release brakes" (optional) to "0",
brakes are applied.
Spindle motors can be switched on when the
hood is open. Feed movement is only possible in
inching mode.
• Dust extraction, spindle motors "on".
• Automatic Waxilit pump (optional) "on".
• Place set-up piece on infeed table and edge
jointing fence.
• Carefully advance the set-up part through the
machine at inching feed speed.
• Stop production via an Emergency OFF if
dangerous situations arise.
…
