Setting up profiles
5-6 Profimat 23 E

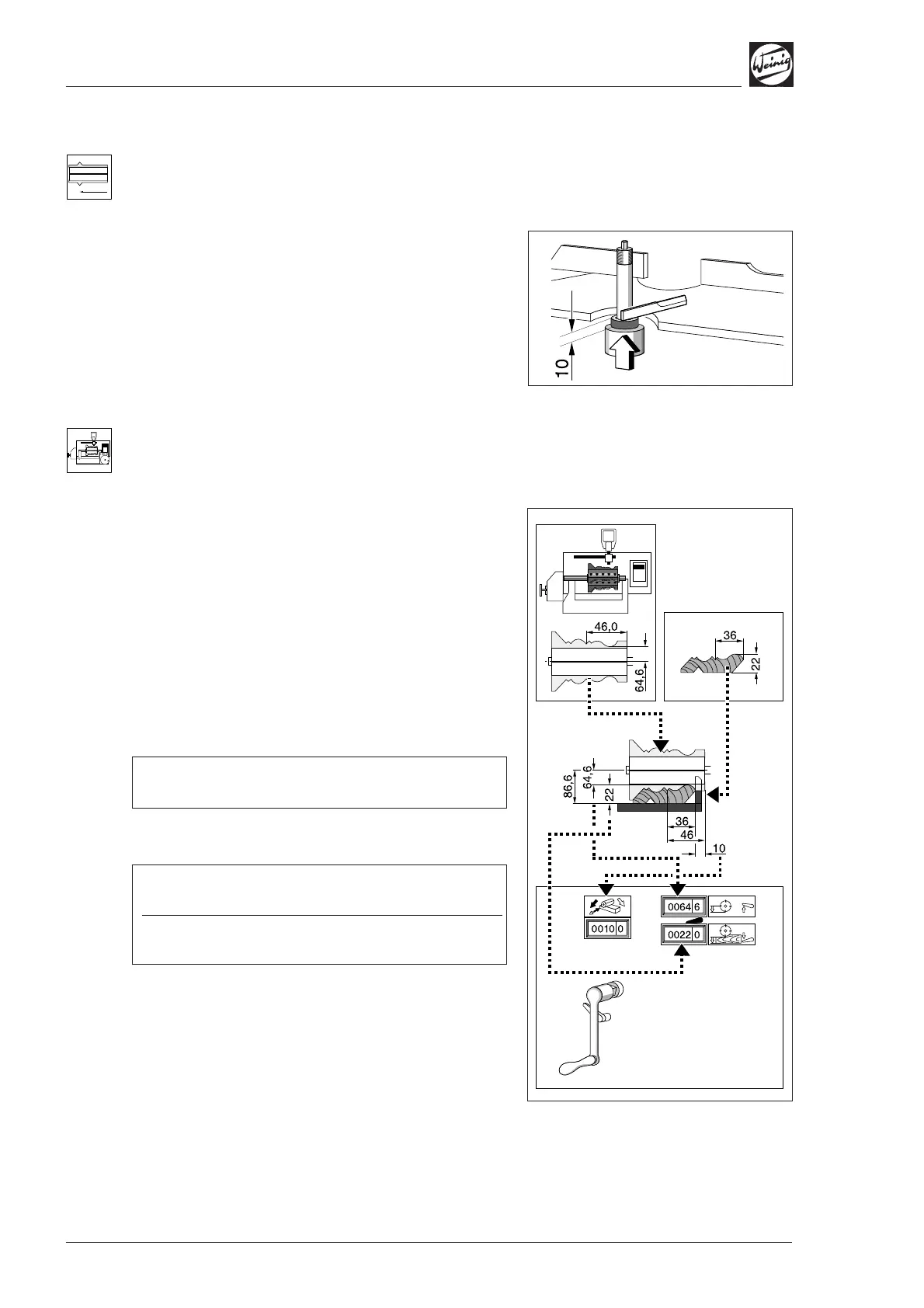

Set-up variation – axially
constant tools
Axially constant tools need only be set in radial
direction. Set spindles to the axial constant value
(10.0 mm) (0.394").
Example – radial
• Set tools in radial direction as described in a
following chapter.
Set-up variation –
dimensioned tools
An axial and a radial value must be determined
for the tool on the measuring stand in accordance
with the reference values on the workpiece
(WEINIG can supply different measuring systems
depending on the application in question).
• Determine settings for mechanical counter.
Example – radial
Example – axial
• Set spindles to the set values obtained.
const
Tool value = Set value.. 64.6 mm (2.543")
Workpiece value = Set value ..22.0 mm (0.866")
Tool value ..........................46.0 mm (1.811")
– Workpiece value ................36.0 mm (1.417")
= Set value ............................10.0 mm (0.394")
