Weinig Profimat 23 E - Installation and Alignment

Tech. Dok. / L23 880 02 / 05.99.01 © MICHAEL WEINIG AG
Data, transport, start-up
8-9Profimat 23 E
Scope of supply
• Check the scope of supply immediately upon
delivery.
The scope of supply (optional equipment,
standard equipment, operating tools) is specified
in the delivery note and order confirmation.
Installation, alignment
Installation
Note the information in the "Safety instructions"
with regard to the choice of location. Space
requirements as specified on pages 6-1 and 6-2,
as well as in the installation diagram.
Foundations
• A foundation must be prepared if the floor is
not sufficiently strong. The area pressure under
the machine feet and the size of the foundations
can be found in the installation diagram.

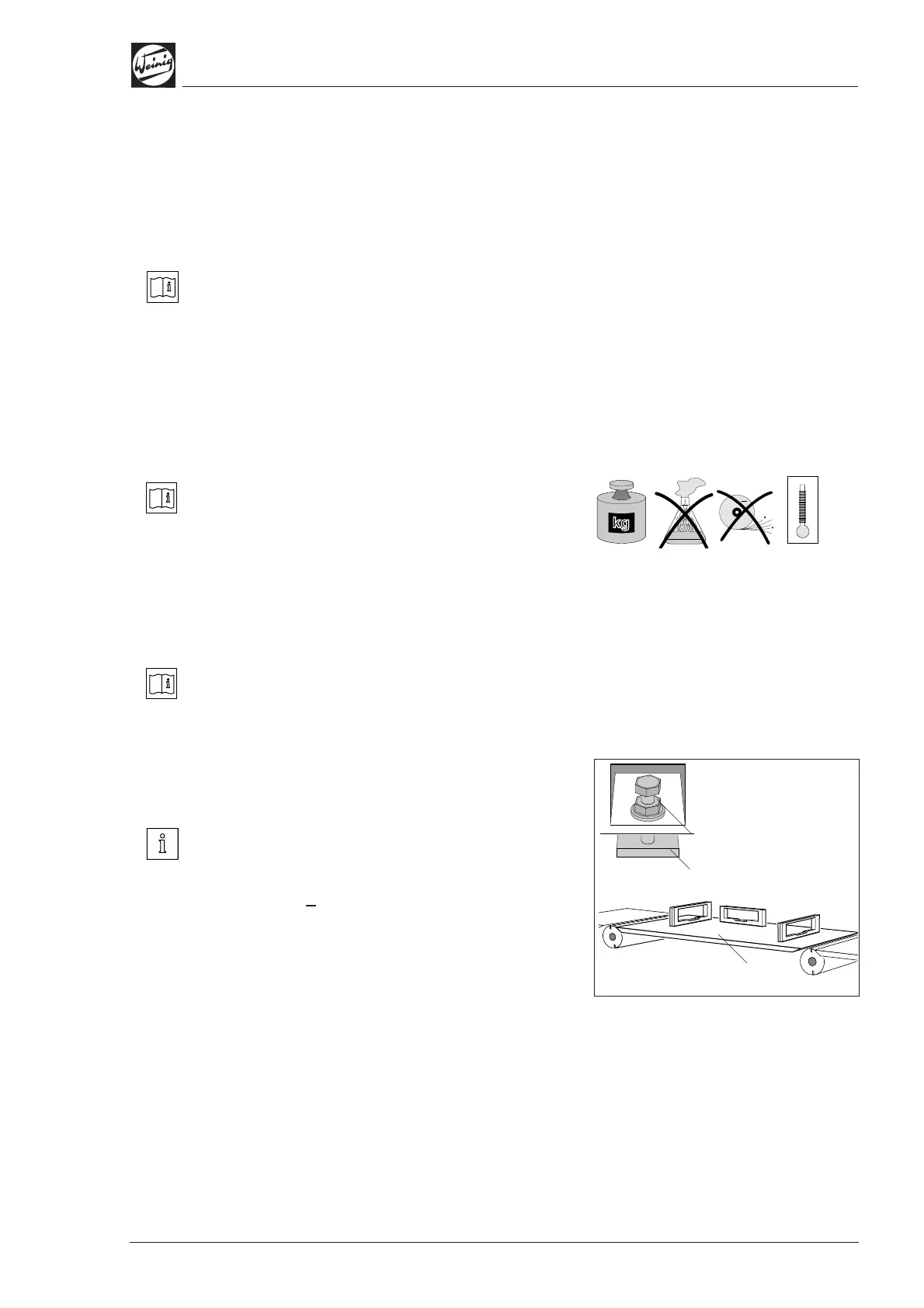

Alignment
• Place the levelling pads (2) provided under the
adjusting screws (1) on the machine feet.
• Place a spirit level on the machine table (4).
The centre of the machine is an ideal point for
this purpose.
• Align the machine via the adjusting screws (1).
Tolerance = + 0.1 mm/m.
°F
°C
(2)
(1)
(4)
