Weinig Profimat 23 E - Infeed Table Adjustments

Tech. Dok. / L23 880 02 / 01.00.02 © MICHAEL WEINIG AG
Basic setting
4-4 Profimat 23 E

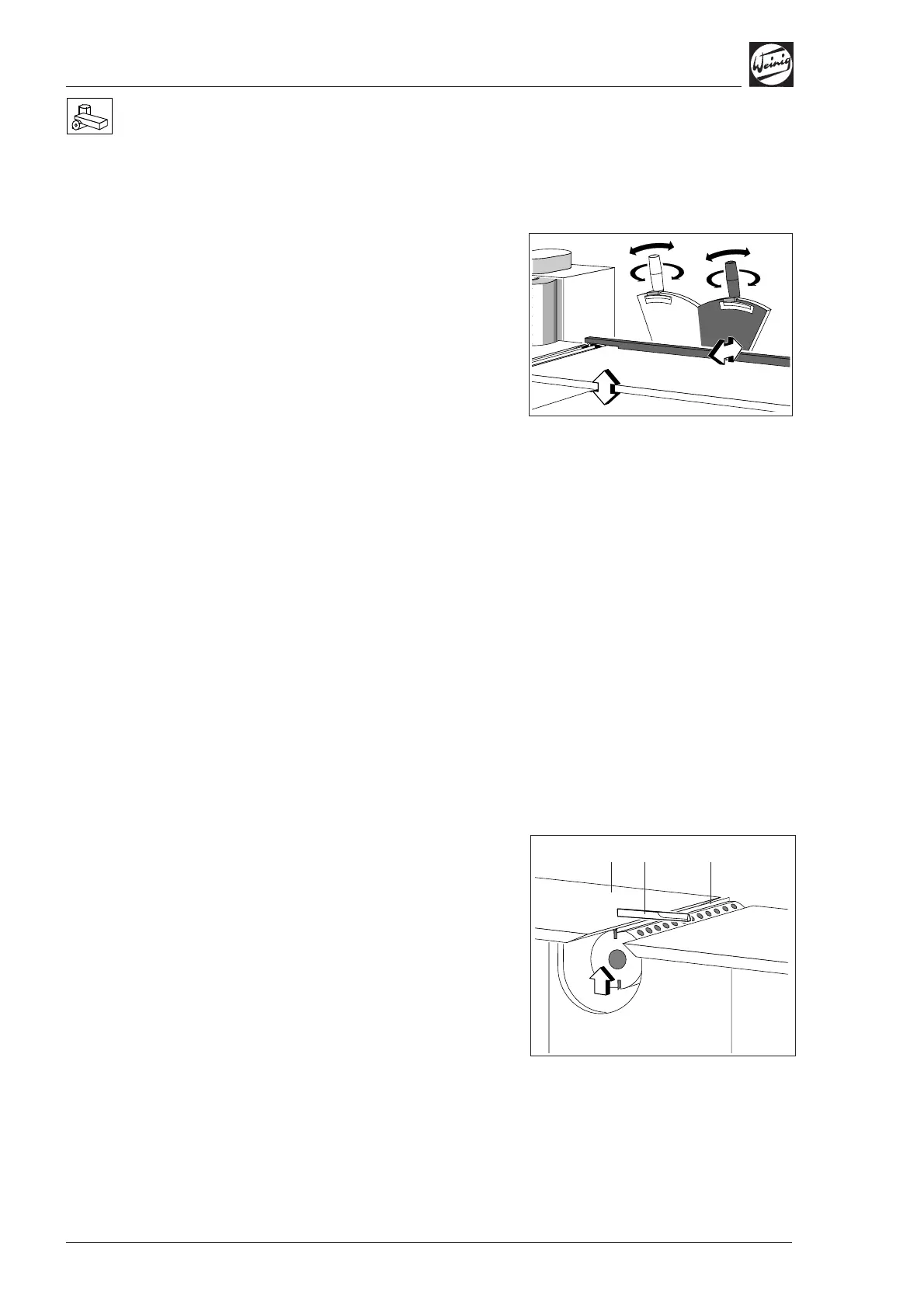

Infeed table
Straightening table
Straightening table up/down – chip removal on
the straightening spindle:
• Turn adjusting lever (1) to release it and adjust
height of table by 0 – 10 mm (0.394") up/down.
Edge-jointing fence forwards/backwards – chip
removal on the edge jointing spindle:
• Turn adjusting lever (2) to release it and adjust
position of edge-jointing fence by 0 – 10 mm
(0.394") forwards/backwards.
Straightening spindle
Radial basic setting
• Set straightening tool (1) in relation to setting
straight edge (2) on machine table (3).
• Release clamp for spindle slide.
• Adjust spindle via crank handle.
Check cutting edges over their full length. Align
cutter in tool if cutting edges (1) are not parallel
to machine table.
(1)
(2)
(1)
(3)
(2)
