Weinig Profimat 23 E - Feed System Setup

Tech. Dok. / L23 880 02 / 01.00.02 © MICHAEL WEINIG AG
Basic setting
4-16 Profimat 23 E
;
;;; ;;; ;;; ;;; ;;; ;;; ;;;
;;
a
b

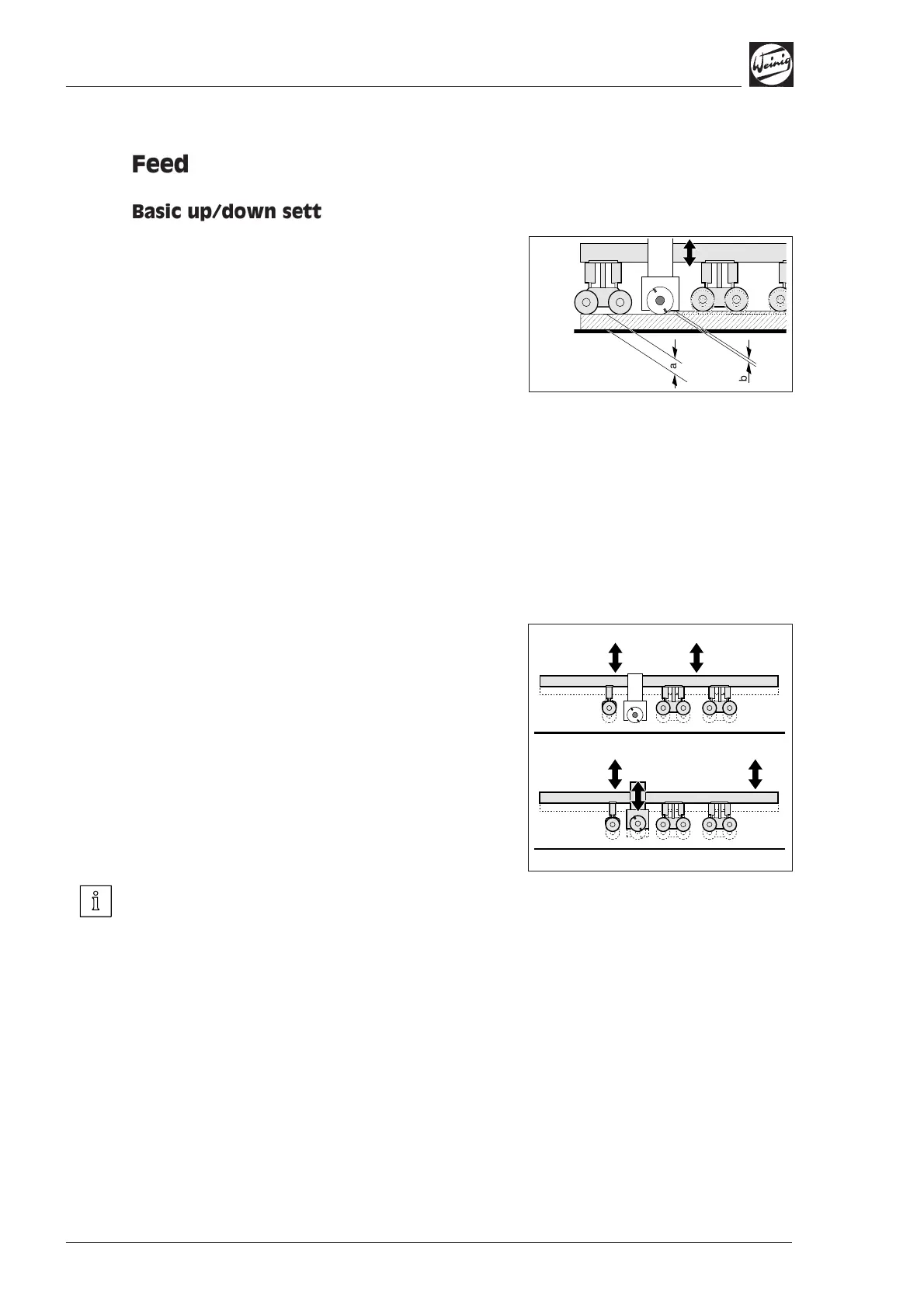

Feed
Basic up/down setting
• Set the feed beam, which can be infinitely
adjusted up/down, to the finished timber
height (a).
The difference in height between raw timber and
finished timber (b) is compensated by the
pneumatic pressure element.
Hold-down pressure
The hold-down pressure can be adjusted
separately for the feed rollers before and after the
top spindle. See page 2-7 for information on
pneumatic adjustments.
Motor-driven adjustment up/down
Two motor-driven adjustments can be effected:
• Only feed beam up/down.
Disengage top spindle in this case.
Feed beam and first top spindle up/down:
• Engage top spindle.
• Disengage top spindle after adjustment.
Continuous feed cannot be switched on if the top
spindle is not disengaged.
