Weinig Profimat 23 E - Hydraulic Spindle Nut Operation

Tech. Dok. / L23 880 02 / 05.99.01 © MICHAEL WEINIG AG
Machine options
6-4 Profimat 23 E
;;
;;
;;
;;

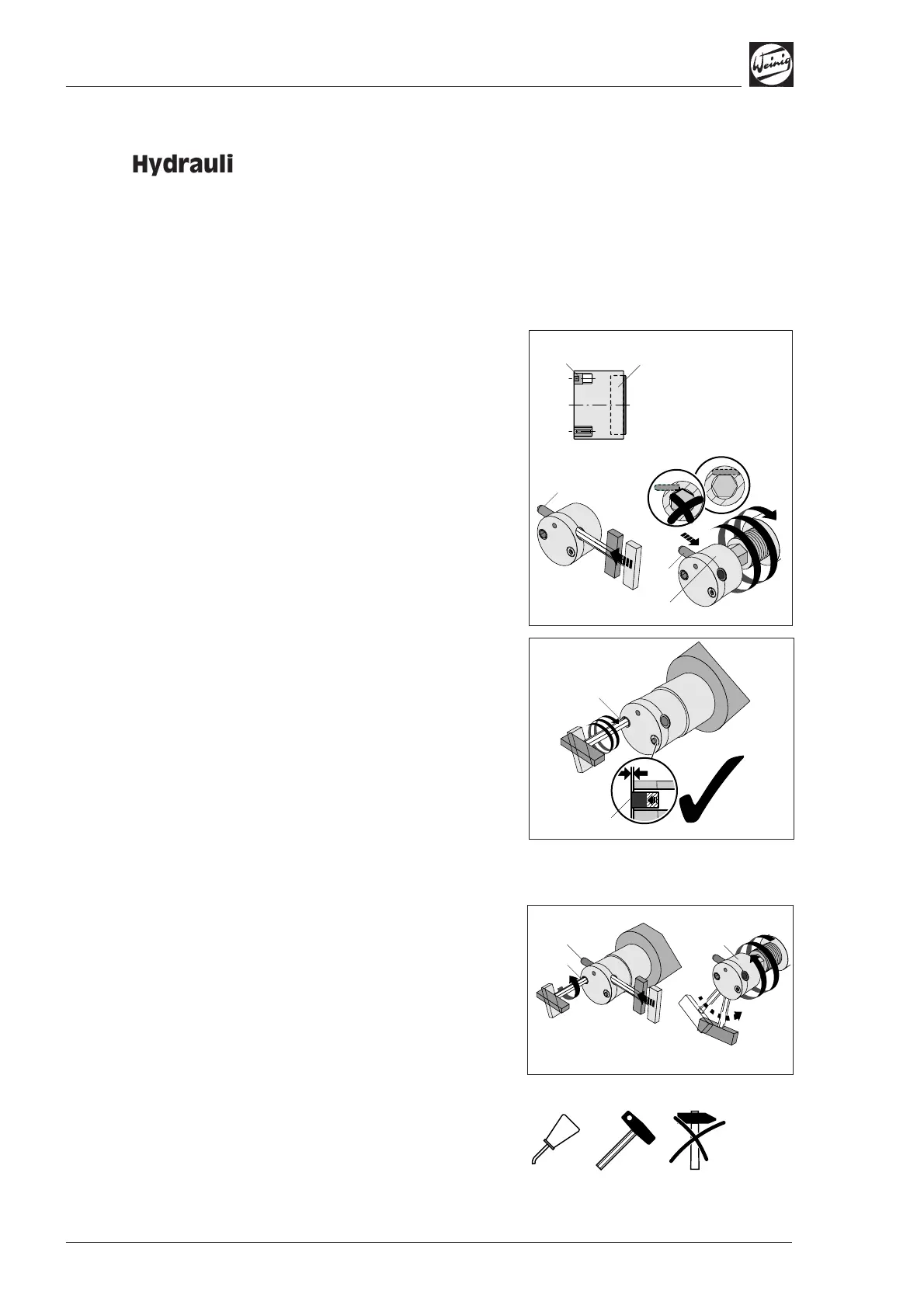

Hydraulic spindle nut
Application
The tools on the spindle are conveniently clamped
by hydraulic pressure.
Clamping tools
• Release clamping screw (1) (screw is flush with
cylinder surface).
• Drive out locking pin (3).
• Force pressure cylinder (2) back completely by
screwing it onto the spindle.
• Tightly screw on hydraulic spindle nut (4) and
back off slightly. Press home locking pin (3).
• Turn clamping screw (1) down until indicator
pin (5) protrudes slightly beyond cylinder
surface.
The tool is now clamped.
Releasing tools
• Release clamping screw (1).
• Press locking pin (3) outwards.
• Unscrew clamping nut.
(1)
(2)
(3)
(4)
(3)
(5)
(1)
(4)
(1)
(3)
