Setting up profiles
5-4 Profimat 23 E
63
15
57
36
79
15
22

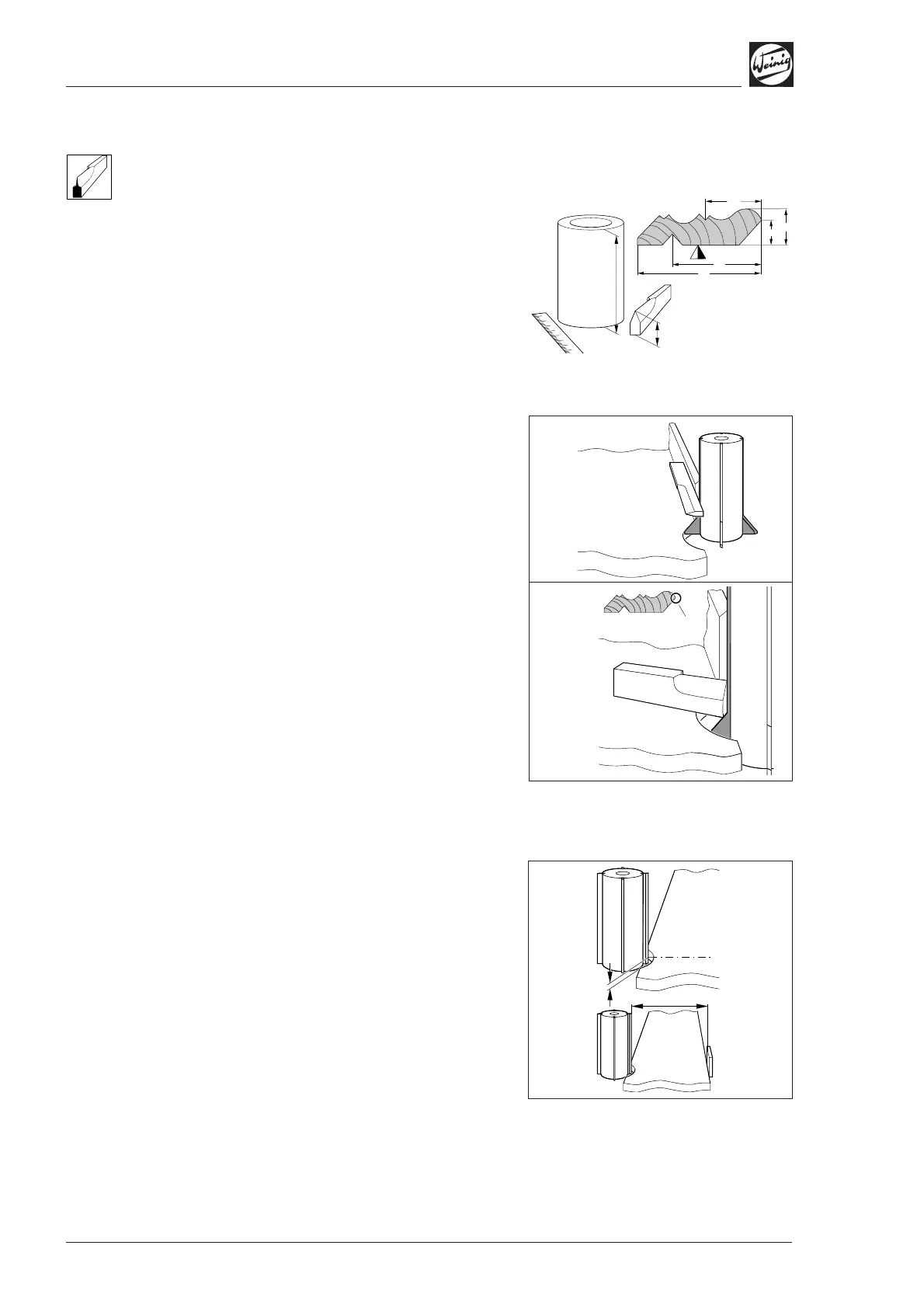

Set-up variation –
setting up with aids
Setting up profile tools to match the profile with
the use of aids, such as:
– Dimensioned setting straight edge
– Dimensioned spacer ring
– Ruler
Right-hand spindle
Example – radial:
• Set the smallest tool cutting circle in relation to
the fence after the spindle with the aid of the
setting straight edge.
Example – axial:
• Set tool point 1 on table level with the aid of the
setting straight edge.
• Adjust spindle 15 mm (0.590") upwards from
here.
Left-hand spindle
Example – axial:
• Move planing tool 5 mm (0.197") below the
table from its basic axial position.
Example – radial:
• Set planing tool to a workpiece width of
79 mm (3.110").
(1)
79
5
