Weinig Profimat 23 E - Reduced Distance Feed Assembly

Tech. Dok. / L23 880 02 / 05.99.01 © MICHAEL WEINIG AG
Machine options
6-2 Profimat 23 E
Reduced distance feed
assembly

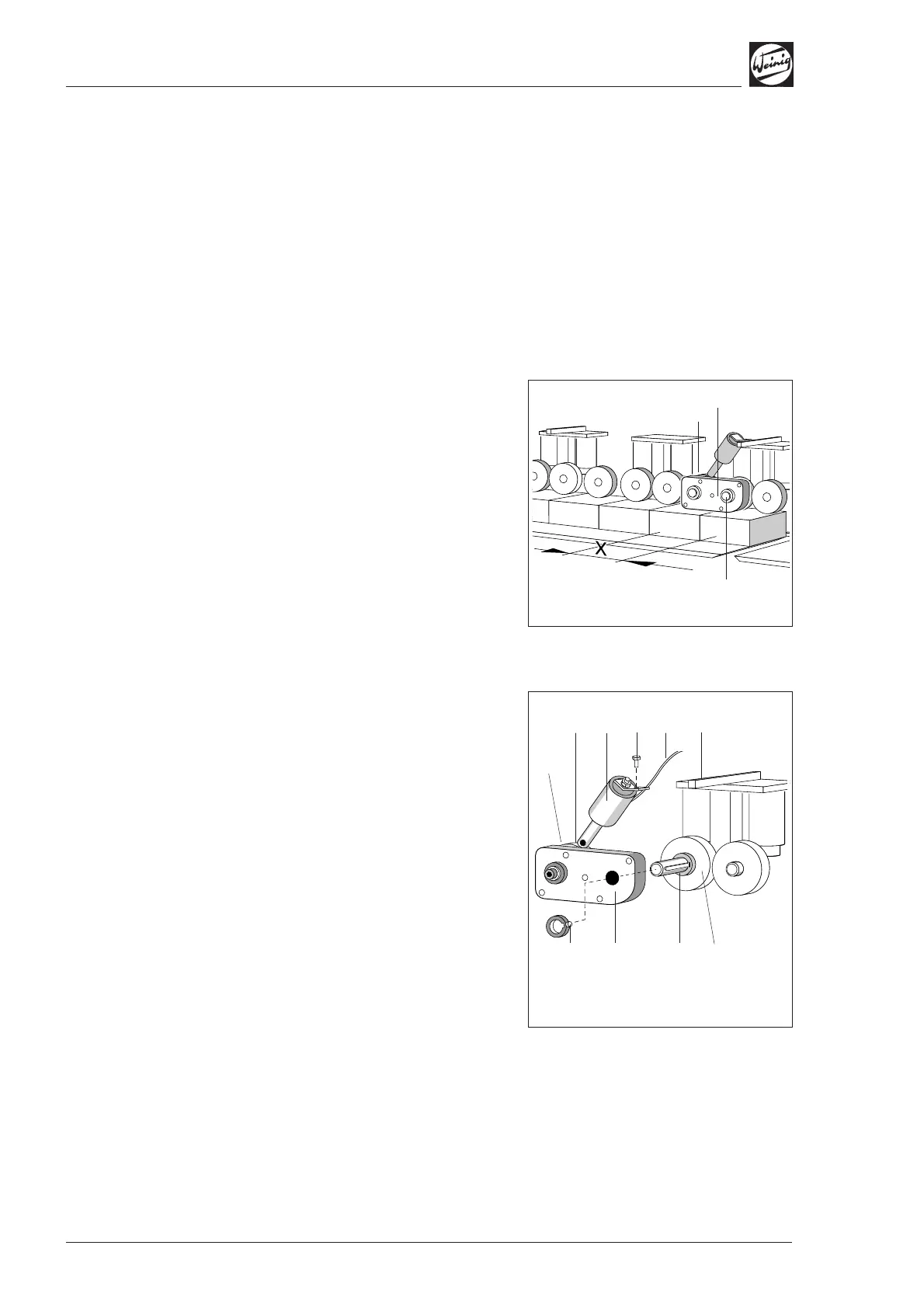

Application
Additional feed rollers on the feed beam make it
possible to transport particularly short
workpieces.
Versions
Depending on the machine configuration, one or
two float assemblies (1) with an additional feed
roller (2) each are mounted on the extended roller
shaft (3).
Basic setting up/down
• Set roller of feed assembly (9) to height of feed
roller (8) on the roller shaft via screw (2).
Basic setting forward/backward
• Set roller of first float assembly to centre of
workpiece with spacer rings (3).
Fitting the feed assembly
• Fit spacer ring (3).
• Fit feed assembly (1) and secure with clamping
screw (4).
• Tightly screw pneumatic cylinder / spring
pressure element (5) to holder (7) with screw (6).
• Plug pneumatic hose (10) into feed beam
pneumatic circuit.
(5) (6)
(4)
(2) (10)
(1)
(3)
(8)
(9)
(7)
(3)
(1)
(2)
