Operating elements
2-6 Profimat 23 E

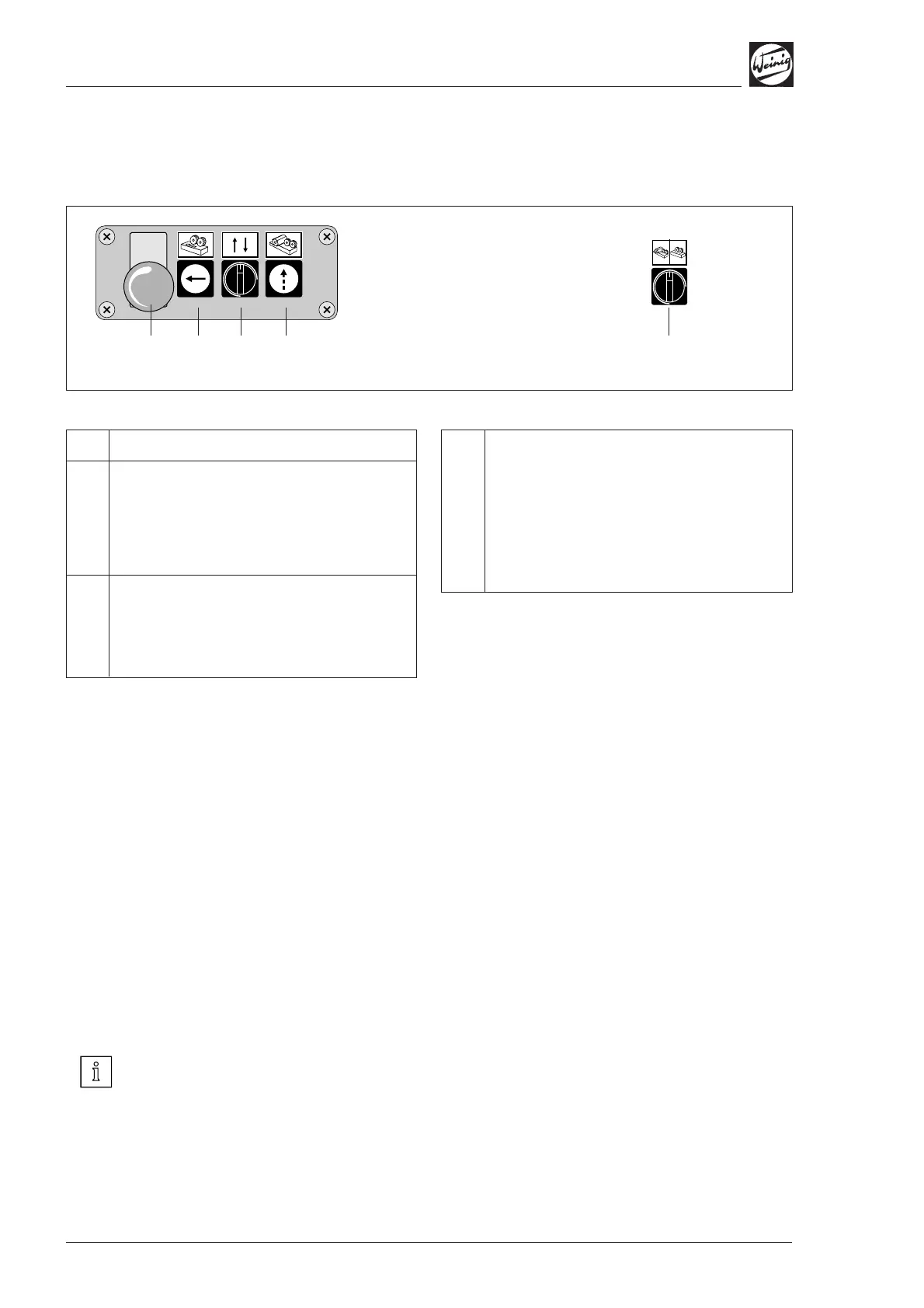

Control panels on the console
EMERGEN-
CY STOP
H1
H2
H3 H4
H4 Engage top spindle
Switch below pneumatic control panel
Left-hand position: Top spindle engaged
with feed unit
Right-hand position: Top spindle disen-
gaged from feed unit
H1 Feed forwards at inching speed
H2 Feed up/down – rough positioning,
motor-driven (optional)
Feed + 1st top spindle up/down when top
spindle is engaged with feed unit via switch
H4
H3 Feed up - fine positioning, motor-driven
Feed + 1st top spindle up when top spindle is
engaged with feed unit via switch H4
Adjusting the top spindle
The top spindle can optionally be motor-adjusted
in radial direction (up/down) together with the
feed.
Adjusting the top spindle
• Engage top spindle in feed via switch H4
(see above).
• Radially adjust spindle via H2 or H3.
• Disengage H4 again after adjustment.
Continuous feed cannot be started if the spindle is
not disengaged via H4 after adjustment.
