Operating elements
2-5Profimat 23 E
1st bottom spindle K1 Radial adjustment
(straightening (mechanical counter,
spindle) optional)
K2 Radial clamping
K3 Axial adjustment
K4 Axial clamping
1st right-hand K5 Radial adjustment
spindle K8 Radial clamping
(edge-jointing K7 Axial adjustment
spindle) K6 Axial clamping
1st left-hand K9 Radial adjustment
spindle K8 Radial clamping
K10 Axial adjustment
K11 Axial clamping
K9a (Optional, Digiset)
Lever up:
set tool radius
Lever down:
set workpiece
width
1st top spindle K12 Radial adjustment
K13 Radial clamping
K14 Axial adjustment
K15 Axial clamping
K12a (Optional, Digiset)
Lever up:
set tool radius
Lever down:
set workpiece
height
H2 (optional,
H3 see next page)
2nd bottom spindle K16 Radial adjustment
K17 Radial clamping
K18 Axial adjustment
K19 Axial clamping
Universal spindle K20 Adjustment up/down
K21 Adjustment forward/
backward
K22 Adjustment for
angular position
K23 Central clamp for
adjustment up/down,
forward/backward
and angle
0000 1

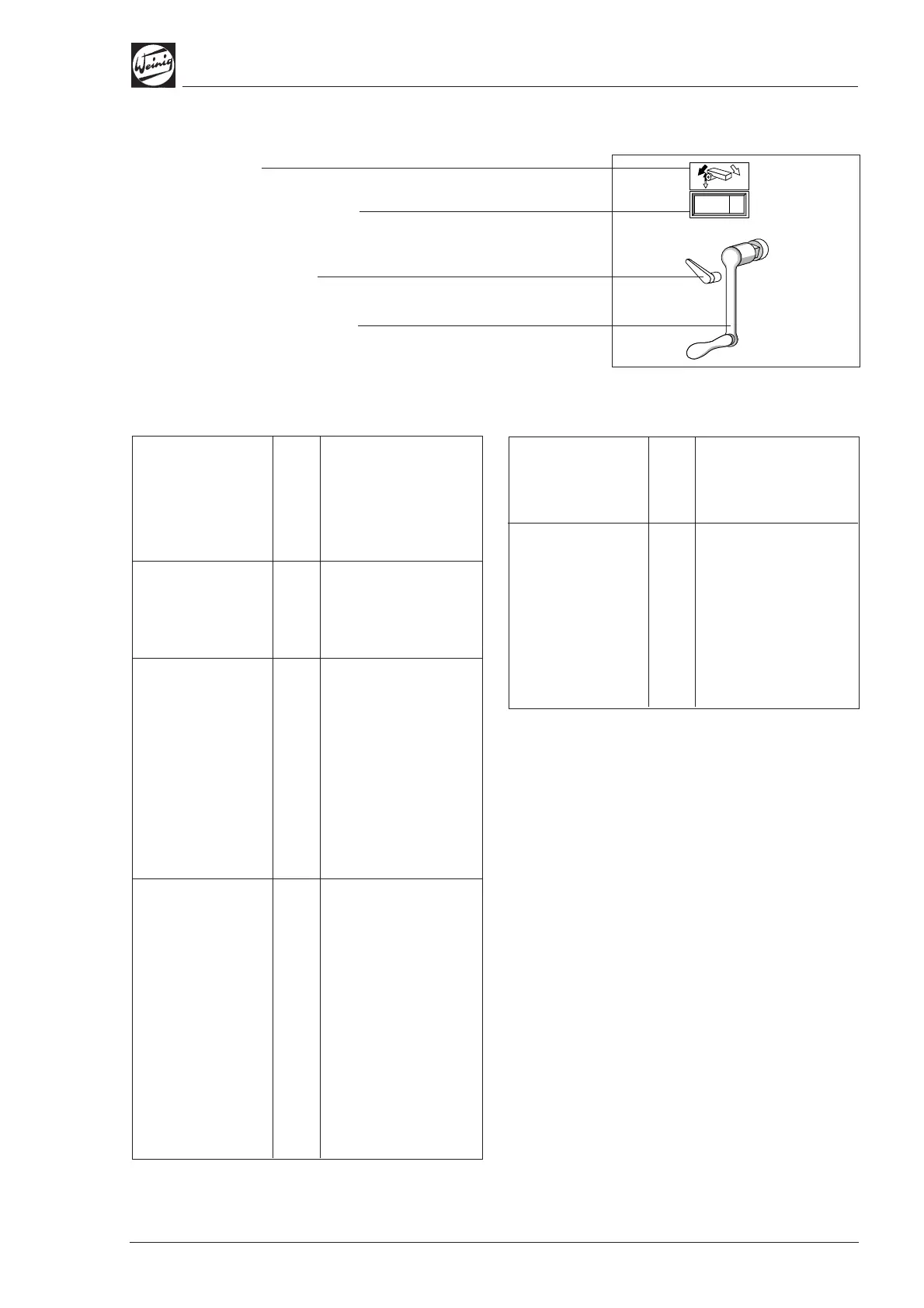

Spindle symbol
Mechanical counter showing
spindle position
Spindle clamping lever
Handle on crank journal for
spindle adjustment
