Weinig Profimat 23 E - Machine Operating Elements; Overview of Machine

Tech. Dok. / L23 880 02 / 05.99.01 © MICHAEL WEINIG AG
Operating elements
2-1Profimat 23 E

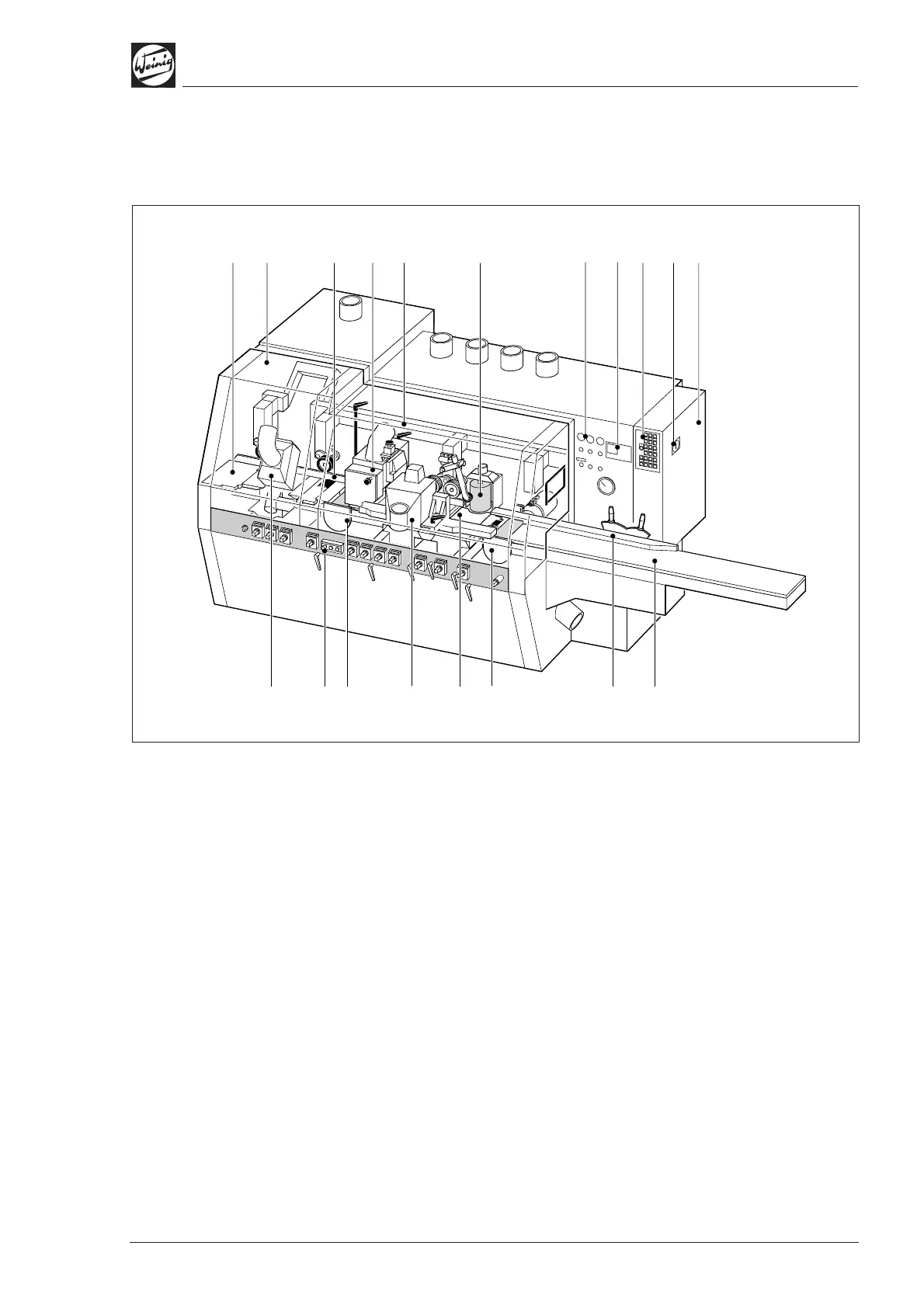

Overview of machine
Spindles
12 First bottom spindle
(straightening spindle)
13 First right-hand spindle
(edge-jointing spindle)
14 First left-hand spindle
15 First top spindle
16 Second bottom spindle
17 Universal spindle
Machine controls
1 Master switch on control
cabinet
2 Control systems (optional)
3 Control panel with
Emergency OFF button
4 Pneumatic control panel
5 Control panels on the
console with Emergency
OFF button
Workpiece guidance
6 Infeed table
7 Edge jointing fence
8 Machine table
9 Machine fence
10 Outfeed table
11 Feed beam
Protected components
for accident preven-
tion
18 Control cabinet, locked
by master switch in
position "I"
19 Machine hood:
machine cuts off when
hood is opened.
If "Hood interlock with
delayed release"
(optional) is installed, the
hood remains interlocked
for approx. 180 seconds
after switching off the
machine.
10
17 5 16 14 8 12 7 6
19 9 15
11
13 4 2 3 181
