Weinig Profimat 23 E - Rebate Cutter Setup (Optional)

Tech. Dok. / L23 880 02 / 01.00.02 © MICHAEL WEINIG AG
Basic setting
4-5Profimat 23 E

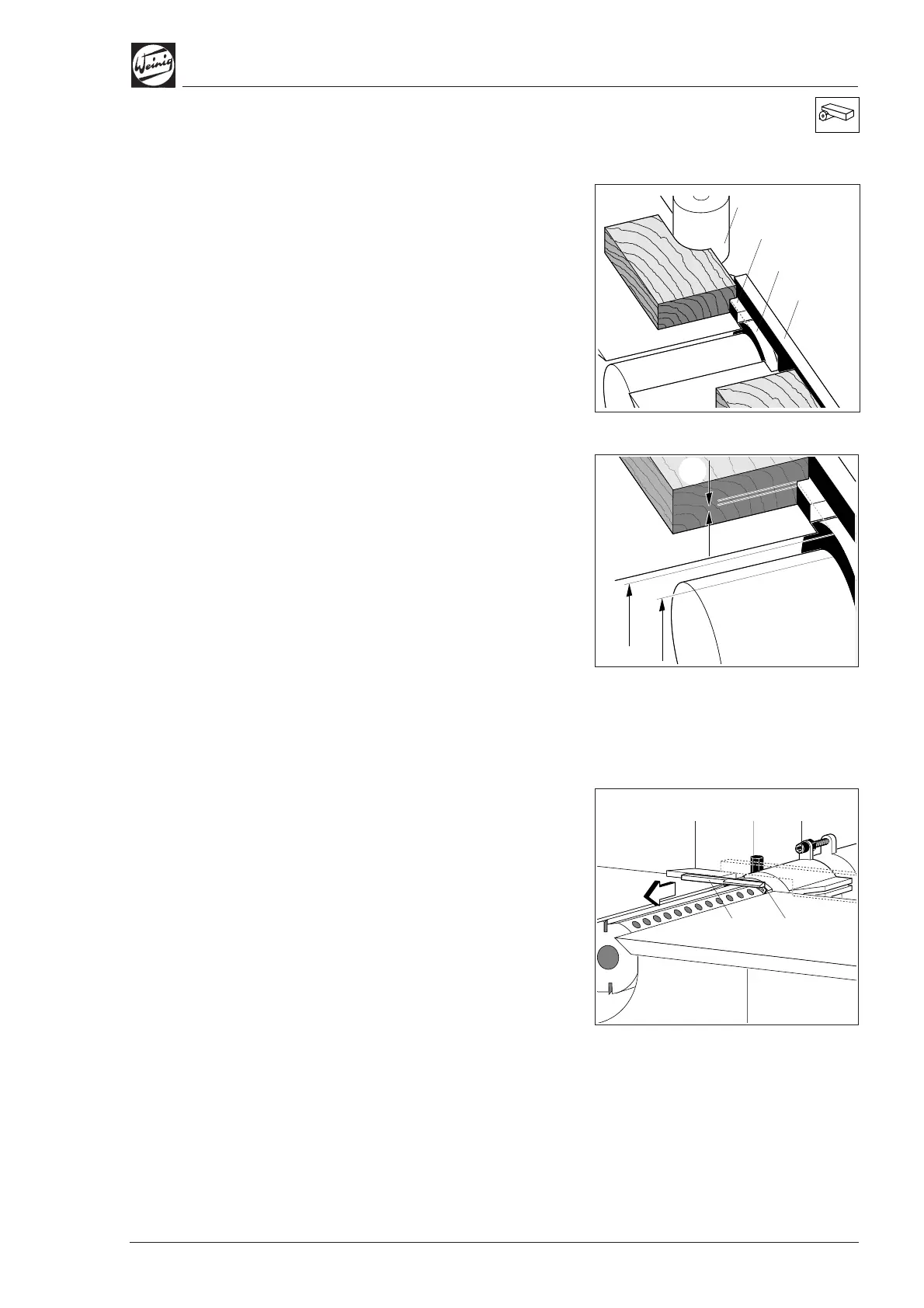

Rebate cutter (optional)
Rebate cutter (1) cuts a rebate. When the timber
reaches rebate fence (2), it is guided by the rebate
fence at the side instead of by the edge-jointing
fence (3).
The rebate is planed off again by edge-jointing
spindle (4).
Tool specification
Since the rebate cutter and straightening spindle
are adjusted simultaneously in radial direction,
their diameters must be matched with one
another.
Tool specifications: rebate cutter dia. 145 mm
(5.70"), straightening tool dia. 125 mm (4.92").
Only this tool combination will ensure that the
rebate cutter always clears slightly more (1) than
the height of the rebate fence in axial direction.
Axial basic setting
The axial basic setting of the spindle sets the
rebate cutter (1) in relation to the rebate fence (2).
• Position setting straight edge (3) against rebate
fence (2).
• Release clamp (4) and adjust rebate cutter (1) in
relation to setting straight edgevia hexagon
socket head screw (5).
• Continue to adjust spindle until at least one
cutting edge of the rebate cutter (spur) lightly
touches the setting straight edge.
Ø 145
Ø 125
(1)
(2) (5)(4)
(1)(3)
(3)
(1)
(2)
(4)
