Tech. Dok. / L23 880 02 / 01.00.02 © MICHAEL WEINIG AG
Basic setting
4-13Profimat 23 E

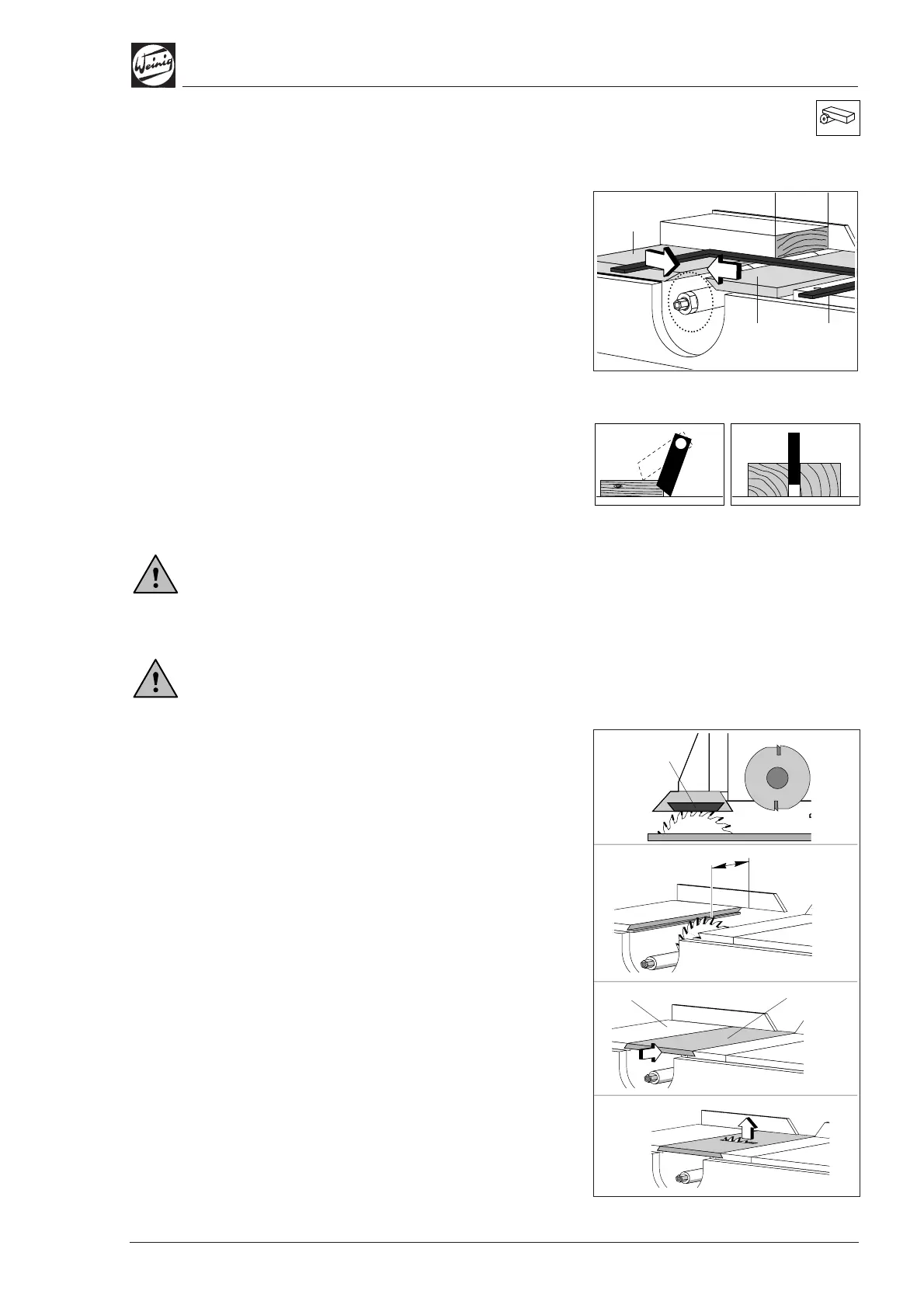

Adjust table plates
•
Set table plates (1) in line with tool cutting circle.
Adjust left guide
Left guides of different lengths are fitted near the
top and bottom spindles, depending on the
machine configuration.
• Set left guide (2) to timber width.
Fitting a circular saw
Such safety devices as the anti-kickback
device (1) or catcher and the splitting wedge (2)
from WEINIG are required when working with
a circular saw (refer also to the chapter headed
Safety, page 0-9).
The risk of accidents is greater when working
with a circular saw. Please consult WEINIG
without fail before making the basic setting
which is merely outlined in global terms below.
Anti-kickback devices, catchers and splitting
wedges should be ordered from WEINIG.
• Adjust splitting wedge to saw blade. Use
pressure shoe with wooden insert (5) and
adjust to timber height. Fit anti-kickback
device or catcher.
Refer to the technical data with regard to the
maximum saw blade diameter.
• Axially adjust saw blade to finished size (1) in
relation to fence.
• Fit special table plates (2). Place wooden
insert (3) in guide groove and clamp into place
with table plates.
• Switch on bottom spindle. Slowly move the
saw through the wooden insert from the bottom
upwards (4).
(1)
(1) (2)
(1)
(2)
(1)
(5)
(4)
(2) (3)
