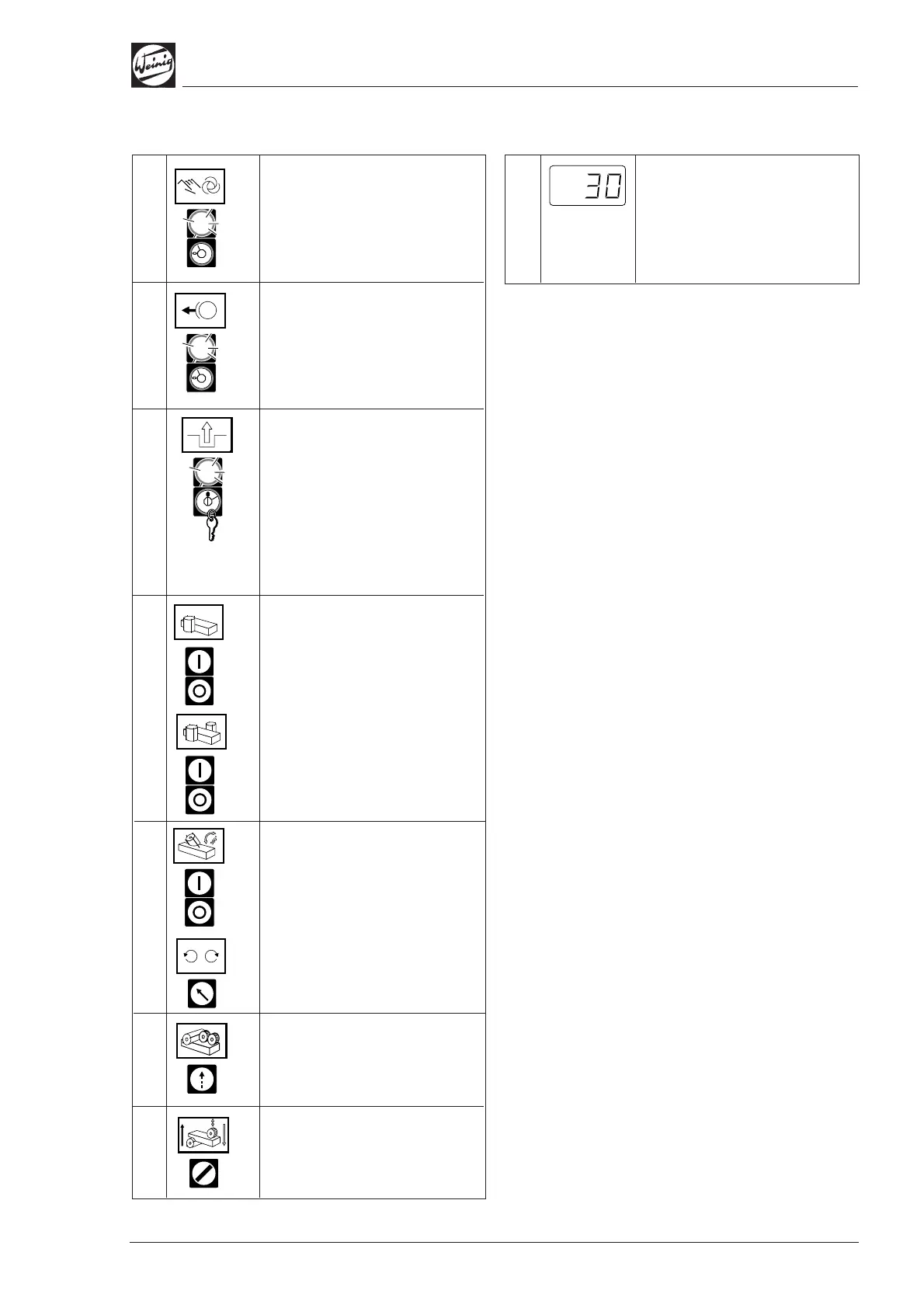

Operating elements
2-3Profimat 23 E
Mode selector
(key-operated switch)
Automatic "1"
Manual "0"
Release spindle brakes
(optional)
Lights up immediately when
"Brakes released". Brake is
released after approx. 10 s.
Spindle brake released "1"
Spindle brake locked "0"
Hood interlock with delayed
release (optional)
(Key-operated switch)
Open hood "1"
Close hood "0"
The machine is switched off
completely when switching over
to "1", but the hood remains
locked for approx. 180 seconds
(time for spindles to come to a
complete halt).
Spindle motors on/off
individually
Same order as on the machine
First right and left-hand
spindle on/off together
Universal spindle, spindle motor
on/off
Direction of rotation, universal
spindle Clockwise /
counterclockwise rotation
MTS (optional)
Accurate positioning, top spindle
upwards in inching mode
Cycle infeed roller up/down
B8
B9
B10
B11
B12
B13
B14
…
SERVICE CONTROL
(optional)
Note operating instructions for
"SERVICE CONTROL": service
intervals must be programmed
and displayed
E14
