Machine options
6-13Profimat 23 E
Timber lengths:
Approx. 0.3 – 0.8 m a = 11.9 mm
> 0.8 m a = 11.8 mm
or less
Spacer rings supplied:
1 spacer ring 11.5 mm
8 spacer rings 10.0 mm
1 spacer ring 9.0 mm
1 spacer ring 8.0 mm
2 spacer rings 0.2 mm
3 spacer rings 0.1 mm

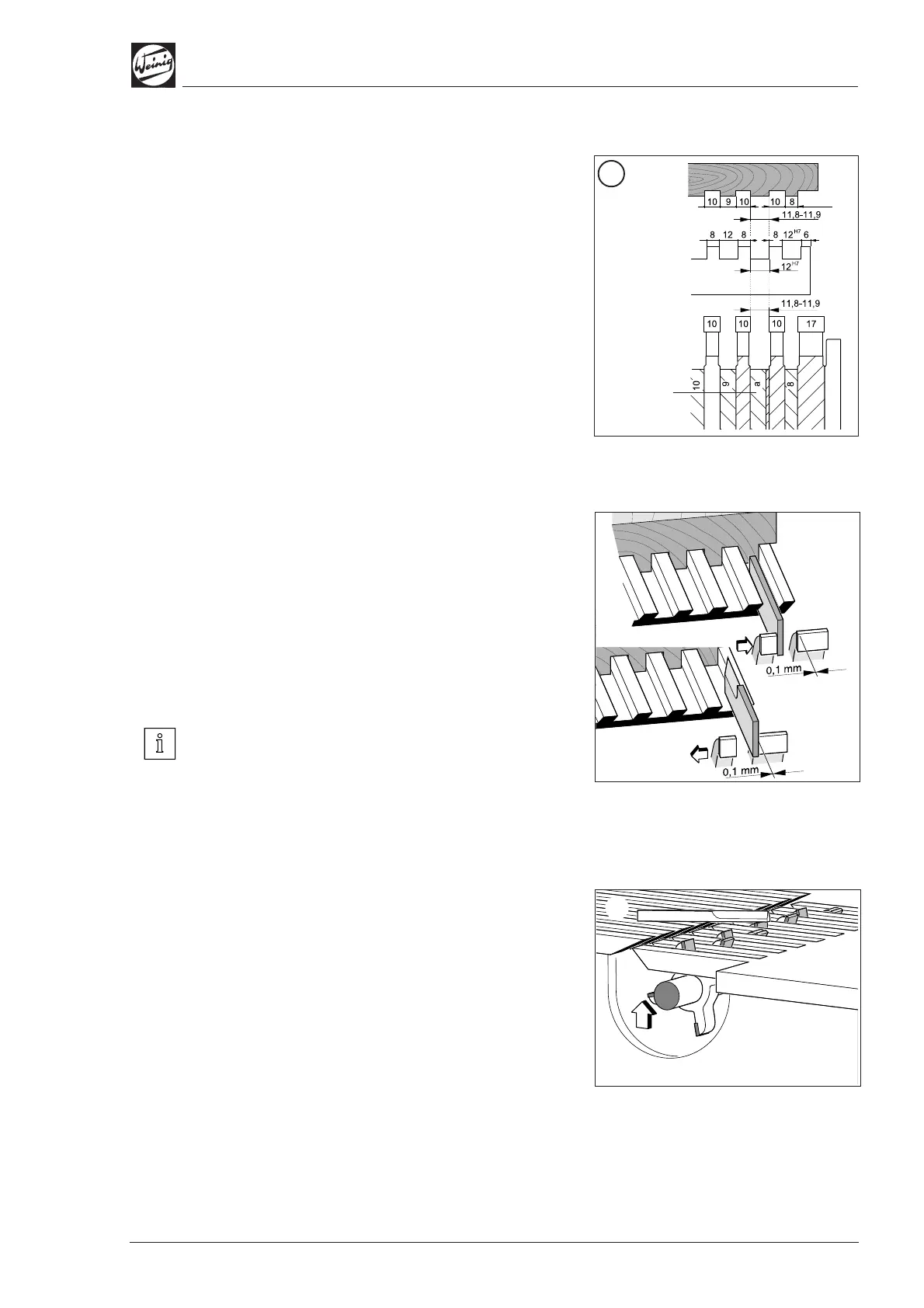

Axial basic setting
• Position setting straight edge against side of
ridge in first groove.
• Release clamp and adjust spindle in axial
direction.
• Turn setting straight edge through 180° and
position it against the opposite ridge.
• Continue axial adjustment until the spurs on
both sides of the guide groove have been set
uniformly.
If the groove cutters are resharpened, the width of
the guide ridge must be checked and corrected
with the aid of intermediate spacer rings if
necessary.
Radial basic setting
• Place setting straight edge on ridges (1).
• Radially adjust groove cutter from bottom to
top.
• Check each individual cutter with the setting
straight edge.
Maximum concentric running tolerance between
groove cutters:
0.02 – 0.03 mm (0.001 – 0.002 inch)
(1)
(a)
B
