Maintenance and care
9-7Profimat 23 E

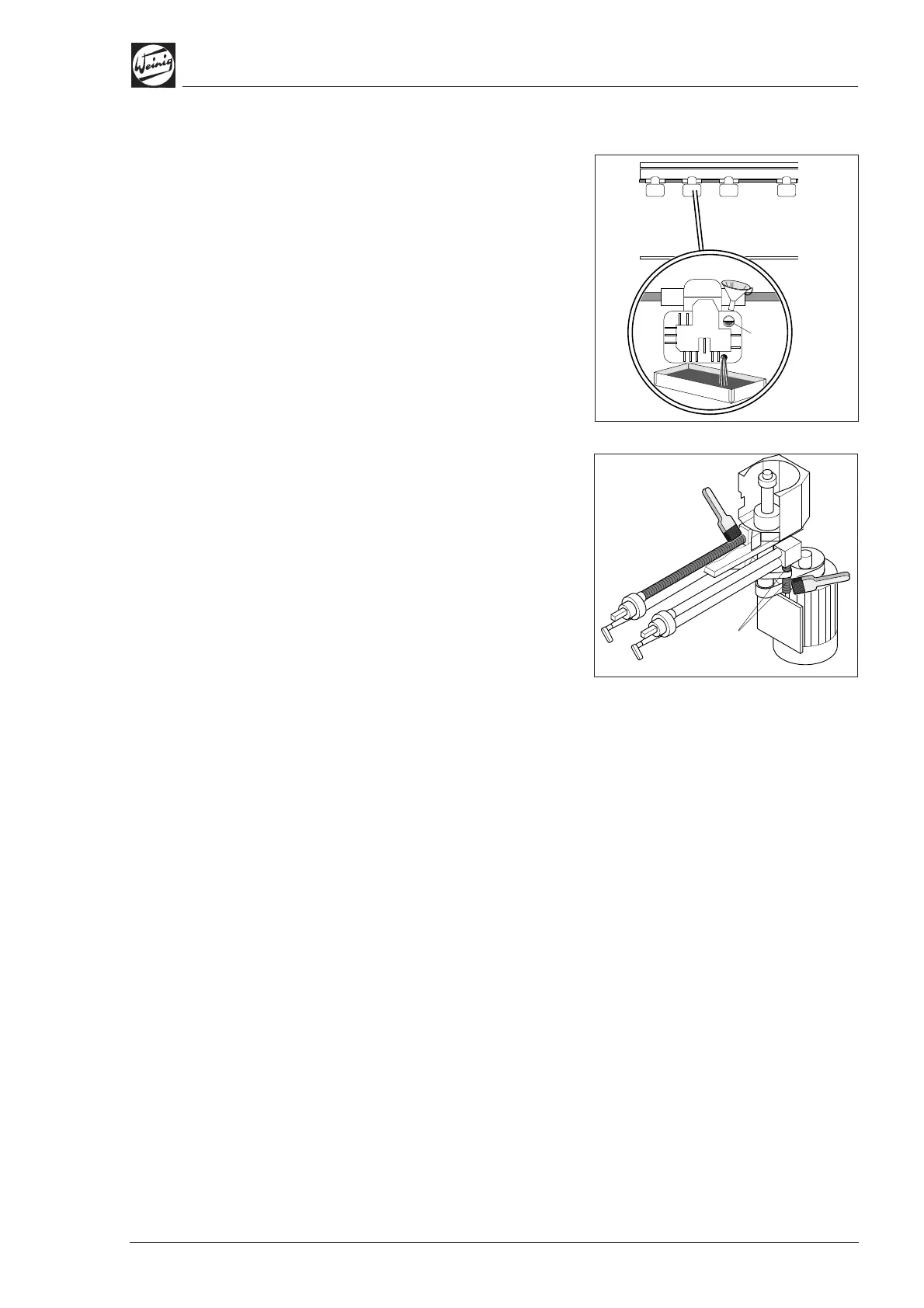

Feed gear
Check gear box for leaks.
Check oil level on viewglass (1).
Top up with oil if oil level is not visible.
• Capacity approx. 800 to 1250 ccm.
• Remove steel burrs from magnetic drain plug.
• Fill with gear oil through filter until level reaches
mark on viewglass.
Threaded spindles
Note: The diagram merely illustrates the basic
principle and not the situation in your machine.
• Remove grease residues and dust from the
spindle.
• Lubricate the threaded spindle up/down (1) and
threaded spindle forwards/backwards (2) with a
brush directly in front of the spindle nut.
(1)
(2)
(1)
