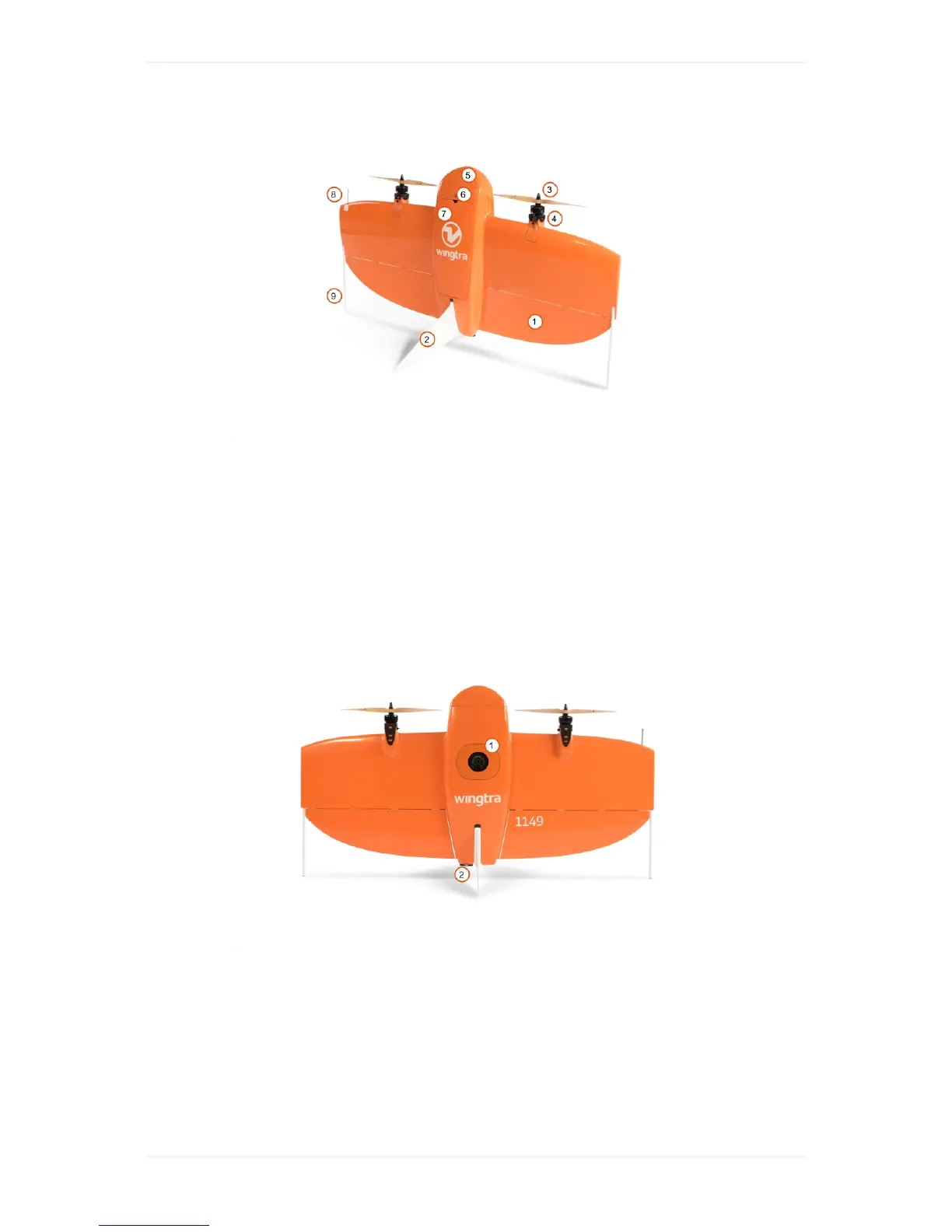

1. Flaps

2. Middlestand

3. Propellers

4. Motors

5. Batterycompartment

6. Ready-to-Flybutton

7. Topcover-accesstocamera,electronics

8. Airspeedsensor(PitotTube)

9. Sidestands

1. Payload(Camera)

2. Distancesensor
