WingtraOneDeliveries

WingtraOneisaVTOLdronewiththecapabilityoftakingoffandlandingverticallylikeahelicopter.

Formappingmission,ittransitionsintocruiseflightregimeandmatchestheenduranceandspeedof

fixed-wingairplanes.

YourWingtraOneisshippedwiththefollowingaccessories.

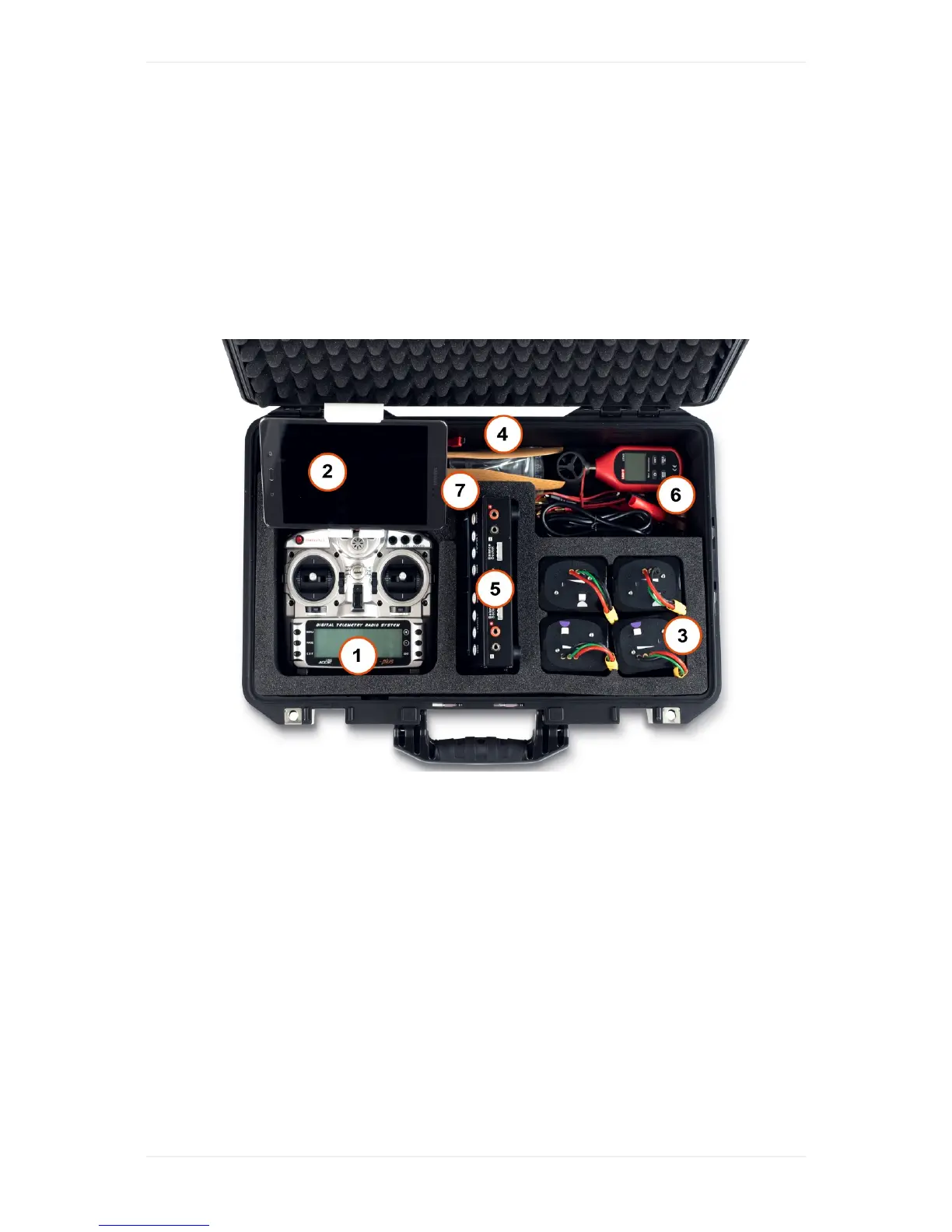

PilotBox

1. Remotecontrol(RC)

2. Tablet

3. Flightbatteries(2flightsets)

4. Telemetry

5. Charger

6. Chargingcables,Windmeasuringtool

7. Pitotcoveringtool,SDcardadapter,Hex-wrenchtool

WingtraOne

WingtraOneDeliveries
