GENERAL
L3301, L3901, L4701, WSM
G-87

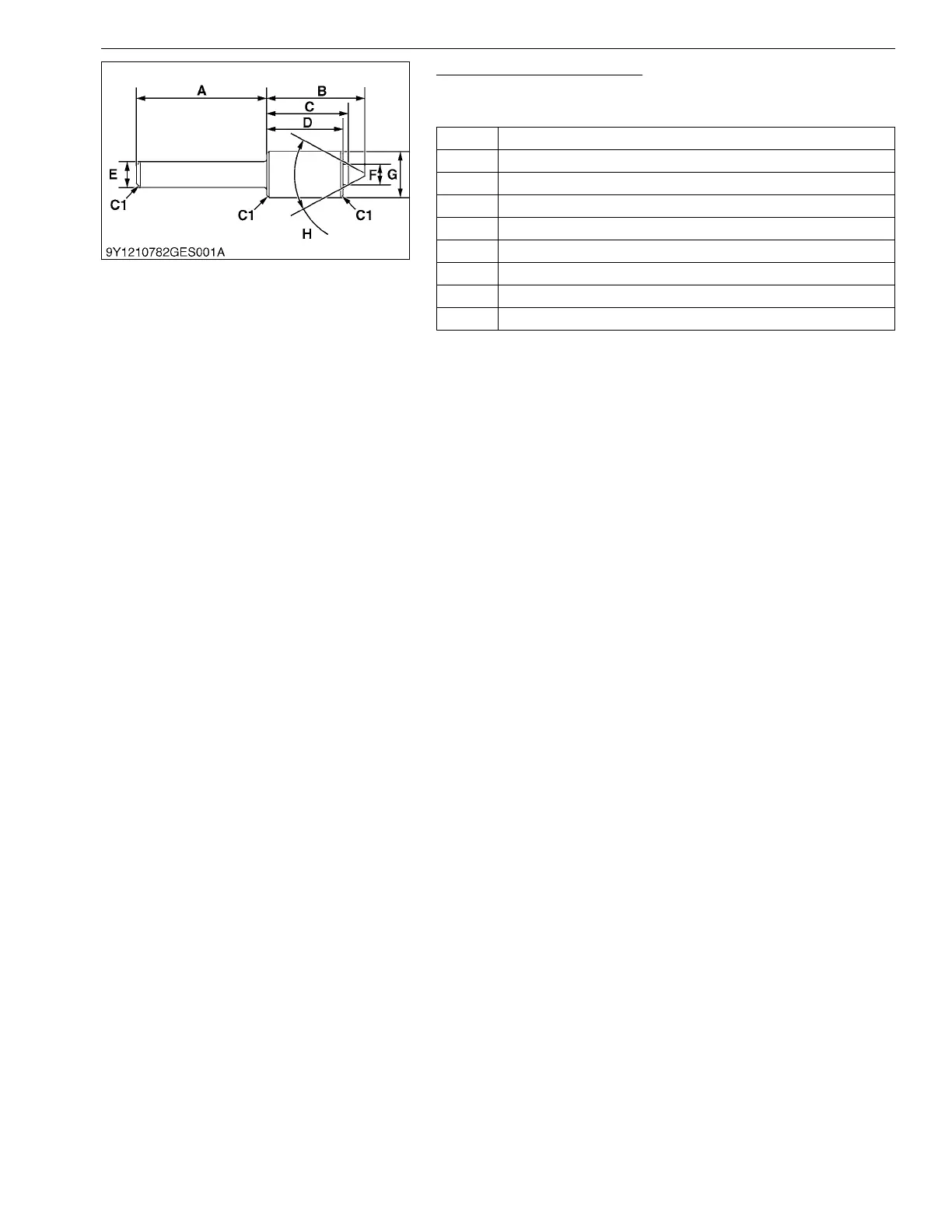

Injection Top Correction Jig
Application
• To detects and position the sensor in top-dead center position.
9Y1211012GEG0018US0
A 60 mm (2.4 in.)
B 45 mm (1.8 in.)
C 37.3 mm (1.47 in.)
D 3.5 mm (1.4 in.)
E 12 mm dia. (0.47 in. dia.)
F 10 mm dia. (0.39 in. dia.)
G 20.34 to 20.50 mm dia. (0.8008 to 0.8070 in. dia.)
H 1.0 rad (60 °)
C1 Chamfer 1.0 mm (0.079 in.)
KiSC issued 09, 2016 A
