GENERAL
L3301, L3901, L4701, WSM
G-88

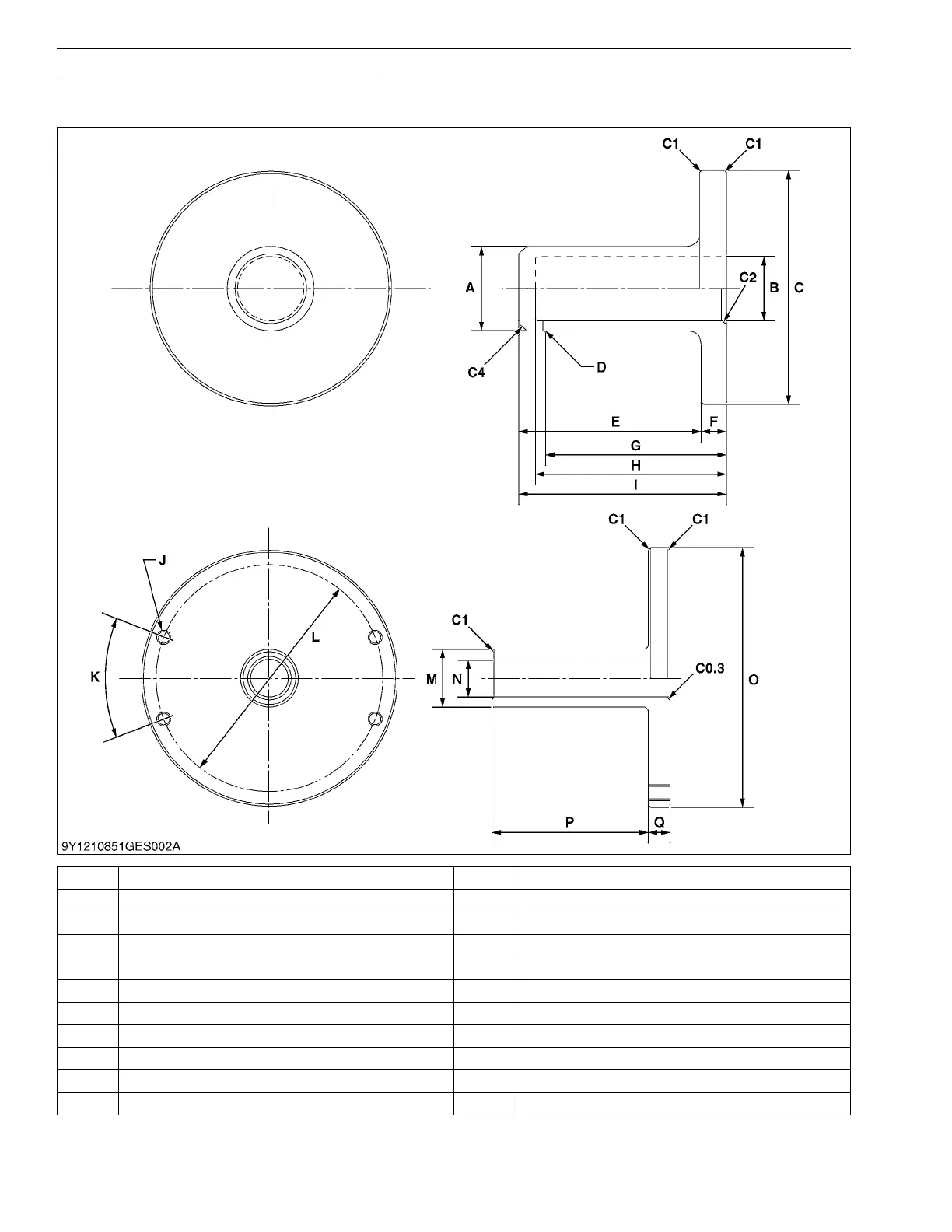

Bearing Case Cover Oil Seal Replacing Tool
Application
• To install bearing case cover oil seal.
9Y1211012GEG0019US0
A 42 mm dia. (1.7 in. dia.) L 129 mm dia. (5.08 in. dia.)
B 32 to 32.025 mm dia. (1.260 to 1.261 in. dia.) M 31.950 to 31.975 mm dia. (1.2579 to 1.2588 in. dia.)
C 116 mm dia. (4.57 in. dia.) N 22 mm dia. (0.87 in. dia.)
D 3 mm dia. (0.1 in. dia.) O 145 mm dia. (5.71 in. dia.)
E 88 mm (3.5 in.) P 90 mm (3.5 in.)
F 12 mm (0.47 in.) Q 12 mm (0.47 in.)
G 88 mm (3.5 in.) C0.3 Chamfer 0.3 mm (0.01 in.)
H 92 mm (3.6 in.) C1 Chamfer 1.0 mm (0.039 in.)
I 100 mm (3.94 in.) C2 Chamfer 2.0 mm (0.079 in.)
J M8 × Pitch C4 Chamfer 4.0 mm (0.2 in.)
K 0.70 rad (40 °)
KiSC issued 09, 2016 A
