[B] Rear Wheels

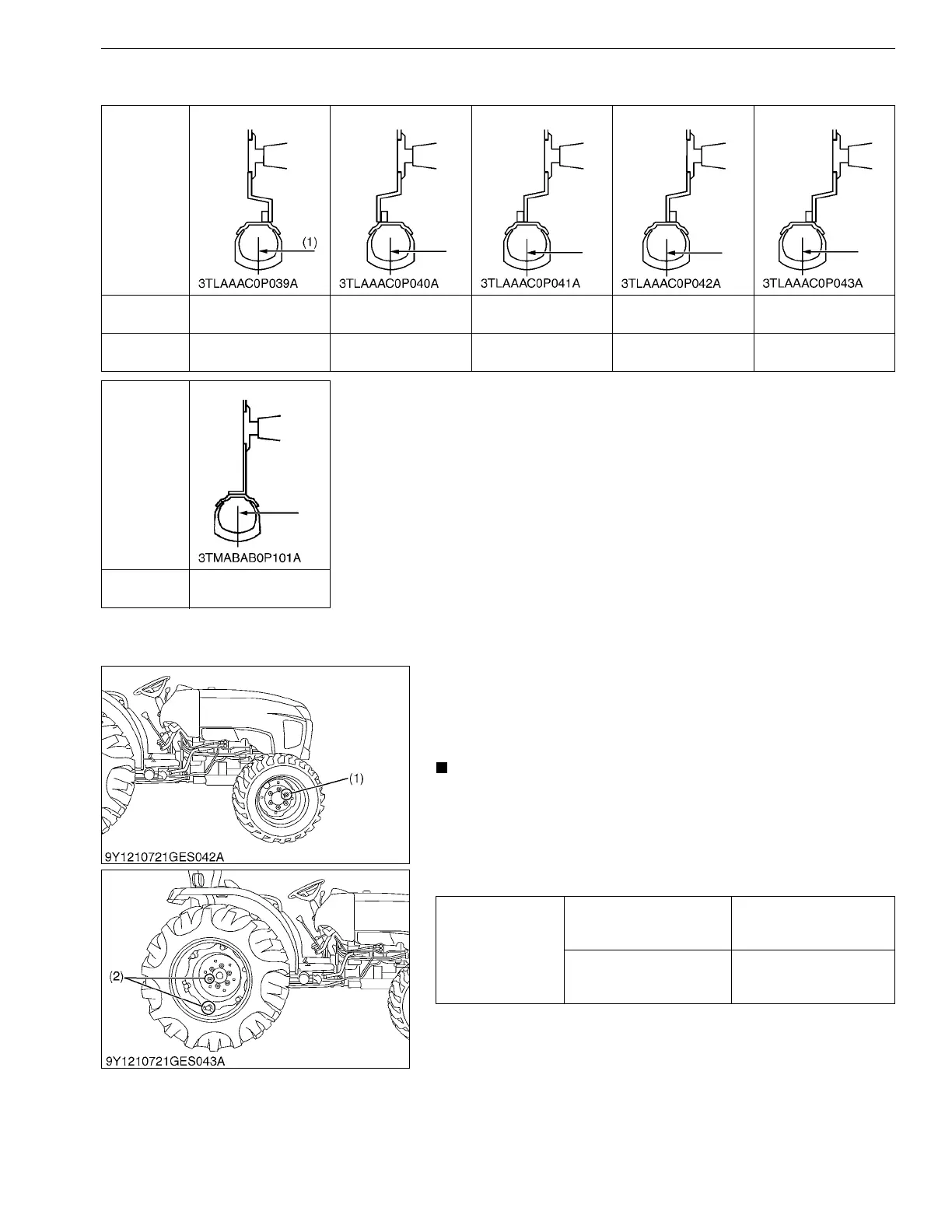

Rear tread can be adjusted in 6 steps.
9Y1211012GEG0044US0
To adjust the tread
1. Lift the rear tires off the ground.
2. Remove the wheel rim and / or disk mounting bolts.
3. Change the position of the rim and / or disk (right and left) to the
desired position, and tighten the bolts.
• If not attached as illustrated, transmission parts may be
damaged.
• When re-fitting or adjusting a wheel, tighten the bolts to the
following torques then recheck after driving the tractor
200 m (200 yards) and thereafter according to service
interval.
9Y1211012GEG0045US0
Models
14.9-24
Farm
1180 mm (46.5 in.) 1200 mm (47.2 in.) 1300 mm (51.2 in.) 1450 mm (57.1 in.) 1545 mm (60.8 in.)
17.5L-24
Industrial
– 1250 mm (49.2 in.) 1360 mm (53.5 in.) 1390 mm (54.7 in.) 1500 mm (59.1 in.)
Models
44 × 18-20
Turf
1430 mm (56.3 in.)
(1) Tread
Tightening torque
Front wheel mounting
screw and nut or lug nut
124.0 to 147.0 N·m
12.6 to 15.0 kgf·m
91.5 to 108.4 lbf·ft
Rear wheel mounting
screw and nut
196.0 to 225.0 N·m
20.0 to 23.0 kgf·m
144.6 to 166.0 lbf·ft
(1) Front Wheel Mounting Screw and
Nut or Lug Nut
(2) Rear Wheel Mounting Screw and
Nut
