CLUTCH
L3301, L3901, L4701, WSM
2-S9

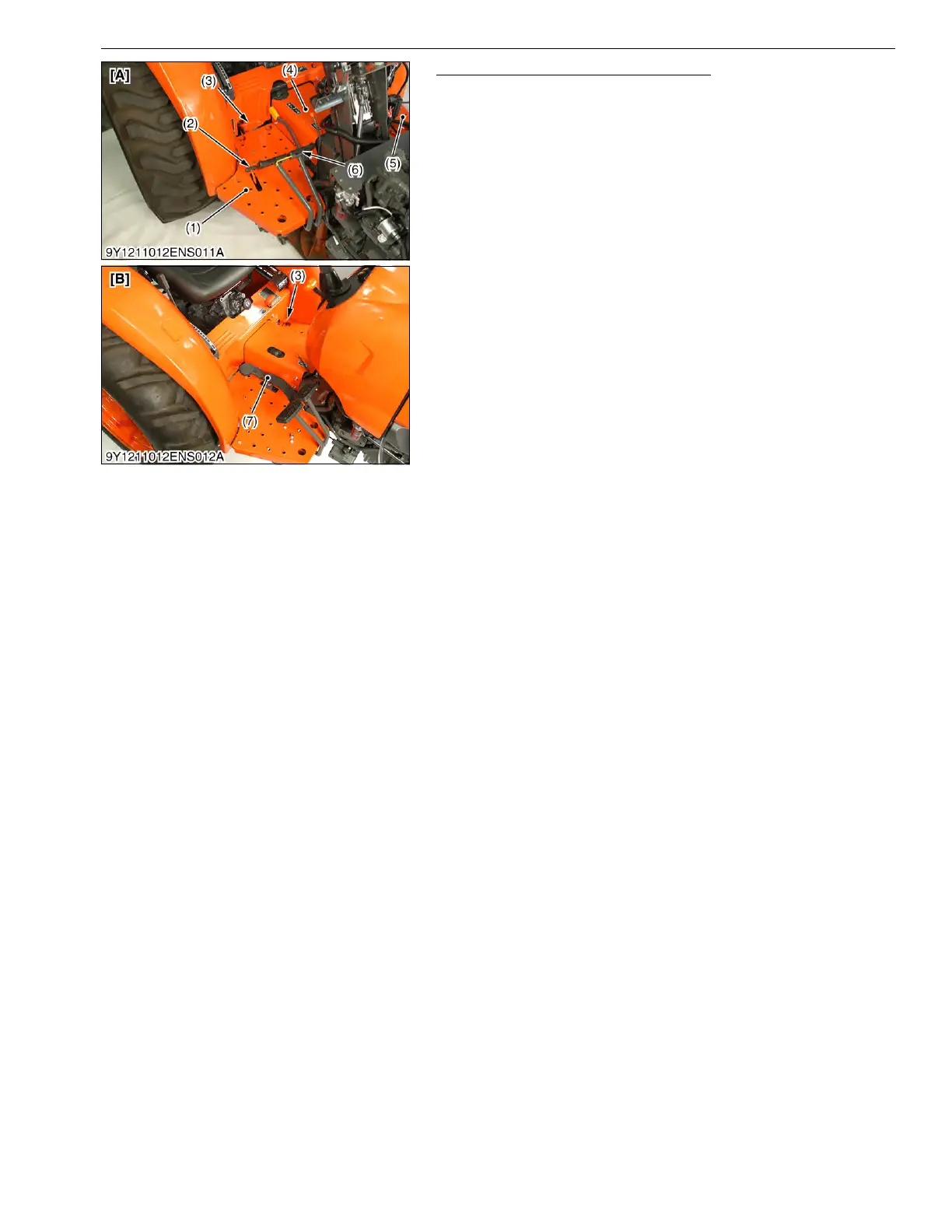

Step and Center Cover (L3301/L3901)
1. Remove the center cover (4).
2. Disconnect the throttle cable from the throttle pedal (2).
3. Remove the HST pedal (7).
4. Disconnect the differential lock spring and rod from the
differential lock lever (3).
5. Remove the brake pedal springs from the brake pedals (6).
6. Remove the R.H. step (1).
7. Remove the clutch pedal spring from the clutch pedal.
8. Remove the L.H. step (5).
9Y1211012ENS0022US0
(1) R.H. Step
(2) Throttle Pedal
(3) Differential Lock Lever
(4) Center Cover
(5) L.H. Step
(6) Brake Pedal
(7) HST Pedal
[A] FW and DW Model
[B] DHW Model
KiSC issued 09, 2016 A
