CLUTCH
L3301, L3901, L4701, WSM
2-S10

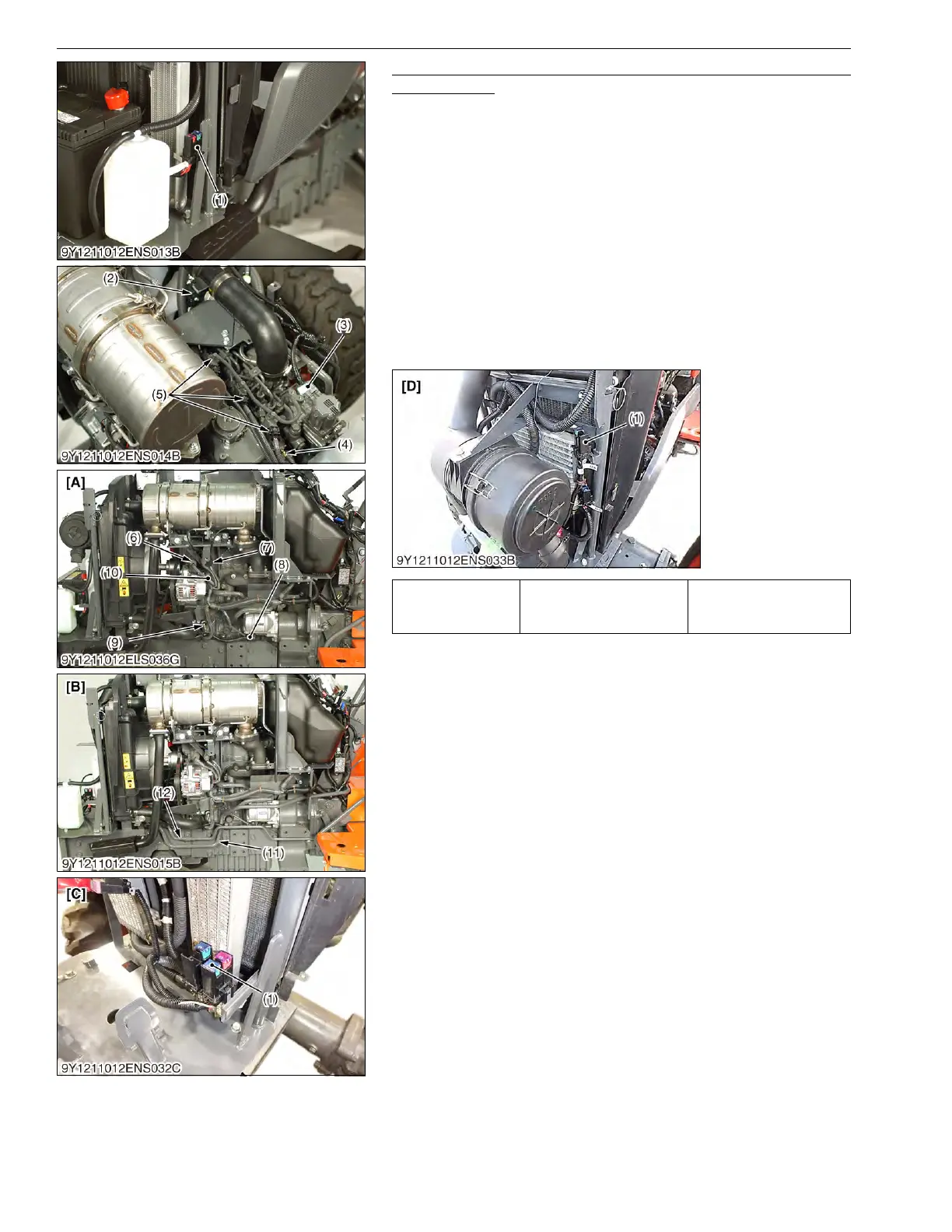

Hydraulic Pipes and Electrical Wiring (Under Fuel Tank Base
and Left Side)
1. Disconnect the connectors of injector (5).
2. Disconnect the glow plug (4).
3. Disconnect the EGR valve (3).
4. Disconnect the air flow sensor (2).
5. Disconnect the rail pressure sensor.
6. Remove the slow blow fuses (1).
7. Disconnect the positive battery cable.
8. Disconnect the water temperature sensor (6).
9. Disconnect the DPF temperature sensors (7).
10. Disconnect the alternator (10).
11. Disconnect the starter (8).
12. Disconnect the oil switch (9).
13. Remove the oil cooler return pipe (11).
14. Remove the power steering return pipe (12).
9Y1211012ENS0023US0
Tightening torque Oil cooler return pipe bolt
92 to 101 N·m
9.0 to 10.0 kgf·m
67 to 73 lbf·ft
(1) Slow Blow Fuse
(2) Air Flow Sensor
(3) EGR Valve
(4) Glow Plug
(5) Injector
(6) Water Temperature Sensor
(7) DPF Temperature Sensor
(8) Starter
(9) Oil Switch
(10) Alternator
(11) Oil Cooler Return Pipe
(12) Power Steering Return Pipe
(L3301/L3901)
[A] FW and DW Model
[B] DHW Model
[C] L3301/L3901
[D] L4701
KiSC issued 09, 2016 A
