CLUTCH
L3301, L3901, L4701, WSM
2-S11
Hydraulic Pipes, Steering Joint, and Electrical Wiring (Right
Side)
1. Remove the suction hose (1).
2. Remove the delivery pipe (3).
3. Remove the steering shaft (2).
4. Disconnect the crank shaft position sensor (9).
5. Disconnect the parking brake sensor.
6. Disconnect the fuel pump (4).
7. Disconnect the intake throttle valve (5).
8. Disconnect the rail pressure sensor (6).
9. Disconnect the supply pump (7) connector.
10. Disconnect the camshaft position sensor (8).
(When reassembling)
• Be sure that the steering joint shaft (2) does not contact with
both hydraulic pump and flywheel housing.
9Y1211012ENS0024US0
Tightening torque
Delivery pipe joint bolt
49 to 69 N·m
5.0 to 7.0 kgf·m
37 to 50 lbf·ft
Steering shaft universal
joint bolt (L3301/L3901)
23.5 to 27.4 N·m
2.4 to 2.8 kgf·m
17.3 to 20.2 lbf·ft
Steering bearing flange bolt
(L3301/L3901)
23.5 to 27.4 N·m
2.4 to 2.8 kgf·m
17.3 to 20.2 lbf·ft

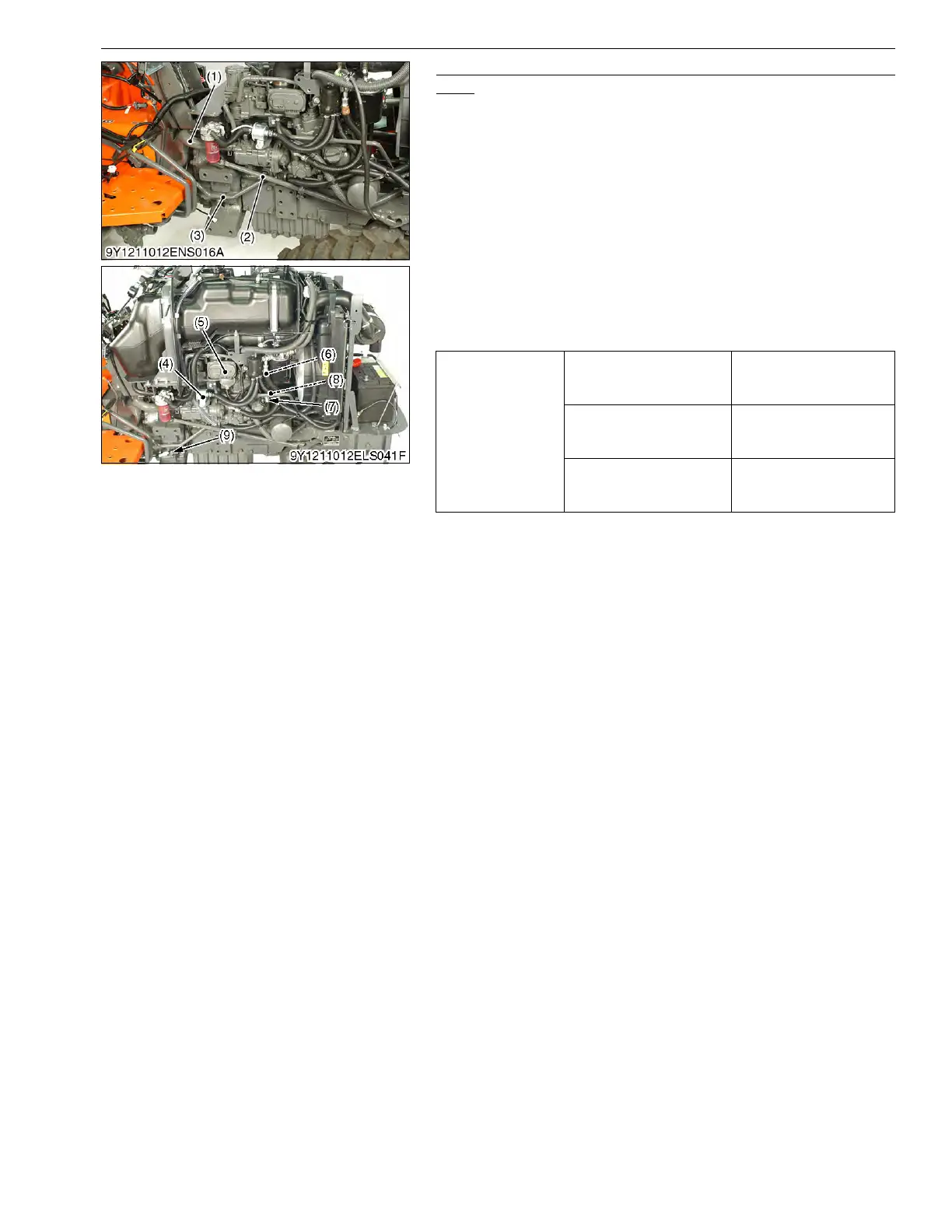

(1) Suction Hose
(2) Steering Joint Shaft (L3301/L3901)
(3) Delivery Pipe
(4) Fuel Pump
(5) Intake Throttle Valve
(6) Rail Pressure Sensor
(7) Supply Pump
(8) Camshaft Position Sensor
(9) Crank Shaft Position Sensor
KiSC issued 09, 2016 A
